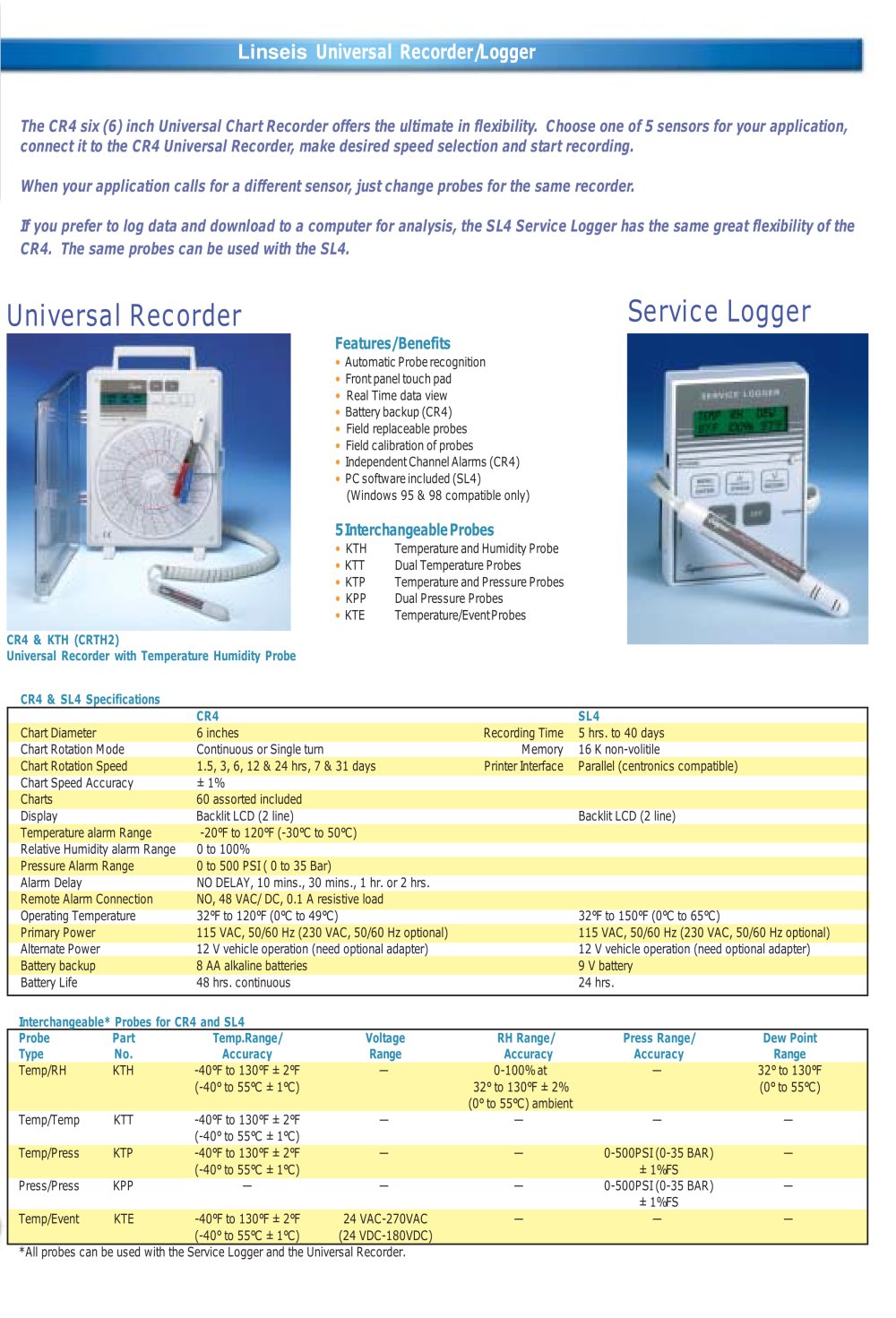

The CR4 six (6) inch Universal Chart Recorder offers the ultimate in flexibility. Choose one of 5 sensors for your application, connect it to the CR4 Universal Recorder, make desired speed selection and start recording. When your application calls for a different sensor, just change probes for the same recorder. If you prefer to log data and download to a computer for analysis, the SL4 Service Logger has the same great flexibility of the CR4. The same probes can be used with the SL4. Universal Recorder CR4 & KTH (CRTH2) Universal Recorder with Temperature Humidity Probe Service Logger Features/ Benefits • Automatic Probe recognition • Front panel touch pad • Real Time data view • Battery backup (CR4) • Field replaceable probes • Field calibration of probes • Independent Channel Alarms (CR4) • PC software included (SL4) (Windows 95 & 98 compatible only) 5 Interchangeable Probes • KTH Temperature and Humidity Probe • KTT Dual Temperature Probes • KTP Temperature and Pressure Probes • KPP Dual Pressure Probes • KTE Temperature/Event Probes CR4 & SL4 Specifications CR4 SL4 Chart Diameter 6 inches Recording Time 5 hrs. to 40 days Chart Rotation Mode Continuous or Single turn Memory 16 K non-volitile Chart Rotation Speed 1.5, 3, 6, 12 & 24 hrs, 7 & 31 days Printer Interface Parallel (centronics compatible) Chart Speed Accuracy ±1% Charts 60 assorted included Display Backlit LCD (2 line) Backlit LCD (2 line) Temperature alarm Range -20°F to 120°F (-30°C to 50°C) Relative Humidity alarm Range 0 to 100% Pressure Alarm Range 0 to 500 PSI ( 0 to 35 Bar) Alarm Delay NO DELAY, 10 mins., 30 mins., 1 hr. or 2 hrs. Remote Alarm Connection NO, 48 VAC/ DC, 0.1 A resistive load Operating Temperature 32°F to 120°F (0°C to 49°C) 32°F to 150°F (0°C to 65°C) Primary Power 115 VAC, 50/60 Hz (230 VAC, 50/60 Hz optional) 115 VAC, 50/60 Hz (230 VAC, 50/60 Hz optional) Alternate Power 12 V vehicle operation (need optional adapter) 12 V vehicle operation (need optional adapter) Battery backup 8 AA alkaline batteries 9 V battery Battery Life 48 hrs. continuous 24 hrs. Interchangeable* Probes for CR4 and SL4 Probe Part Temp.Range/ Voltage RH Range/ Press Range/ Dew Point Type No. Accuracy Range Accuracy Accuracy Range Temp/RH KTH -40°F to 130°F ±2°F — 0-100% at — 32° to 130°F (-40° to 55°C ±1°C) 32° to 130°F ±2% (0° to 55°C) (0° to 55°C) ambient Temp/Temp KTT -40°F to 130°F ±2°F — — — — (-40° to 55°C ±1°C) Temp/Press KTP -40°F to 130°F ±2°F — — 0-500PSI (0-35 BAR) — (-40° to 55°C ±1°C) ±1%FS Press/Press KPP — — — 0-500PSI (0-35 BAR) — ±1%FS Temp/Event KTE -40°F to 130°F ±2°F 24 VAC-270VAC — — — (-40° to 55°C ±1°C) (24 VDC-180VDC) *All probes can be used with the Service Logger and the Universal Recorder. Linseis UCnhiavretr Rsaelc oRredceorsrder/Logger
