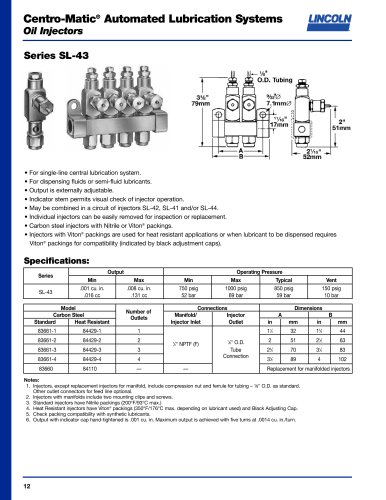

Centro-Matic® Automated Lubrication Systems LINCOLN Oil Injectors
Series SL-43
 For single-line central lubrication system.
Օ For dispensing fluids or semi-fluid lubricants.
 Output is externally adjustable.
Օ Indicator stem permits visual check of injector operation.
 May be combined in a circuit of injectors SL-42, SL-41 and/or SL-44.
Օ Individual injectors can be easily removed for inspection or replacement.
 Carbon steel injectors with Nitrile or Viton® packings.
Օ Injectors with Viton® packings are used for heat resistant applications or when lubricant to be dispensed requires Viton® packings for compatibility (indicated by black adjustment caps).
Specifications:
Series
Output
Operating
Pressure
Min
Max
Min
Max
Typical
Vent
SL-43
.001 cu. in. .016 cc
.008 cu. in. .131 cc
750 psig 52 bar
1000 psig 69 bar
850 psig
59 bar
50 psig
0 bar
Model
Number of Outlets
Connections
Dimensions
Carbon Steel
Manifold/ Injector Inlet
Injector Outlet
A
B
Standard
Heat Resistant
in
mm
in
mm
83661-1
84429-1
1
/"NPTF(F)
T O.D. Tube Connection
1/4
32
154
44
83661-2
84429-2
2
2
51
22
63
83661-3
84429-3
3
254
70
3/
83
83661-4
84429-4
4
3/
89
4
102
83660
84110
Η
Replacement for manifolded injectors
Notes:
1. Injectors, except replacement injectors for manifold, include compression nut and ferrule for tubing - 1/s" O.D. as standard. Other outlet connectors for feed line optional.
2. Injectors with manifolds include two mounting clips and screws.
3. Standard injectors have Nitrile packings (200oF/93°C max.)
4. Heat Resistant injectors have Viton® packings (350°F/176°C max. depending on lubricant used) and Black Adjusting Cap.
5. Check packing compatibility with synthetic lubricants.
6. Output with indicator cap hand-tightened is .001 cu. in. Maximum output is achieved with five turns at .0014 cu. in./turn.
