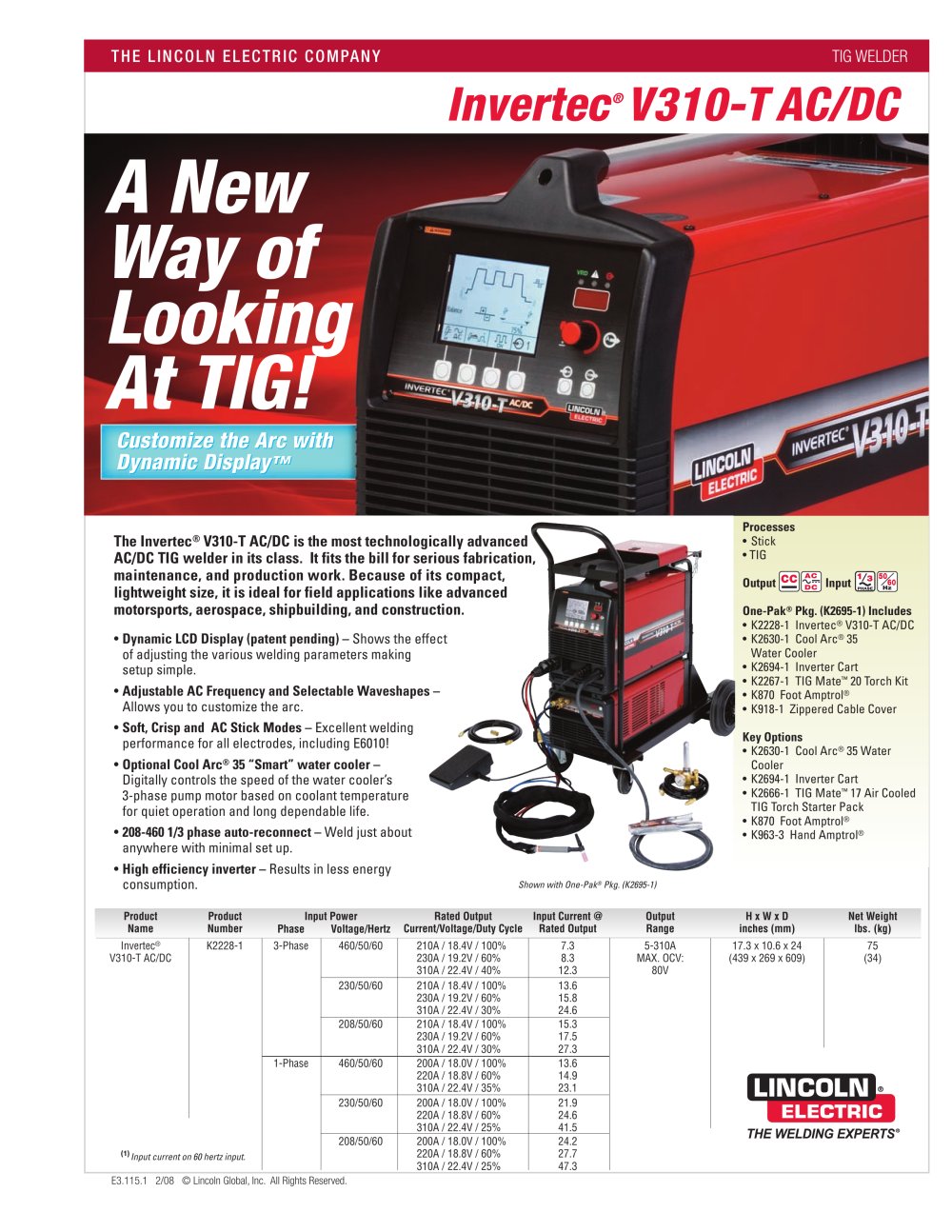

THE LINCOLN ELECTRIC COMPANY

TIG WELDER

Invertec V310-TAC/DC

ew ay of Lookin

At TIG!

The Invertec® V310-T AC/DC is the most technologically advanced AC/DC TIG welder in its class. It fits the bill for serious fabrication, maintenance, and production work. Because of its compact, lightweight size, it is idéal for field applications like advanced motorsports, aerospace, shipbuilding, and construction.

• Dynamic LCD Display (patent pending) - Shows the effect of adjusting the various welding parameters making setup simple.

• Adjustable AC Frequency and Selectable Waveshapes -

Allows you to customize the arc.

• Soft, Crisp and AC Stick Modes - Excellent welding performance for all électrodes, including E6010!

• Optional Cool Arc® 35 "Smart" water cooler -

Digitally controls the speed of the water cooler's 3-phase pump motor based on coolanttemperature for quiet operation and long dependable life.

• 208-4601/3 phase auto-reconnect-Weld just about anywhere with minimal set up.

Processes • Stick •TIG

Output (^gS Input(4

⁵/eo

[ Hz

One-Pak® Pkg. (K2695-1) Includes

• K2228-1 Invertec® V310-T AC/DC

• K2630-1 Cool Arc® 35 Water Cooler

• K2694-1 Inverter Cart

• K2267-1 TIG Mate™ 20 Torch Kit

• K870 FootAmptrol®

• K918-1 Zippered Cable Cover

Key Options

• K2630-1 Cool Arc® 35 Water

Cooler

• K2694-1 Inverter Cart

• K2666-1 TIG Mate™ 17 Air Cooled TIG Torch Starter Pack

• K870 FootAmptrol^®

• K963-3 Hand Amptrol®

• High efficiency inventer - Results in less energy consumption.

Shown with One-Pak® Pkg. (K2695-1)

Product Name

Product Number

Input Power Rated Output

Phase Voltage/Hertz Current/Voltage/Duty Cycle

Input Current @ Rated Output

Output Range

HxWxD inches (mm)

Net Weight lbs.(kg)

Invertec® V310-T AC/DC

K2228-1

3-Phase


460/50/60	210A/ 18.4V/100%	7.3
	230A/19.2V/60%	8.3
	310A/22.4V/40%	12.3
230/50/60	210A/18.4V/100%	13.6
	230A/19.2V/60%	15.8
	310A/22.4V/30%	24.6
208/50/60	210A/18.4V/100%	15.3
	230A/19.2V/60%	17.5
	310A/22.4V/30%	27.3
460/50/60	200A/18.0V/100%	13.6
	220A/18.8V/60%	14.9
	310A/22.4V/35%	23.1
230/50/60	200A/18.0V/100%	21.9
	220A/18.8V/60%	24.6
	310A/22.4V/25%	41.5
208/50/60	200A/18.0V/100%	24.2
	220A/18.8V/60%	27.7
	310A /22.4V/25%	47.3

5-310A

MAX. OCV:

80V

17.3x10.6x24 (439 x 269 x 609)

(34)

1-Phase

⁽¹⁾ Input current on 60 hertz input.

THE WELDING EXPERTS'
