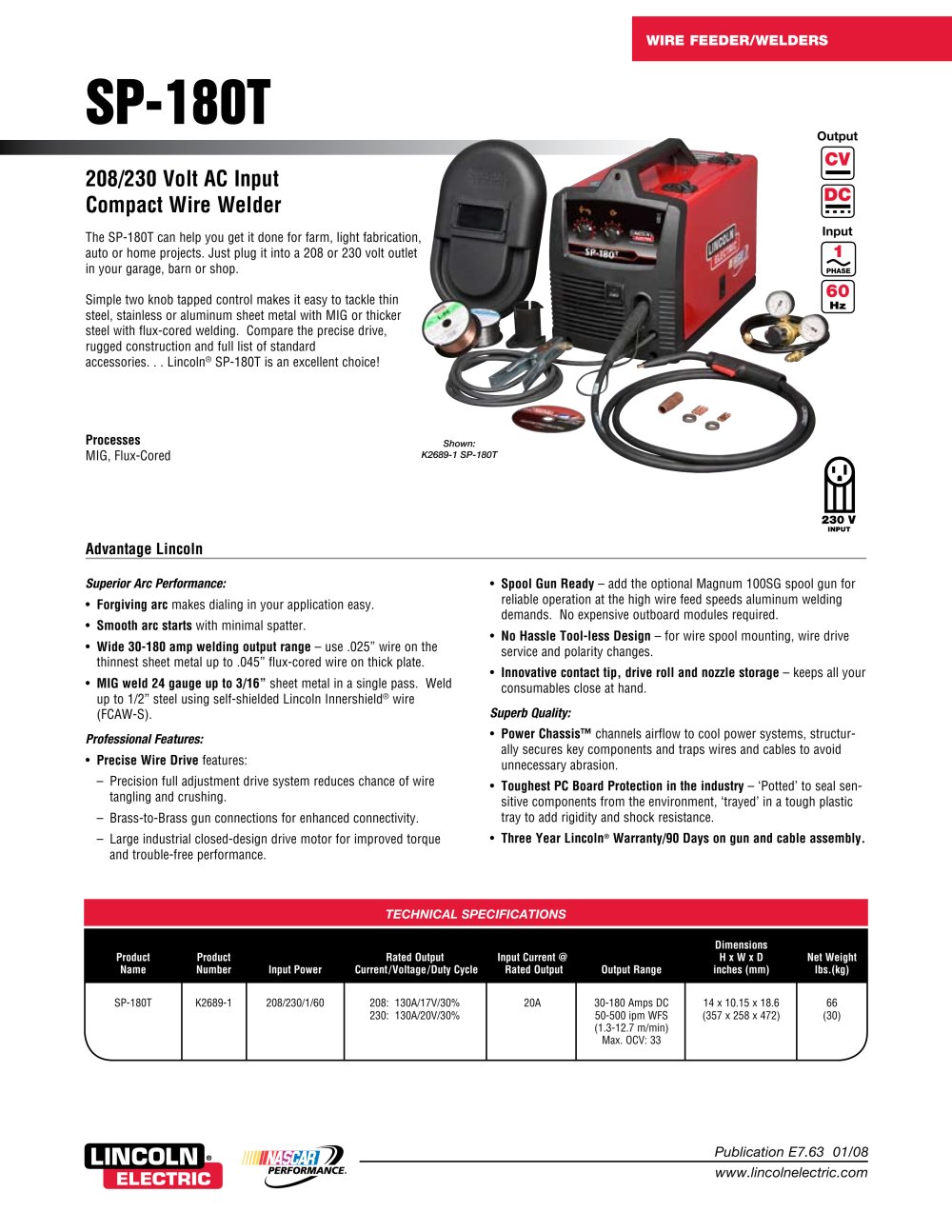

SP-180T - Lincoln Electric - #1

Text version of the page

208/230 Volt AC Input Compact Wire Welder The SP-180T can help you get it done for farm, light fabrication, auto or home projects. Just plug it into a 208 or 230 volt outlet in your garage, barn or shop. Simple two knob tapped control makes it easy to tackle thin steel, stainless or aluminum sheet metal with MIG or thicker steel with flux-cored welding. Compare the precise drive, rugged construction and full list of standard accessories. . . Lincoln® SP-180T is an excellent choice! Processes MIG, Flux-Cored WIRE FEEDER/WELDERS CV DC 1 60 Hz Publication E7.63 01/08 www.lincolnelectric.com Advantage Lincoln SP-180T Output Input Superior Arc Performance: • Forgiving arc makes dialing in your application easy. • Smooth arc starts with minimal spatter. • Wide 30-180 amp welding output range – use .025” wire on the thinnest sheet metal up to .045” flux-cored wire on thick plate. • MIG weld 24 gauge up to 3/16” sheet metal in a single pass. Weld up to 1/2” steel using self-shielded Lincoln Innershield® wire (FCAW-S). Professional Features: • Precise Wire Drive features: – Precision full adjustment drive system reduces chance of wire tangling and crushing. – Brass-to-Brass gun connections for enhanced connectivity. – Large industrial closed-design drive motor for improved torque and trouble-free performance. • Spool Gun Ready – add the optional Magnum 100SG spool gun for reliable operation at the high wire feed speeds aluminum welding demands. No expensive outboard modules required. • No Hassle Tool-less Design – for wire spool mounting, wire drive service and polarity changes. • Innovative contact tip, drive roll and nozzle storage – keeps all your consumables close at hand. Superb Quality: • Power Chassis™ channels airflow to cool power systems, structurally secures key components and traps wires and cables to avoid unnecessary abrasion. • Toughest PC Board Protection in the industry – ‘Potted’ to seal sensitive components from the environment, ‘trayed’ in a tough plastic tray to add rigidity and shock resistance. • Three Year Lincoln® Warranty/90 Days on gun and cable assembly. Shown: K2689-1 SP-180T Dimensions Product Product Rated Output Input Current @ H x W x D Net Weight Name Number Input Power Current/Voltage/Duty Cycle Rated Output Output Range inches (mm) lbs.(kg) SP-180T K2689-1 208/230/1/60 208: 130A/17V/30% 20A 30-180 Amps DC 14 x 10.15 x 18.6 66 230: 130A/20V/30% 50-500 ipm WFS (357 x 258 x 472) (30) (1.3-12.7 m/min) Max. OCV: 33 Technical Specifications
