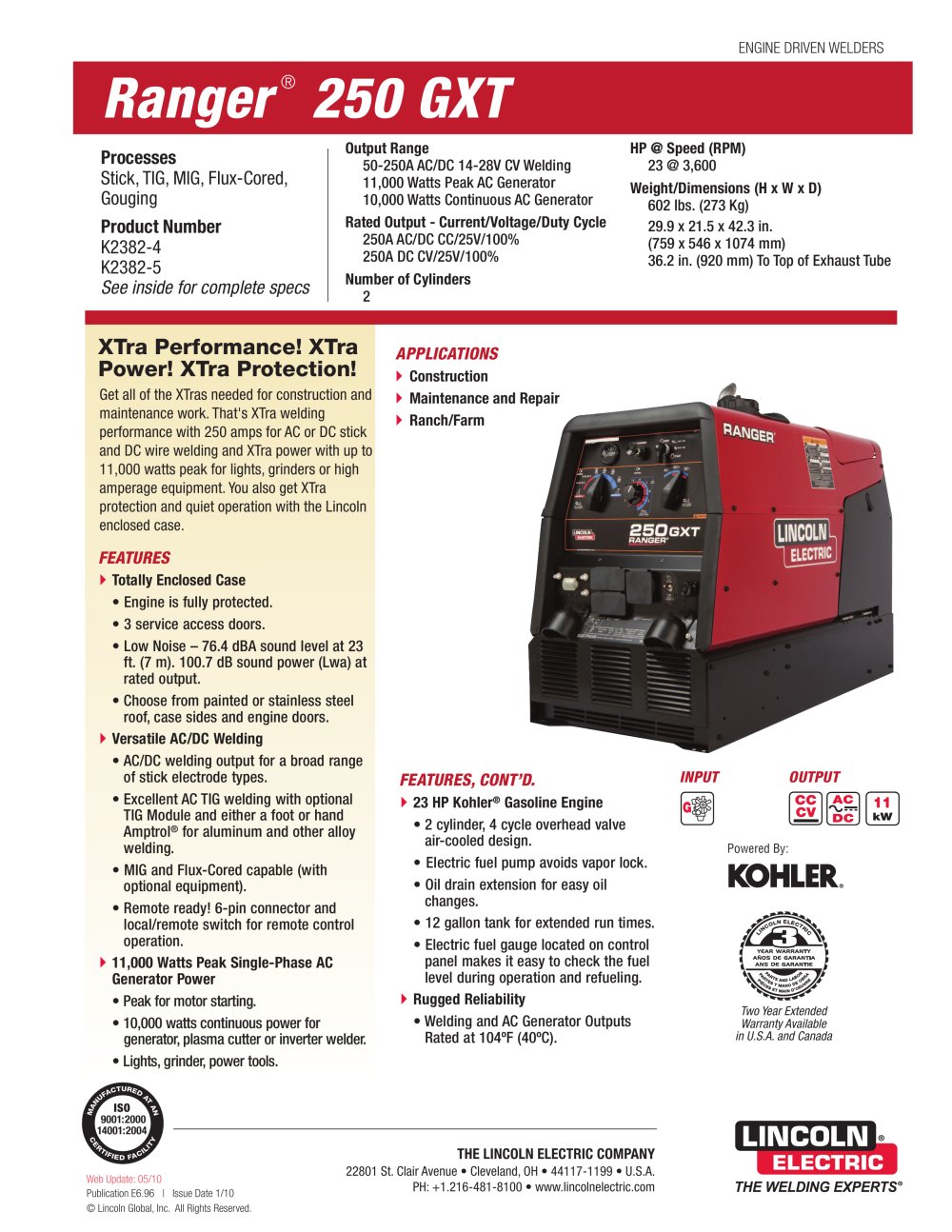

Publication E6.96 | Issue Date 1/10 © Lincoln Global, Inc. All Rights Reserved. ENGINE DRIVEN WELDERS Processes Stick, TIG, MIG, Flux-Cored, Gouging Product Number K2382-4 K2382-5 See inside for complete specs Output Range 50-250A AC/DC 14-28V CV Welding 11,000 Watts Peak AC Generator 10,000 Watts Continuous AC Generator Rated Output - Current/Voltage/Duty Cycle 250A AC/DC CC/25V/100% 250A DC CV/25V/100% Number of Cylinders 2 HP @ Speed (RPM) 23 @ 3,600 Weight/Dimensions (H x W x D) 602 lbs. (273 Kg) 29.9 x 21.5 x 42.3 in. (759 x 546 x 1074 mm) 36.2 in. (920 mm) To Top of Exhaust Tube INPUT OUTPUT LINCOLN ELECTRIC ISO 9001:2000 14001:2004 XTra Performance! XTra Power! XTra Protection! Get all of the XTras needed for construction and maintenance work. That's XTra welding performance with 250 amps for AC or DC stick and DC wire welding and XTra power with up to 11,000 watts peak for lights, grinders or high amperage equipment. You also get XTra protection and quiet operation with the Lincoln enclosed case. FEATURES Totally Enclosed Case • Engine is fully protected. • 3 service access doors. • Low Noise – 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output. • Choose from painted or stainless steel roof, case sides and engine doors. Versatile AC/DC Welding • AC/DC welding output for a broad range of stick electrode types. • Excellent AC TIG welding with optional TIG Module and either a foot or hand Amptrol® for aluminum and other alloy welding. • MIG and Flux-Cored capable (with optional equipment). • Remote ready! 6-pin connector and local/remote switch for remote control operation. 11,000 Watts Peak Single-Phase AC Generator Power • Peak for motor starting. • 10,000 watts continuous power for generator, plasma cutter or inverter welder. • Lights, grinder, power tools. THE LINCOLN ELECTRIC COMPANY 22801 St. Clair Avenue • Cleveland, OH • 44117-1199 • U.S.A. PH: +1.216-481-8100 • www.lincolnelectric.com Two Year Extended Warranty Available in U.S.A. and Canada Powered By: APPLICATIONS Construction Maintenance and Repair Ranch/Farm FEATURES, CONT’D. 23 HP Kohler® Gasoline Engine • 2 cylinder, 4 cycle overhead valve air-cooled design. • Electric fuel pump avoids vapor lock. • Oil drain extension for easy oil changes. • 12 gallon tank for extended run times. • Electric fuel gauge located on control panel makes it easy to check the fuel level during operation and refueling. Rugged Reliability • Welding and AC Generator Outputs Rated at 104ºF (40ºC). Ranger ® 250 GXT Web Update: 05/10

Open the catalog to page 1

• XTra Protection! Engine door provides machine protection and easy service access. • Kohler® Command® 23 HP CH23S OHV Gasoline Engine. • Noise at rated load: - 100.7 dB sound power (Lwa) - 76.4 dBA sound level at 23 ft. (7 m) • Remote ready! 6-pin connector and local/remote switch for remote control operation. Also for AC/DC TIG Module use with foot or hand Amptrol®. • 12 gallon (45 Ltrs) fuel capacity allows you to run an extended day. • Circuit breaker on the 12V battery circuit provides added component protection. • Convenient truck or trailer mounting with front and rear holes in base....

Open the catalog to page 2

Ranger® 250 GXT | [ 3 ] 1. Electric Fuel Gauge and Engine Hour Meter 2. 6 Position Output Range Selector 3. Circuit Breakers 4. 120 Volt AC Receptacles (NEMA 5-20R) 5. Output stud covers 6. Ground Stud 7. 120/240 Volt AC Full KVA Receptacle (NEMA 14-50R) 8. 6-Pin Remote Connector 9. Local/Remote Switch 10. Polarity Switch 11. Fine Output Control 12. Engine Choke Control (Stainless Steel Cable) 13. Engine Start Switch with Idler Control 1. 2. 3. 4. 7. 9. 8. 10. 11. 12. 13. • Oil dip stick, filters, spark plugs, etc. are easily accessed with left, right and top engine doors. Left and right...

Open the catalog to page 3

[ 4 ] | Ranger® 250 GXT MACHINE SPECIFICATIONS Product Name Ordering Information Description CC Rated Output Current/Voltage/ Duty Cycle CV-Rated Output Current/Voltage/ Duty Cycle Generator AC Power (2)(3) Dimensions H x W x L inches (mm) Weight lbs. (kg) Ranger® 250 GXT (Kohler OHV) K2382-4 Painted Roof, Case Sides and Engine Doors K2382-5 Stainless Steel Roof, Case Sides, and Engine Doors 250 Amp AC/DC Arc Welder 11,000 Watts Peak 10,000 Watts Continuous AC Power AC Constant Current 250A/25V/100% DC Constant Current 250A/25V/100% Current Ranges 160-250A 110-180A 70-130A 50-80A Max OCV @...

Open the catalog to page 4

GENERAL OPTIONS Power Plug Kit (20 amp) Provides four 120V plugs rated at 20 amps each, and one dual voltage, full KVA plug rated at 120/240V, 50 amps. 120V plug may not be compatible with common household receptacles. Order K802N Full-KVA Power Plug One dual voltage plug rated at 120/240V, 50 amps. (NEMA 14-50P) Order T12153-9 GFCI Receptacle Kit Includes one UL approved 120V ground fault circuit interrupter duplex type receptacle and installation instructions. Replaces the factory-installed 120V duplex receptacle. Each receptacle of the GFCI duplex is rated at 20 amps. Maximum total...

Open the catalog to page 5

WIRE FEEDER OPTIONS LN-25 PRO Wire Feeder Portable CC/CV unit for flux-cored and MIG welding with MAXTRAC® wire drive system. Includes gas solenoid and internal contactor. Order K2613-1 Magnum® 350 Innershield® Gun (for LN-25 PRO) For self-shielded wire with 15 ft. (4.5 m) cable. For .062-3/32” (1.6-2.4 mm) wire. Order K126-2 Drive Roll and Guide Tube Kit (for LN-25 PRO) For cored or solid steel wire. Order KP1697-068 for .068-.072” (1.8 mm) Order KP1697-5/64 for 5/64” (2.0 mm) Magnum® 300 MIG Gun (for LN-25 PRO) For .035-.045” (0.9-1.2 mm) gasshielded wire with 15 ft. (4.5 m) cable. Order...
