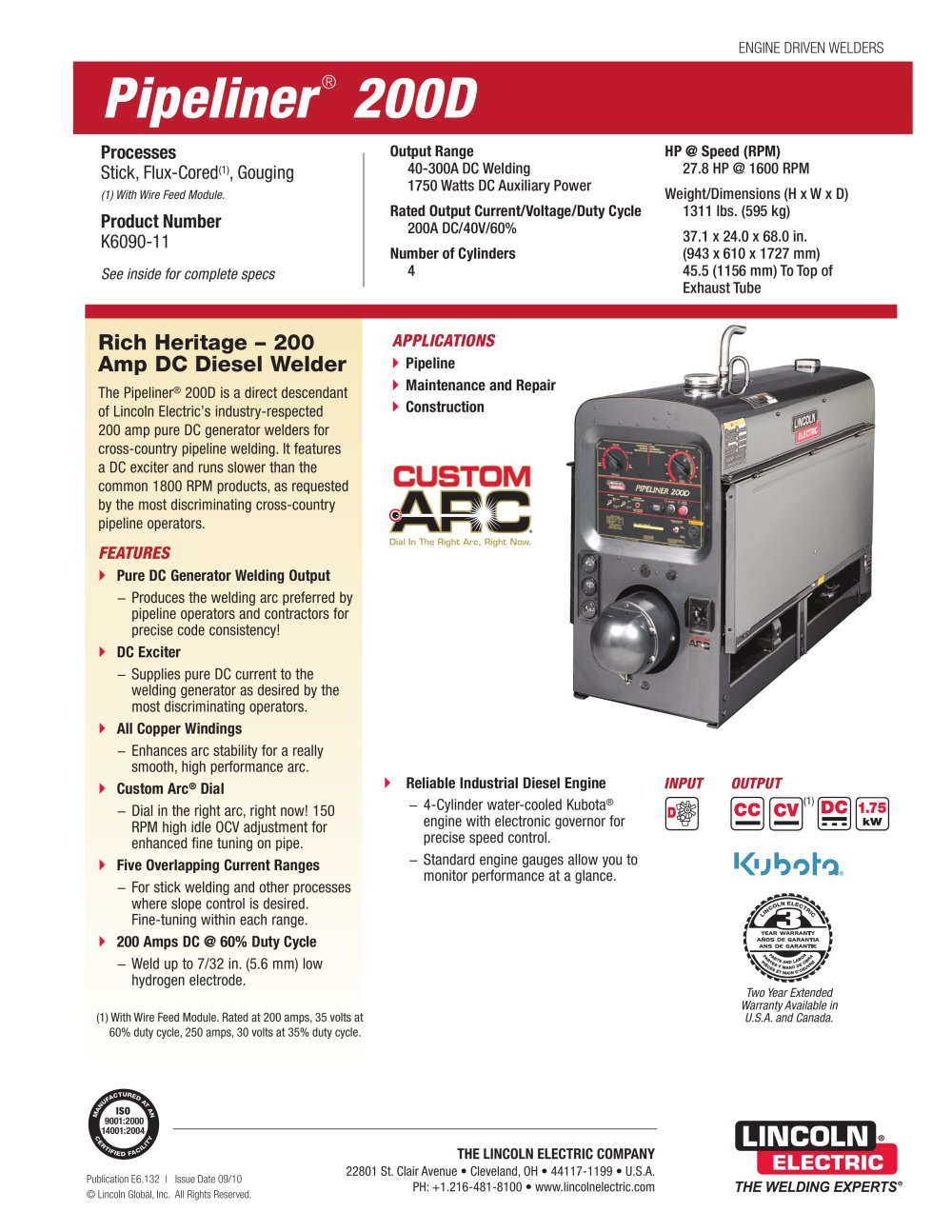

OUTPUT (1) ® Publication E6.132 | Issue D ate 09/10 © Lincoln Global, Inc. All Rights Reserved. Pipeliner ® 200D ENGINE DRIVEN WELDERS Processes Stick, Flux-Cored(1), Gouging (1) With Wire Feed Module. Product Number K6090-11 See inside for complete specs INPUT ISO 9001:2000 14001:2004 Rich Heritage – 200 Amp DC Diesel Welder The Pipeliner® 200D is a direct descendant of Lincoln Electric’s industry-respected 200 amp pure DC generator welders for cross-country pipeline welding. It features a DC exciter and runs slower than the common 1800 RPM products, as requested by the most discriminating cross-country pipeline operators. FEATURES ƒí Pure DC Generator Welding Output - Produces the welding arc preferred by pipeline operators and contractors for precise code consistency! ƒí DC Exciter - Supplies pure DC current to the welding generator as desired by the most discriminating operators. ƒí All Copper Windings - Enhances arc stability for a really smooth, high performance arc. ƒí Custom Arc® Dial - Dial in the right arc, right now! 150 RPM high idle OCV adjustment for enhanced fine tuning on pipe. ƒí Five Overlapping Current Ranges - For stick welding and other processes where slope control is desired. Fine-tuning within each range. ƒí 200 Amps DC @ 60% Duty Cycle - Weld up to 7/32 in. (5.6 mm) low hydrogen electrode. ƒí Reliable Industrial Diesel Engine - 4-Cylinder water-cooled Kubota® engine with electronic governor for precise speed control. - Standard engine gauges allow you to monitor performance at a glance. APPLICATIONS ƒí Pipeline ƒí Maintenance and Repair ƒí Construction THE LINCOLN ELECTRIC COMPANY 22801 St. Clair Avenue • Cleveland, OH • 44117-1199 • U.S.A. PH: +1.216-481-8100 • www.lincolnelectric.com Output Range 40-300A DC Welding 1750 Watts DC Auxiliary Power Rated Output Current/Voltage/Duty Cycle 200A DC/40V/60% Number of Cylinders 4 HP @ Speed (RPM) 27.8 HP @ 1600 RPM Weight/Dimensions (H x W x D) 1311 lbs. (595 kg) 37.1 x 24.0 x 68.0 in. (943 x 610 x 1727 mm) 45.5 (1156 mm) To Top of Exhaust Tube LINCOLN ELECTRIC Two Year Extended Warranty Available in (1) With Wire Feed Module. Rated at 200 amps, 35 volts at U.S.A. and Canada. 60% duty cycle, 250 amps, 30 volts at 35% duty cycle.

Open the catalog to page 1

[ 2 ] | Pipeliner® 200D PERFORMANCE • Noise at 200A/40V rated output: 97.9 dB sound power (Lwa), 73.6 dBA at 23 ft. (7.0 m). • Gauges indicate oil pressure, engine temperature and battery charging amps. • Single-side engine access for easy routine maintenance. • Oil drain system is standard. Includes ball valve and hose to direct oil beyond the base of the machine. • Compact size for installation on truck beds. • Local/Remote switch and remote receptacle are factory installed to allow easy connection of the optional remote control. Stick Welding • Optional K924-4 Remote Control Kit for...

Open the catalog to page 2

Pipeliner® 200D | [ 3 ] • Engine hour meter to track scheduled maintenance. • Automatic engine shutdown protection for low oil pressure or high water temperature. • Electronic engine idler extends engine life and reduces fuel consumption. • Attractive and durable pearlescent gray finish paint. • Manufactured under a quality system certified to ISO 9001 requirements and ISO 14001 environmental standards. • Three-year Lincoln Electric warranty on welder. (Engine is warranted separately by the manufacturer). QUALITY AND RELIABILITY MACHINE SPECIFICATIONS Product Name Ordering Information...

Open the catalog to page 3

GENERAL OPTIONS Spark Arrestor Kit Attaches to muffler exhust tube. Virtually eliminates spark emissions. Order K903-1 Medium Welder Trailer For heavy-duty road, off-road, plant and yard use. Includes pivoting jack stand, safety chains, and 13 in. wheels. Stiff .120 in. welded rectangular steel tube frame construction is phosphate etched and powder coat painted for superior rust and corrosion resistance. Low sway suspension gives outstanding stability with manageable tongue weight. Wheel bearings are packed with high viscosity, high pressure, low washout Lubriplate® grease. Includes a...
