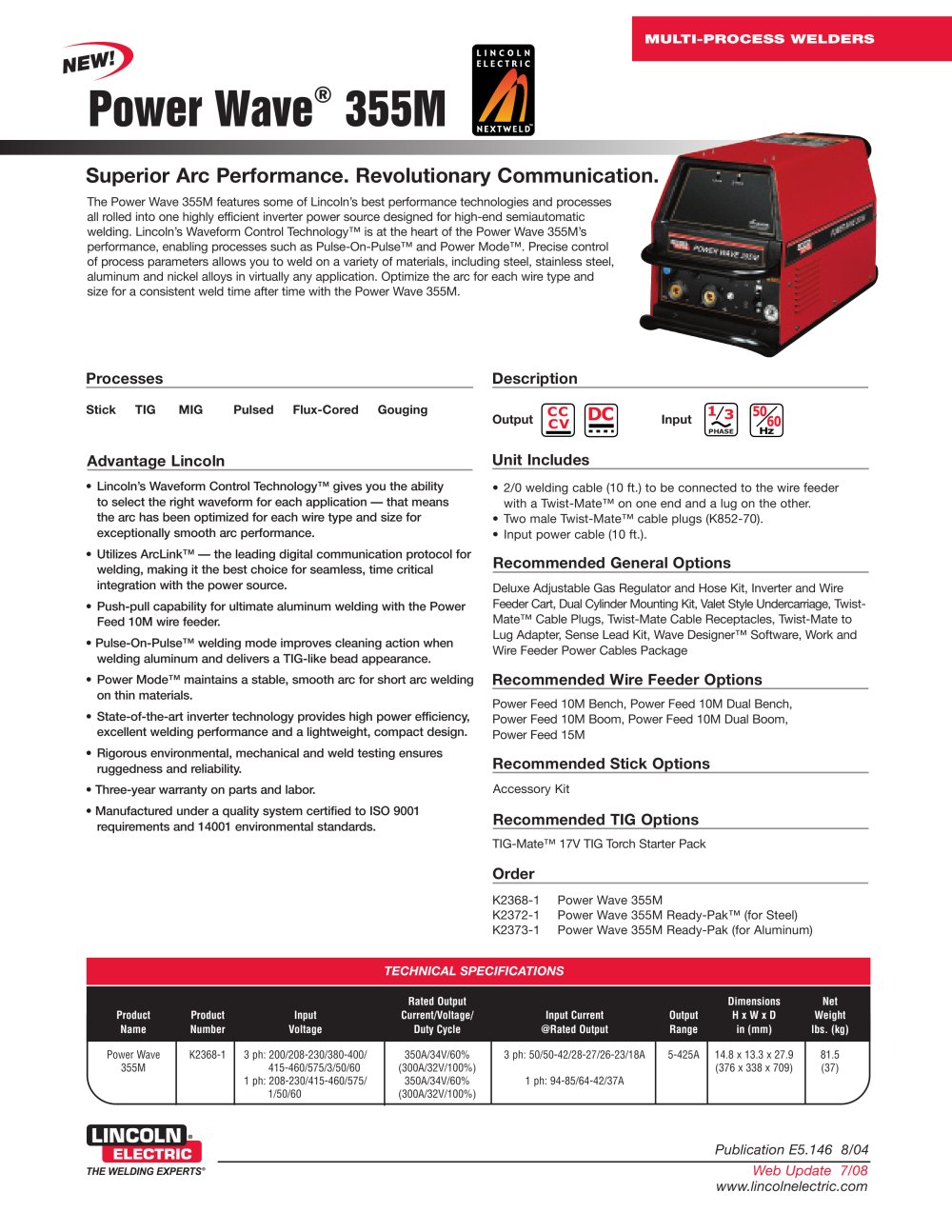

Multi-Process Welders featuring Waveform Control Technology™ (Wire Feeder sold separately) Power Wave® 355M - Lincoln Electric - (Version JPG) - PDF Catalogue | Technical Documentation

See other catalogues for Lincoln Electric

Auto-darkening helmet, Cutting machine, Robotic cell, Plasma torch, Safety glasses

Text version of the page

MULTI-PROCESS WELDERS

Wave® 355M

Power

Superior Arc Performance. Revolutionary Communication.

The Power Wave 355M features some of Lincoln's best performance technologies and processes all rolled into one highly efficient inverter power source designed for high-end semiautomatic welding. Lincoln's Waveform Control Technology™ is at the heart of the Power Wave 355M's performance, enabling processes such as Pulse-On-Pulse™ and Power Mode™. Precise control of process parameters allows you to weld on a variety of materials, including steel, stainless steel, aluminum and nickel alloys in virtually any application. Optimize the arc for each wire type and size for a consistent weld time after time with the Power Wave 355M.

Processes

Description

Stick TIG MIG

Pulsed Flux-Cored Gouging

/60

CC CV

Output

Input

phase

Advantage Lincoln Unit Includes

• Lincoln's Waveform Control Technology™ gives you the ability • 2/0 welding cable (10 ft.) to be connected to the wire feeder to select the right waveform for each application — that means with a Twist-Mate™ on one end and a lug on the other.

the arc has been optimized for each wire type and size for • Two male Twist-Mate™ cable plugs (K852-70).

exceptionally smooth arc performance. • Input power cable (10 ft.).

• Utilizes ArcLink™ — the leading digital communication protocol for _ _ welding, making it the best choice for seamless, time critical ^Recommended ^Genei"al °^ptiOn^s

^integration ^with ^the ^power ^source. Deluxe Adjustable Gas Regulator and Hose Kit, Inverter and Wire

• Push-pull capability for ultimate aluminum welding with the Power Feeder Cart, Dual Cylinder Mounting Kit, Valet Style Undercarriage, Twist-F_eed 10M wire f_eed_er. Mate™ Cable Plugs, Twist-Mate Cable Receptacles, Twist-Mate to

Lug Adapter, Sense Lead Kit, Wave Designer™ Software, Work and

• Pulse-On-Pulse™ welding mode improves cleaning action when .... _ _

Wire Feeder Power Cables Package

welding aluminum and delivers a TIG-like bead appearance.

• Power Mode™ maintains a stable, smooth arc for short arc welding Recommended Wire Feeder Options

on thin materials.

Power Feed 10M Bench, Power Feed 10M Dual Bench,

• State-of-the-art inverter technology provides high power efficiency, Power Feed 10M Boom, Power Feed 10M Dual Boom, excellent welding performance and a lightweight, compact design. _Power _Feed _15M

• Rigorous environmental, mechanical and weld testing ensures

ruggedness and reliability. ^Recommended S^Clk ^Options

• Three-year warranty on parts and labor. Accessory Kit

• Manufactured under a quality system certified to ISO 9001 _ _ requirements and 14001 environmental standards. ^Recommended T^|G °^pti°n^s

TIG-Mate™ 17V TIG Torch Starter Pack

Order

K2368-1 Power Wave 355M

K2372-1 Power Wave 355M Ready-Pak™ (for Steel) K2373-1 Power Wave 355M Ready-Pak (for Aluminum)

TECHNICAL SPECIFI



Product Name	Product Number	Input Voltage	Rated Output Current/Voltage/ Duty Cycle	Input Current @Rated Output	Output Range	Dimensions HxWxD in (mm)	Net Weight lbs. (kg)
Power Wave 355M V	K2368-1	3 ph: 200/208-230/380-400/ 415-460/575/3/50/60 1 ph: 208-230/415-460/575/ 1/50/60	350A/34V/60% (300A/32V/100%) 350A/34V/60% (300A/32V/100%)	3 ph: 50/50-42/28-27/26-23/18A 1 ph: 94-85/64-42/37A	5-425A	14.8x13.3x27.9 (376 x 338 x 709)	81.5 (37) J

I W • I ■ l" Bp

Publication E5.146 8/04

Web Update 7/08 www.lincolnelectric.com
