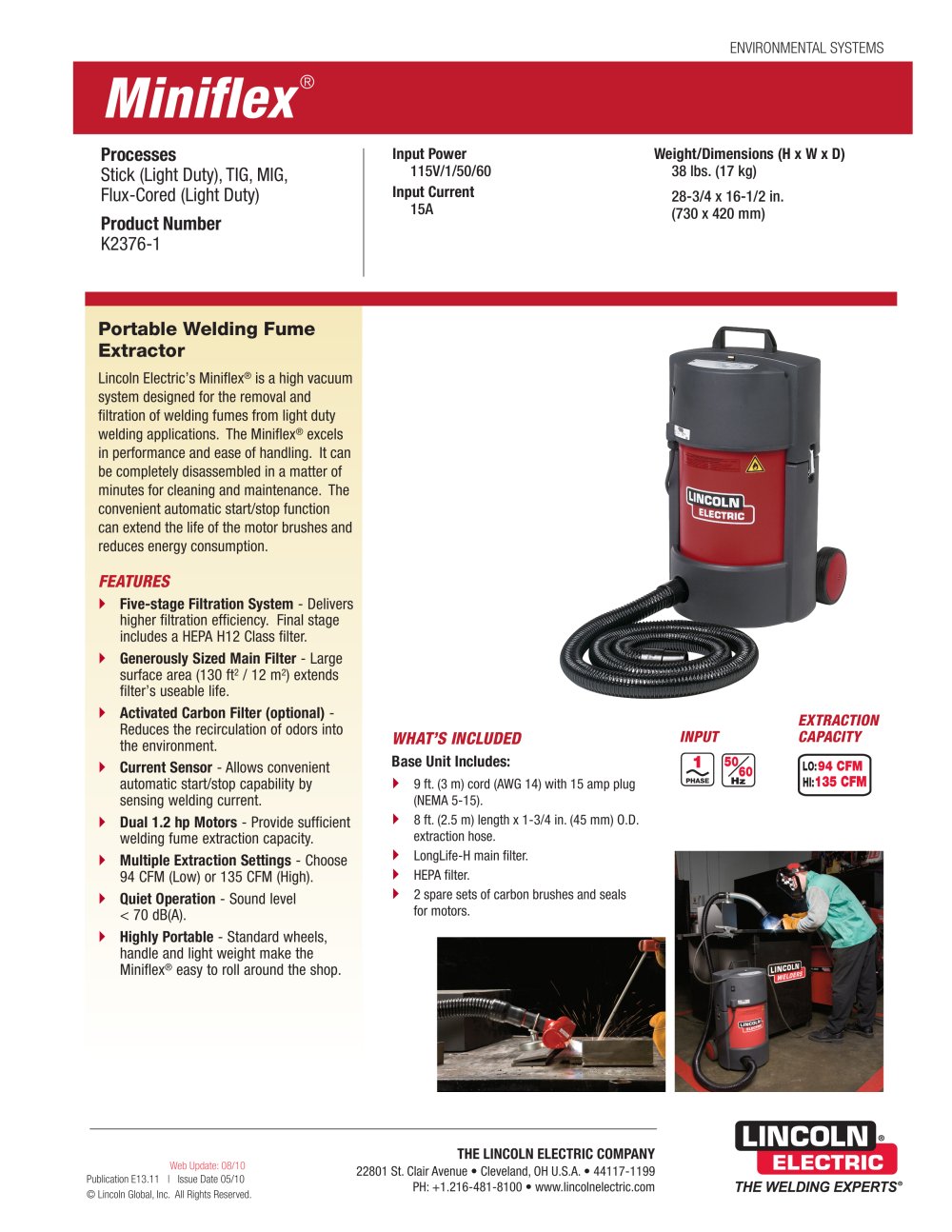

Publication E13.11 | Issue D ate 05/10 © Lincoln Global, Inc. All Rights Reserved. Miniflex® ENVIRONMENTAL SYSTEMS Processes Stick (Light Duty), TIG, MIG, Flux-Cored (Light Duty) Product Number K2376-1 Input Power 115V/1/50/60 Input Current 15A Weight/Dimensions (H x W x D) 38 lbs. (17 kg) 28-3/4 x 16-1/2 in. (730 x 420 mm) INPUT EXTRACTION CAPACITY Portable Welding Fume Extractor Lincoln Electric’s Miniflex® is a high vacuum system designed for the removal and filtration of welding fumes from light duty welding applications. The Miniflex® excels in performance and ease of handling. It can be completely disassembled in a matter of minutes for cleaning and maintenance. The convenient automatic start/stop function can extend the life of the motor brushes and reduces energy consumption. FEATURES ƒí Five-stage Filtration System - Delivers higher filtration efficiency. Final stage includes a HEPA H12 Class filter. ƒí Generously Sized Main Filter - Large surface area (130 ft2 / 12 m2) extends filter’s useable life. ƒí Activated Carbon Filter (optional) - Reduces the recirculation of odors into the environment. ƒí Current Sensor - Allows convenient automatic start/stop capability by sensing welding current. ƒí Dual 1.2 hp Motors - Provide sufficient welding fume extraction capacity. ƒí Multiple Extraction Settings - Choose 94 CFM (Low) or 135 CFM (High). ƒí Quiet Operation - Sound level < 70 dB(A). ƒí Highly Portable - Standard wheels, handle and light weight make the Miniflex® easy to roll around the shop. WHAT’S INCLUDED Base Unit Includes: ƒí 9 ft. (3 m) cord (AWG 14) with 15 amp plug (NEMA 5-15). ƒí 8 ft. (2.5 m) length x 1-3/4 in. (45 mm) O.D. extraction hose. ƒí LongLife-H main filter. ƒí HEPA filter. ƒí 2 spare sets of carbon brushes and seals for motors. THE LINCOLN ELECTRIC COMPANY 22801 St. Clair Avenue • Cleveland, OH U.S.A. • 44117-1199 PH: +1.216-481-8100 • www.lincolnelectric.com Web Update: 08/10

Open the catalog to page 1

[ 2 ] | Miniflex® A CLOSER LOOK Weight and Design The Miniflex® is constructed from synthetic materials, making it light-weight (38 lbs./17kg) and impact resistant. Wheels and a carrying handle, which are standard on the Miniflex®, increase the portability of the unit. These features are typically not found on competitive models. Five-Stage Filtration Process The Miniflex® has a five-stage filtration process. In stage one, as the air enters the system through an intake connection, it passes through a removable and washable metal pre-filter in which heavier particles and foreign material are...

Open the catalog to page 2

Miniflex® | [ 3 ] RECOMMENDED ACCESSORIES TO EXPAND MACHINE CAPABILITIES GENERAL OPTIONS EN 20 Extraction Nozzle The EN 20 nozzle is designed for a wide array of welding applications. With its funnel extraction opening and magnetic mounting stand, it gives the welder a greater amount of versatility. Order K2389-5 EN 40 Extraction Nozzle The EN 40 nozzle is designed for stick electrode applications. With its L-shaped tube and an elongated slotted opening, the EN 40 nozzle is designed to coincide with the time it takes the welder to use one stick electrode. This design alleviates the welder...

Open the catalog to page 3

Product Name Product Number Input Power Voltage/Phase/Hertz Input Current H x W x D inches (mm) Net Weight lbs. (kg) Miniflex® K2376-1 115/1/50/60 15A 28-3/4 x 16-1/2 (730 x 420) 38 (17) C U S T O M E R A S S I S T A N C E P O L I C Y The business of The Lincoln Electric Company is manufacturing and selling high quality welding equipment, consumables, and cutting equipment. Our challenge is to meet the needs of our customers and to exceed their expectations. On occasion, purchasers may ask Lincoln Electric for information or advice about their use of our products. Our employees respond to...
