Magnum Self-Shielded Arc Welding Guns
2Pages

{{requestButtons}}

Catalog excerpts

Magnum Self-Shielded Arc Welding Guns - 1

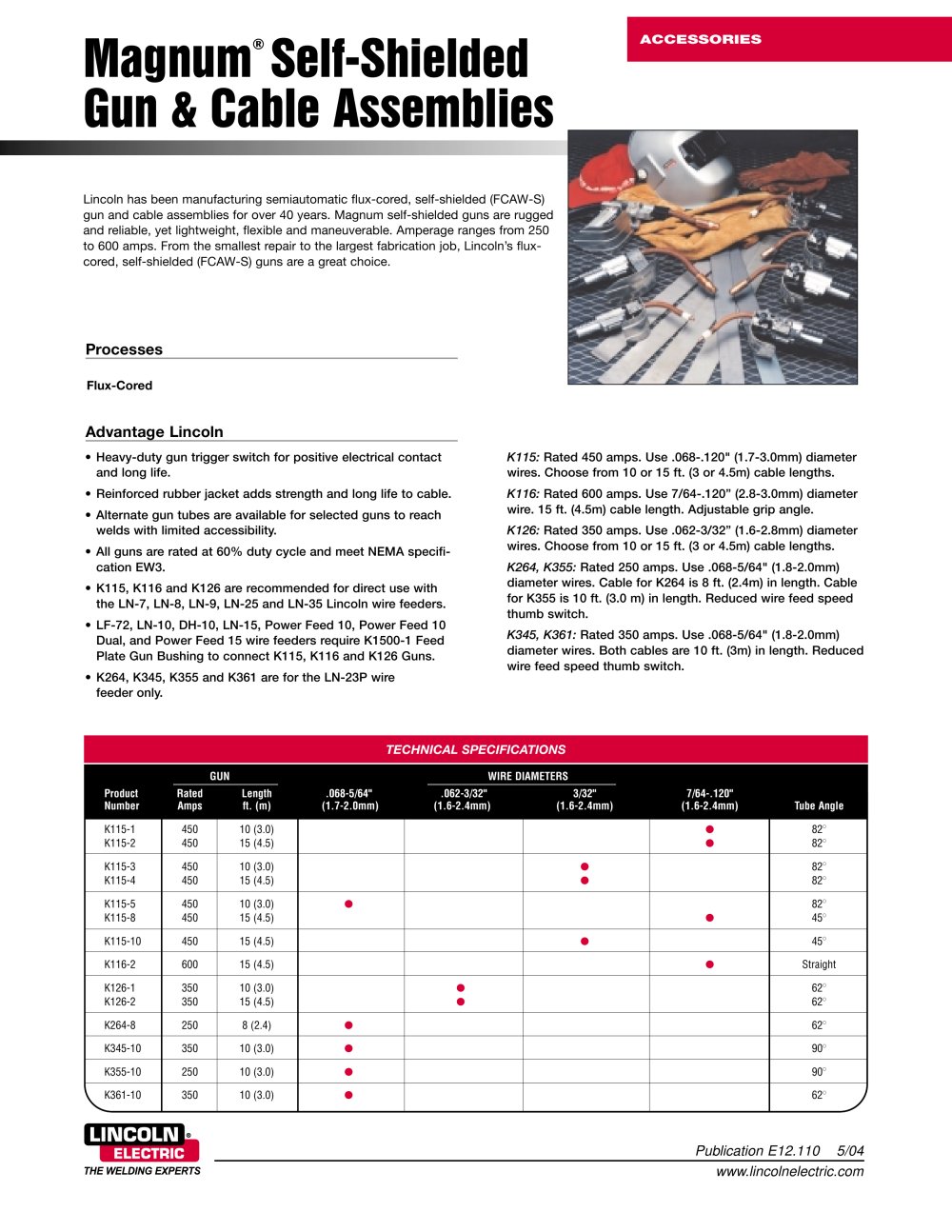

Flux-Cored Magnum® Self-Shielded Gun & Cable Assemblies ACCESSORIES Processes Advantage Lincoln • Heavy-duty gun trigger switch for positive electrical contact and long life. • Reinforced rubber jacket adds strength and long life to cable. • Alternate gun tubes are available for selected guns to reach welds with limited accessibility. • All guns are rated at 60% duty cycle and meet NEMA specification EW3. • K115, K116 and K126 are recommended for direct use with the LN-7, LN-8, LN-9, LN-25 and LN-35 Lincoln wire feeders. • LF-72, LN-10, DH-10, LN-15, Power Feed 10, Power Feed 10 Dual, and Power Feed 15 wire feeders require K1500-1 Feed Plate Gun Bushing to connect K115, K116 and K126 Guns. • K264, K345, K355 and K361 are for the LN-23P wire feeder only. K115: Rated 450 amps. Use .068-.120" (1.7-3.0mm) diameter wires. Choose from 10 or 15 ft. (3 or 4.5m) cable lengths. K116: Rated 600 amps. Use 7/64-.120” (2.8-3.0mm) diameter wire. 15 ft. (4.5m) cable length. Adjustable grip angle. K126: Rated 350 amps. Use .062-3/32” (1.6-2.8mm) diameter wires. Choose from 10 or 15 ft. (3 or 4.5m) cable lengths. K264, K355: Rated 250 amps. Use .068-5/64" (1.8-2.0mm) diameter wires. Cable for K264 is 8 ft. (2.4m) in length. Cable for K355 is 10 ft. (3.0 m) in length. Reduced wire feed speed thumb switch. K345, K361: Rated 350 amps. Use .068-5/64" (1.8-2.0mm) diameter wires. Both cables are 10 ft. (3m) in length. Reduced wire feed speed thumb switch. Lincoln has been manufacturing semiautomatic flux-cored, self-shielded (FCAW-S) gun and cable assemblies for over 40 years. Magnum self-shielded guns are rugged and reliable, yet lightweight, flexible and maneuverable. Amperage ranges from 250 to 600 amps. From the smallest repair to the largest fabrication job, Lincoln’s fluxcored, self-shielded (FCAW-S) guns are a great choice. Publication E12.110 5/04 www.lincolnelectric.com TECHNICAL SPECIFICATIONS GUN WIRE DIAMETERS Product Rated Length .068-5/64" .062-3/32" 3/32" 7/64-.120" Number Amps ft. (m) (1.7-2.0mm) (1.6-2.4mm) (1.6-2.4mm) (1.6-2.4mm) Tube Angle K115-1 450 10 (3.0) 82O K115-2 450 15 (4.5) 82O K115-3 450 10 (3.0) 82O K115-4 450 15 (4.5) 82O K115-5 450 10 (3.0) 82O K115-8 450 15 (4.5) 45O K115-10 450 15 (4.5) 45O K116-2 600 15 (4.5) Straight K126-1 350 10 (3.0) 62O K126-2 350 15 (4.5) 62O K264-8 250 8 (2.4) 62O K345-10 350 10 (3.0) 90O K355-10 250 10 (3.0) 90O K361-10 350 10 (3.0) 62O

Open the catalog to page 1
Magnum Self-Shielded Arc Welding Guns - 2

A CLOSER LOOK THE LINCOLN ELECTRIC COMPANY 22801 St. Clair Ave., Cleveland, OH 44117-1199 • 216.481.8100 • www.lincolnelectric.com EXPENDABLE PARTS Description K115-1, -2, -8 K115-3, -4, -10 K115-5 K116-2 K126-1, -2 K264-8, K354-10 Gun Tubes 30O Standard Length KP1914-2 KP1914-2 30O Long Length KP1914-1 KP1914-1 45O KP1910-1 KP1910-2 KP1919-1 45O Hardfacing KP1952-1 62O KP1909-1 KP1909-1 82O KP1907-1 KP1907-2 KP1919-2 Straight KP1908-1, -2 82O Hardfacing KP1953-1 90O KP1920-1 KP1920-1 Contact Tips 1/16" KP2100-2B1 .068-.072 KP2100-1B1(1) KP2100-1B1(1) 5/64" KP2103-5B1(1) KP2100-4B1(1)...
