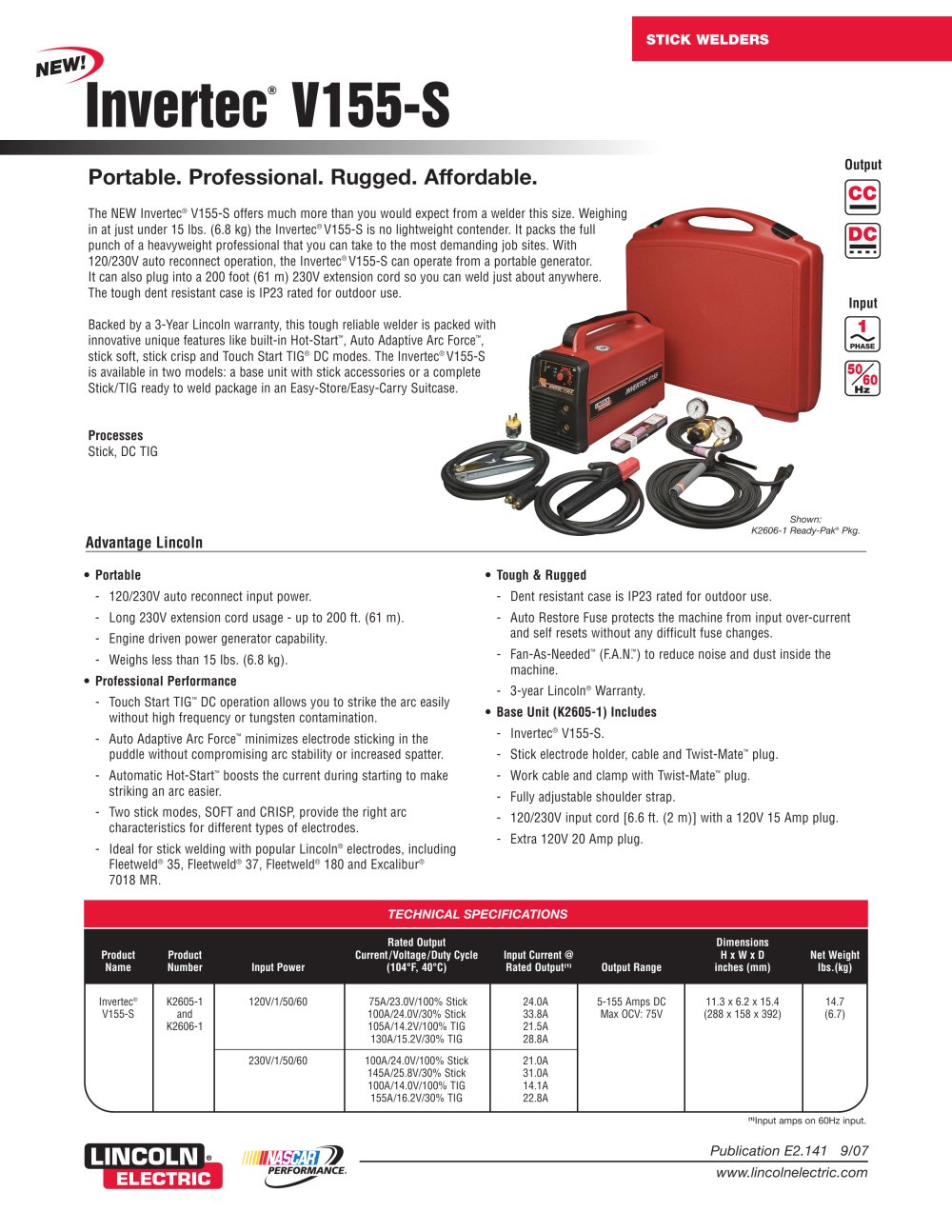

Invertec® V155-S Portable. Professional. Rugged. Affordable. STICK WELDERS TECHNICAL SPECIFICATIONS Rated Output Dimensions Product Product Current/Voltage/Duty Cycle Input Current @ H x W x D Net Weight Name Number Input Power (104°F, 40°C) Rated Output(1) Output Range inches (mm) lbs.(kg) Invertec® K2605-1 120V/1/50/60 75A/23.0V/100% Stick 24.0A 5-155 Amps DC 11.3 x 6.2 x 15.4 14.7 V155-S and 100A/24.0V/30% Stick 33.8A Max OCV: 75V (288 x 158 x 392) (6.7) K2606-1 105A/14.2V/100% TIG 21.5A 130A/15.2V/30% TIG 28.8A 230V/1/50/60 100A/24.0V/100% Stick 21.0A 145A/25.8V/30% Stick 31.0A 100A/14.0V/100% TIG 14.1A 155A/16.2V/30% TIG 22.8A (1)Input amps on 60Hz input. • Portable - 120/230V auto reconnect input power. - Long 230V extension cord usage - up to 200 ft. (61 m). - Engine driven power generator capability. - Weighs less than 15 lbs. (6.8 kg). • Professional Performance - Touch Start TIG™ DC operation allows you to strike the arc easily without high frequency or tungsten contamination. - Auto Adaptive Arc Force™ minimizes electrode sticking in the puddle without compromising arc stability or increased spatter. - Automatic Hot-Start™ boosts the current during starting to make striking an arc easier. - Two stick modes, SOFT and CRISP, provide the right arc characteristics for different types of electrodes. - Ideal for stick welding with popular Lincoln® electrodes, including Fleetweld® 35, Fleetweld® 37, Fleetweld® 180 and Excalibur® 7018 MR. • Tough & Rugged - Dent resistant case is IP23 rated for outdoor use. - Auto Restore Fuse protects the machine from input over-current and self resets without any difficult fuse changes. - Fan-As-Needed™ (F.A.N.™) to reduce noise and dust inside the machine. - 3-year Lincoln® Warranty. • Base Unit (K2605-1) Includes - Invertec® V155-S. - Stick electrode holder, cable and Twist-Mate™ plug. - Work cable and clamp with Twist-Mate™ plug. - Fully adjustable shoulder strap. - 120/230V input cord [6.6 ft. (2 m)] with a 120V 15 Amp plug. - Extra 120V 20 Amp plug. Advantage Lincoln Output Input Publication E2.141 9/07 www.lincolnelectric.com Shown: K2606-1 Ready-Pak® Pkg. The NEW Invertec® V155-S offers much more than you would expect from a welder this size. Weighing in at just under 15 lbs. (6.8 kg) the Invertec®V155-S is no lightweight contender. It packs the full punch of a heavyweight professional that you can take to the most demanding job sites. With 120/230V auto reconnect operation, the Invertec®V155-S can operate from a portable generator. It can also plug into a 200 foot (61 m) 230V extension cord so you can weld just about anywhere. The tough dent resistant case is IP23 rated for outdoor use. Backed by a 3-Year Lincoln warranty, this tough reliable welder is packed with innovative unique features like built-in Hot-Start™, Auto Adaptive Arc Force™, stick soft, stick crisp and Touch Start TIG® DC modes. The Invertec®V155-S is available in two models: a base unit with stick accessories or a complete Stick/TIG ready to weld package in an Easy-Store/Easy-Carry Suitcase. Processes Stick, DC TIG
Open the catalog to page 1Invertec® V155-S www.[2] lincolnelectric.com A CLOSER LOOK Key Controls 1) Stick/Touch Start TIG® Modes 2) Status Lights 3) Output Control 4) Twist-Mate™ Connectors 1 SYSTEM SELECTION TIG Ready-Pak® Welding Package Order a Lincoln TIG Ready-Pak® Package and get a complete welding package. Each Package Contains: • Invertec® V155-S • Stick electrode holder and cable [10 ft. (3.0 m)] with Twist-Mate™ plug • Work clamp and cable [10 ft. (3.0 m)] with Twist-Mate™ plug • Fully adjustable shoulder strap • 120/230V input cord [6.6 ft. (2 m)] with a 120V 15 Amp plug • Extra 120V 20 Amp plug • Gas...
Open the catalog to page 2OURS Invertec® V155-S www.[3] lincolnelectric.com RECOMMENDED OPTIONS A CLOSER LOOK GENERAL OPTIONS Welding Cart Full-featured cart is designed to store and transport a welder, 80 cubic foot gas cylinder, welding cables and accessories. Includes an angled top shelf for easy access to welder controls, a lower tray for added storage space, a sturdy handle and a convenient cable wrap hanger. Order K2275-1 Twist-Mate™ Cable Plug Kit Twist-Mate™ plug for connecting welding cable to output terminal. Contains one plug. Order K852-25 TIG OPTIONS PTA-17FV Flex Head Gas Valve TIG Torch with...
Open the catalog to page 3THE LINCOLN ELECTRIC COMPANY® 22801 St. Clair Ave., Cleveland, OH 44117-1199 • 216.481.8100 • www.lincolnelectric.com RECOMMENDED OPTIONS TIG OPTIONS (CON’T.) Cut Length Consumables TIG welding filler metals are available for welding stainless steel, mild steel, and copper alloys. Request Lincoln Publication C9.10 for more information. TIG Torch Parts Kits Parts kits are available for the PTA-9FV and PTA-17FV TIG torch. These kits include back cap, collets, collet bodies, nozzles and tungstens. Order KP507 for PTA-9 torches Order KP508 for PTA-17 torches (See publication E12.150 for parts...
