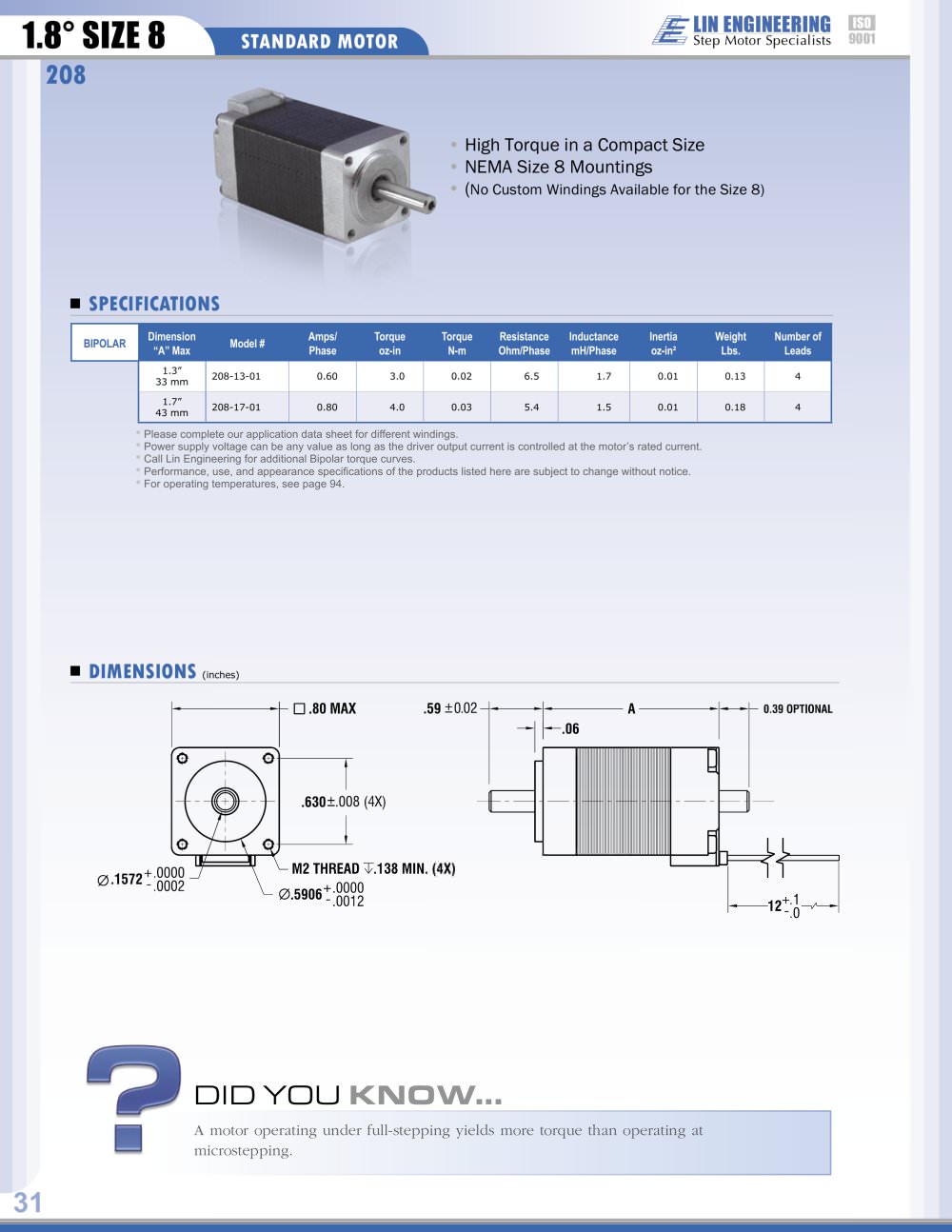

31 STANDARD MOTOR 1.8° SIZE 8 BIPOLAR Dimension “A” Max Model # Amps/Phase Torque oz-in Torque N-m Resistance Ohm/Phase Inductance mH/Phase Inertia oz-in² Weight Lbs. Number of Leads 1.3” 33 mm 208-13-01 0.60 3.0 0.02 6.5 1.7 0.01 0.13 4 1.7” 43 mm 208-17-01 0.80 4.0 0.03 5.4 1.5 0.01 0.18 4 A • High Torque in a Compact Size • NEMA Size 8 Mountings • (No Custom Windings Available for the Size 8) • Please complete our application data sheet for different windings. • Power supply voltage can be any value as long as the driver output current is controlled at the motor’s rated current. • Call Lin Engineering for additional Bipolar torque curves. • Performance, use, and appearance specifications of the products listed here are subject to change without notice. • For operating temperatures, see page 94. DIMENSIONS (inches) SPECIFICATIONS LIN ENGINEERINGISO9001Step Motor Specialists 208 DID YOU KNOW... A motor operating under full-stepping yields more torque than operating at microstepping.
