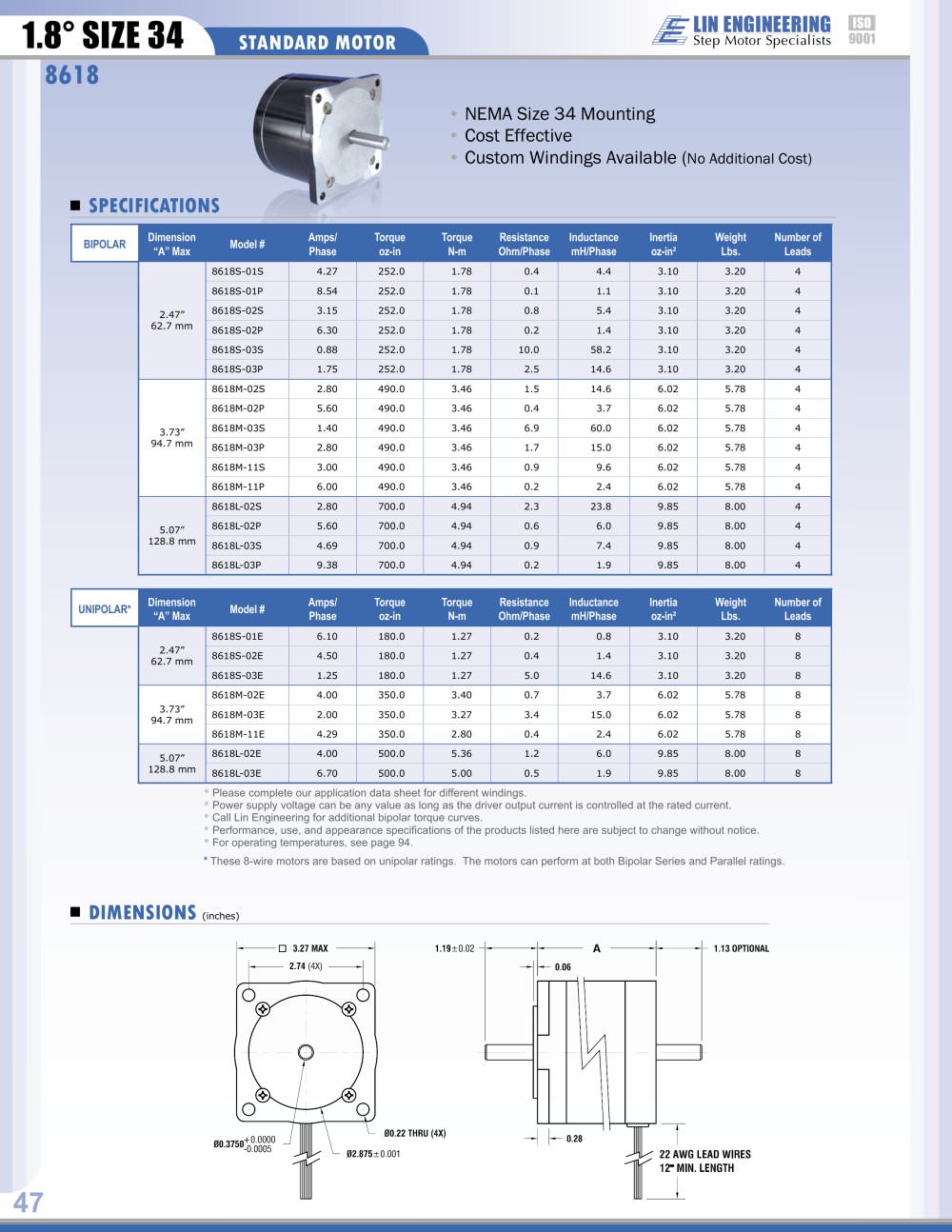

STANDARD MOTOR 8618 - Lin Engineering - #1

Text version of the page

• NEMA Size 34 Mounting • Cost Effective • Custom Windings Available (No Additional Cost) 47 STANDARD MOTOR 1.8° SIZE 34 UNIPOLAR* Dimension “A” Max Model # Amps/Phase Torque oz-in Torque N-m Resistance Ohm/Phase Inductance mH/Phase Inertia oz-in² Weight Lbs. Number of Leads 2.47” 62.7 mm 8618S-01E 6.10 180.0 1.27 0.2 0.8 3.10 3.20 8 8618S-02E 4.50 180.0 1.27 0.4 1.4 3.10 3.20 8 8618S-03E 1.25 180.0 1.27 5.0 14.6 3.10 3.20 8 3.73” 94.7 mm 8618M-02E 4.00 350.0 3.40 0.7 3.7 6.02 5.78 8 8618M-03E 2.00 350.0 3.27 3.4 15.0 6.02 5.78 8 8618M-11E 4.29 350.0 2.80 0.4 2.4 6.02 5.78 8 5.07” 128.8 mm 8618L-02E 4.00 500.0 5.36 1.2 6.0 9.85 8.00 8 8618L-03E 6.70 500.0 5.00 0.5 1.9 9.85 8.00 8 BIPOLAR Dimension “A” Max Model # Amps/Phase Torque oz-in Torque N-m Resistance Ohm/Phase Inductance mH/Phase Inertia oz-in² Weight Lbs. Number of Leads 2.47” 62.7 mm 8618S-01S 4.27 252.0 1.78 0.4 4.4 3.10 3.20 4 8618S-01P 8.54 252.0 1.78 0.1 1.1 3.10 3.20 4 8618S-02S 3.15 252.0 1.78 0.8 5.4 3.10 3.20 4 8618S-02P 6.30 252.0 1.78 0.2 1.4 3.10 3.20 4 8618S-03S 0.88 252.0 1.78 10.0 58.2 3.10 3.20 4 8618S-03P 1.75 252.0 1.78 2.5 14.6 3.10 3.20 4 3.73” 94.7 mm 8618M-02S 2.80 490.0 3.46 1.5 14.6 6.02 5.78 4 8618M-02P 5.60 490.0 3.46 0.4 3.7 6.02 5.78 4 8618M-03S 1.40 490.0 3.46 6.9 60.0 6.02 5.78 4 8618M-03P 2.80 490.0 3.46 1.7 15.0 6.02 5.78 4 8618M-11S 3.00 490.0 3.46 0.9 9.6 6.02 5.78 4 8618M-11P 6.00 490.0 3.46 0.2 2.4 6.02 5.78 4 5.07” 128.8 mm 8618L-02S 2.80 700.0 4.94 2.3 23.8 9.85 8.00 4 8618L-02P 5.60 700.0 4.94 0.6 6.0 9.85 8.00 4 8618L-03S 4.69 700.0 4.94 0.9 7.4 9.85 8.00 4 8618L-03P 9.38 700.0 4.94 0.2 1.9 9.85 8.00 4 • Please complete our application data sheet for different windings. • Power supply voltage can be any value as long as the driver output current is controlled at the rated current. • Call Lin Engineering for additional bipolar torque curves. • Performance, use, and appearance specifications of the products listed here are subject to change without notice. • For operating temperatures, see page 94. * These 8-wire motors are based on unipolar ratings. The motors can perform at both Bipolar Series and Parallel ratings. DIMENSIONS (inches) SPECIFICATIONS LIN ENGINEERINGISO9001Step Motor Specialists 8618
