SilverPak 23C

SilverPak 23C
2Pages

Catalog excerpts

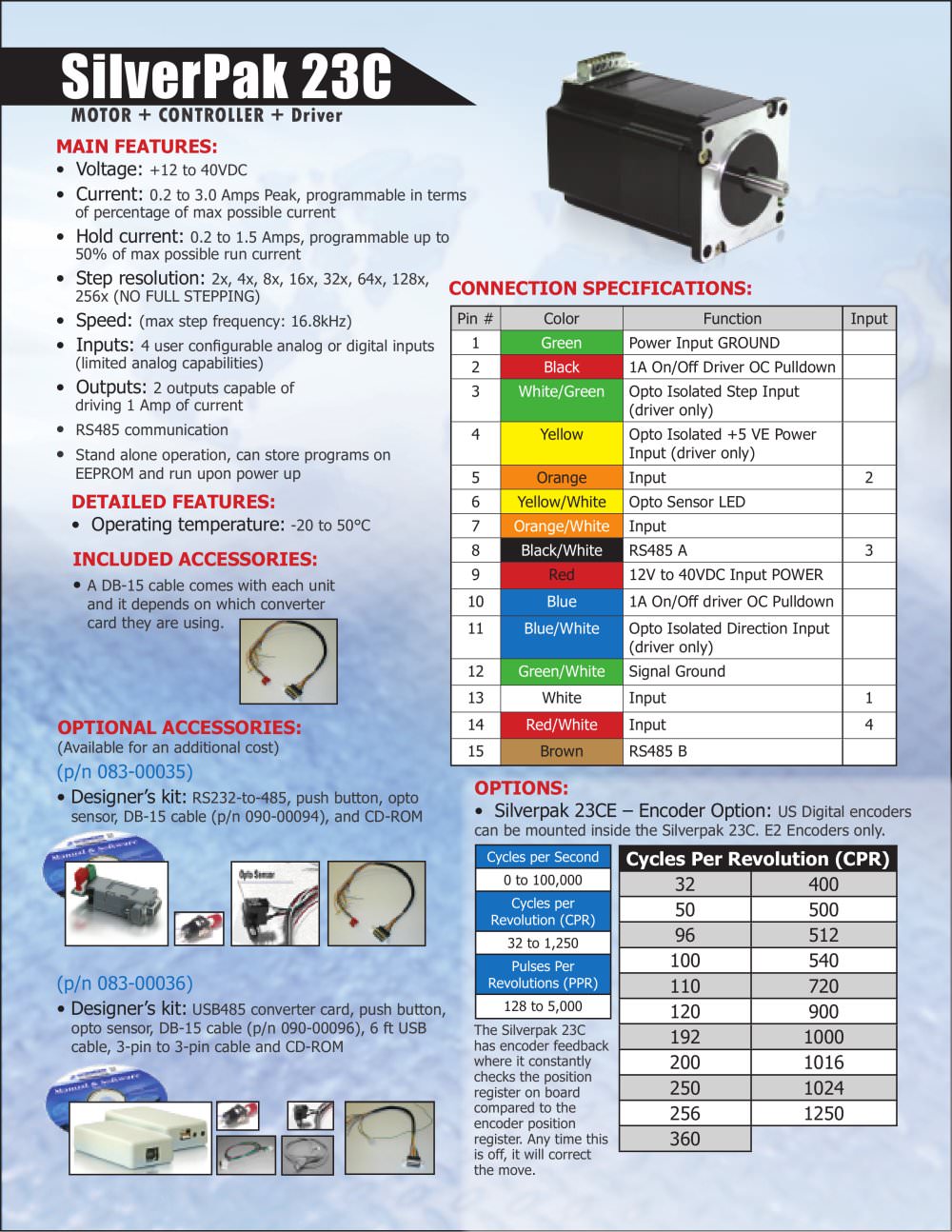

MOTOR + CONTROLLER + Driver SilverPak 23C MAIN FEATURES: • Voltage: +12 to 40VDC • Current: 0.2 to 3.0 Amps Peak, programmable in terms of percentage of max possible current • Hold current: 0.2 to 1.5 Amps, programmable up to 50% of max possible run current • Step resolution: 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x (NO FULL STEPPING) • Speed: (max step frequency: 16.8kHz) • Inputs: 4 user configurable analog or digital inputs (limited analog capabilities) • Outputs: 2 outputs capable of driving 1 Amp of current • RS485 communication • Stand alone operation, can store programs on EEPROM and run upon power up Pin # Color Function Input 1 Green Power Input GROUND 2 Black 1A On/Off Driver OC Pulldown 3 White/Green Opto Isolated Step Input (driver only) 4 Yellow Opto Isolated +5 VE Power Input (driver only) 5 Orange Input 2 6 Yellow/White Opto Sensor LED 7 Orange/White Input 8 Black/White RS485 A 3 9 Red 12V to 40VDC Input POWER 10 Blue 1A On/Off driver OC Pulldown 11 Blue/White Opto Isolated Direction Input (driver only) 12 Green/White Signal Ground 13 White Input 1 14 Red/White Input 4 15 Brown RS485 B DETAILED FEATURES: • Operating temperature: -20 to 50°C CONNECTION SPECIFICATIONS: included Accesories: • A DB-15 cable comes with each unit and it depends on which converter card they are using. (p/n 083-00035) • Designer’s kit: RS232-to-485, push button, opto sensor, DB-15 cable (p/n 090-00094), and CD-ROM (p/n 083-00036) • Designer’s kit: USB485 converter card, push button, opto sensor, DB-15 cable (p/n 090-00096), 6 ft USB cable, 3-pin to 3-pin cable and CD-ROM Optional Accesories: (Available for an additional cost) Cycles Per Revolution (CPR) 32 400 50 500 96 512 100 540 110 720 120 900 192 1000 200 1016 250 1024 256 1250 360 Cycles per Second 0 to 100,000 Cycles per Revolution (CPR) 32 to 1,250 Pulses Per Revolutions (PPR) 128 to 5,000 OPTIONS: • Silverpak 23CE – Encoder Option: US Digital encoders can be mounted inside the Silverpak 23C. E2 Encoders only. The Silverpak 23C has encoder feedback where it constantly checks the position register on board compared to the encoder position register. Any time this is off, it will correct the move.

Open the catalog to page 1

Key seling features: • Can run a program stand alone (no PC needed) • Simple programming • Encoder feedback with position correction • Two designer’s kits available for the RS232 or USB user *High resolution encoder adder (>1000) KITS: CARD ONLY (no-kit) 083-00004 Designer’s Kit for RS232 RS485, push button, opto sensor, cables 017-00004 RS232-485 converter card 083-00026 Designer’s Kit for USB USB485, push button, opto sensor, cables USB485 converter card COMMON TECH SUPPORT QUESTIONS / RMA ISSUES: • MOTORS ARE HOT: Check holding current or running current. It could be too high. • POWER...

Open the catalog to page 2
