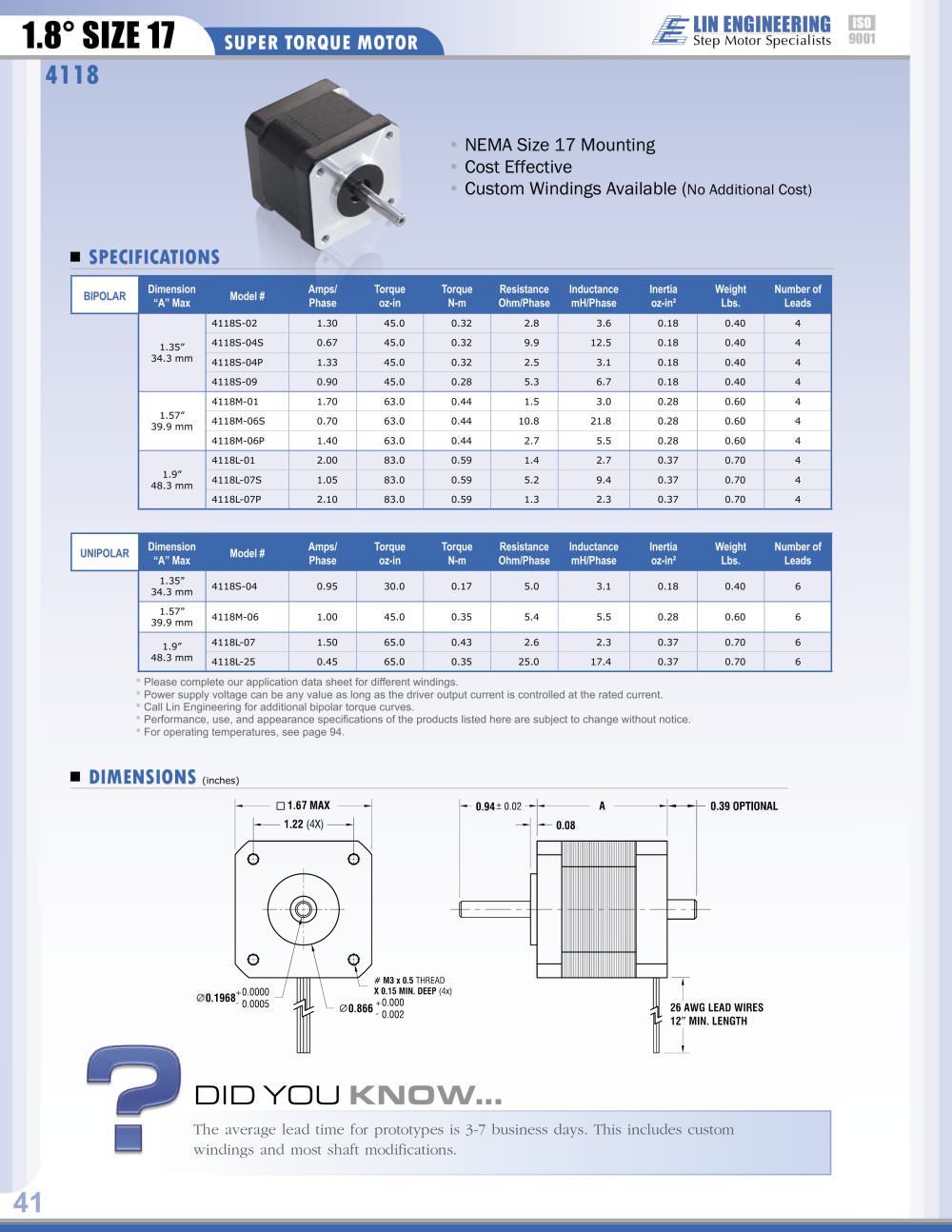

lin engineering^
Step Motor Specialists 9001
1.8° SIZE 17
SUPER TORQUE MOTOR
4118
• NEMA Size 17 Mounting
• Cost Effective
• Custom Windings Available (No Additional Cost)
SPECIFICATIONS
Dimension
Model #
Amps/
Torque
Torque
Resistance
Inductance
Inertia
Weight
Number of
"A" Max
Phase
oz-ln
N-m
Ohm/Phase
mH/Phase
oz-in2
Lbs.
Leads
4118S-02
1.30
45.0
0.32
2.8
3.6
0.18
0.40
4
1.35"
4118S-04S
0.67
45.0
0.32
9.9
12.5
0.18
0.40
4
34.3 mm
4118S-04P
1.33
45.0
0.32
2.5
3.1
0.18
0.40
4
4118S-09
0.90
45.0
0.28
5.3
6.7
0.18
0.40
4
4118M-01
1.70
63.0
0.44
1.5
3.0
0.28
0.60
4
1.57" 39.9 mm
4118M-06S
0.70
63.0
0.44
10.8
21.8
0.28
0.60
4
4118M-06P
1.40
63.0
0.44
2.7
5.5
0.28
0.60
4
4118L-01
2.00
83.0
0.59
1.4
2.7
0.37
0.70
4
1.9" 48.3 mm
4118L-07S
1.05
83.0
0.59
5.2
9.4
0.37
0.70
4
4118L-07P
2.10
83.0
0.59
1.3
2.3
0.37
0.70
4
BIPOLAR
UNIPOLAR
Dimension
Model #
Amps/
Torque
Torque
Resistance
Inductance
Inertia
Weight
Number of
"A" Max
Phase
oz-in
N-m
Ohm/Phase
mH/Phase
oz-in2
Lbs.
Leads
1.35" 34.3 mm
4118S-04
0.95
30.0
0.17
5.0
3.1
0.18
0.40
6
1.57" 39.9 mm
4118M-06
i.oo
45.0
0.35
5.4
5.5
0.28
0.60
6
1.9"
4118L-07
1.50
65.0
0.43
2.6
2.3
0.37
0.70
6
48.3 mm
4118L-25
0.45
65.0
0.35
25.0
17.4
0.37
0.70
6
• Please complete our application data sheet for different windings.
• Power supply voltage can be any value as long as the driver output current is controlled at the rated current.
• Call Lin Engineering for additional bipolar torque curves.
• Performance, use, and appearance specifications of the products listed here are subject to change without notice.
For operating temperatures, see page 94.
DIMENSIONS
(inches)
The average lead time for prototypes is 3-7 business days. This includes custom windings and most shaft modifications.
41
