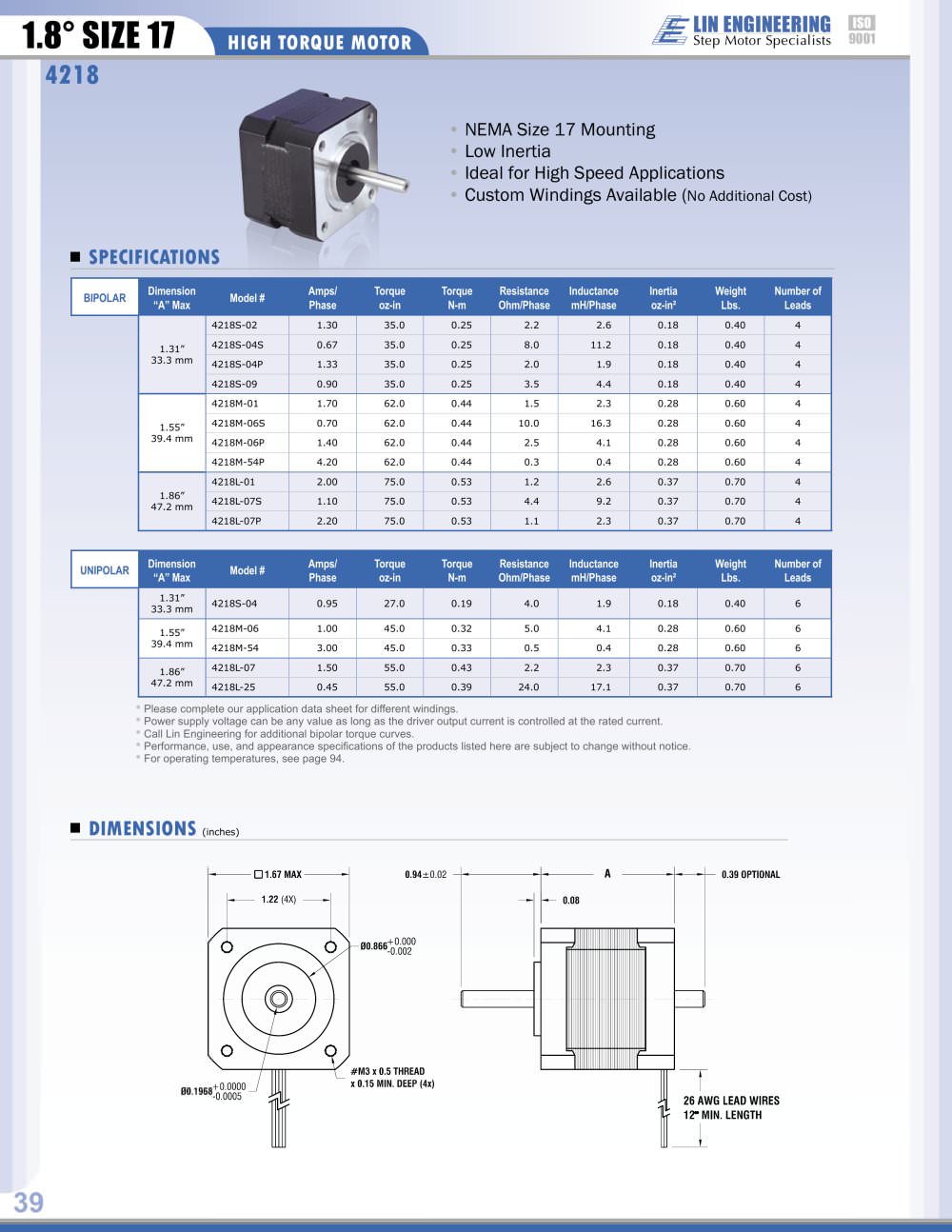

lin engineering!!!
Step Motor Specialists 9001
1.8° SIZE 17
HIGH TORQUE MOTOR
4218
• NEMA Size 17 Mounting
• Low Inertia
• Ideal for High Speed Applications
• Custom Windings Available (No Additional Cost)
SPECIFICATIONS
BIPOLAR
Dimension
Model #
Amps/
Torque
Torque
Resistance
Inductance
Inertia
Weight
Number of
"A" Max
Phase
oz-in
N-m
Ohm/Phase
mH/Phase
oz-in2
Lbs.
Leads
4218S-02
1.30
35.0
0.25
2.2
2.6
0.18
0.40
4
i.31"
4218S-04S
0.67
35.0
0.25
8.0
11.2
0.18
0.40
4
33.3 mm
4218S-04P
1.33
35.0
0.25
2.0
1.9
0.18
0.40
4
4218S-09
0.90
35.0
0.25
3.5
4.4
0.18
0.40
4
4218M-01
1.70
62.0
0.44
1.5
2.3
0.28
O.SO
4
1.55"
4218M-06S
0.70
62.0
0.44
10.0
16.3
0.28
O.SO
4
39.4 mm
4218M-06P
1.40
62.0
0.44
2.5
4.1
0.28
O.6O
4
4218M-54P
4.20
62.0
0.44
0.3
0.4
0.28
O.6O
4
4218L-01
2.00
75.0
0.53
1.2
2.6
0.37
O.7O
4
LBS" 47.2 mm
4218L-07S
i.io
75.0
0.53
4.4
9.2
0.37
O.7O
4
4218L-07P
2.20
75.0
0.53
i.i
2.3
0.37
O.7O
4
UNIPOLAR
Dimension
Model #
Amps/
Torque
Torque
Resistance
Inductance
Inertia
Weight
Number of
"A" Max
Phase
oz-in
N-m
Ohm/Phase
mH/Phase
oz-in2
Lbs.
Leads
1.31" 33.3 mm
4218S-04
0.95
27.0
0.19
4.0
1.9
0.18
O.4O
6
1.55"
4218M-06
i.oo
45.0
0.32
5.0
4.1
0.28
O.6O
6
39.4 mm
4218M-54
3.00
45.0
0.33
0.5
0.4
0.28
O.6O
6
LBS"
4218L-07
1.50
55.0
0.43
2.2
2.3
0.37
O.7O
6
47.2 mm
4218L-25
0.45
55.0
0.39
24.0
17.1
0.37
O.7O
6
• Please complete our application data sheet for different windings.
• Power supply voltage can be any value as long as the driver output current is controlled at the rated current.
• Call Lin Engineering for additional bipolar torque curves.
• Performance, use, and appearance specifications of the products listed here are subject to change without notice.
• For operating temperatures, see page 94.
