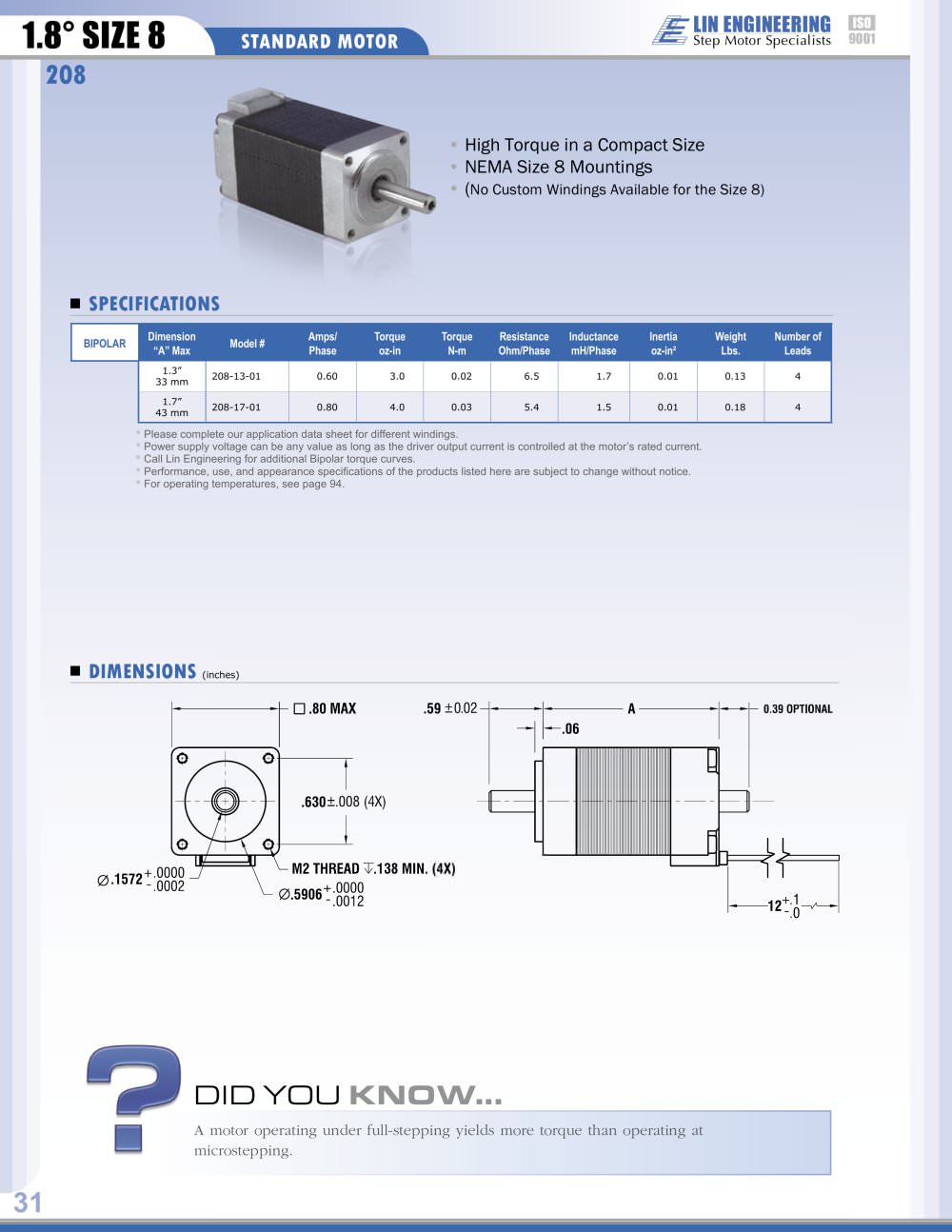

lin engineeringS!"

Step Motor Specialists 9001

1.8° SIZE 8

STANDARD MOTOR

208

High Torque in a Compact Size NEMA Size 8 Mountings

(No Custom Windings Available for the Size 8)

SPECIFICATIONS

• Please complete our application data sheet for different windings.

• Power supply voltage can be any value as long as the driver output current is controlled at the motor's rated current.

• Call Lin Engineering for additional Bipolar torque curves.

• Performance, use, and appearance specifications of the products listed here are subject to change without notice.

• For operating temperatures, see page 94.

DIMENSIONS

(inches)

.59 ±0.02-

□ .80 MAX

0.39 OPTIONAL

H —.06

630±.008 (4X)

™ ,„,+.0000 T \ ^ ^M2 THREAD ^.138 MIN. (4X)

0.ia/^_ ₀₀₀₂

0.5906

+.0000 .0012

+.1 -.0"

-12

DID YOU KNOW...

A motor operating under full-stepping yields more torque than operating at microstepping.
