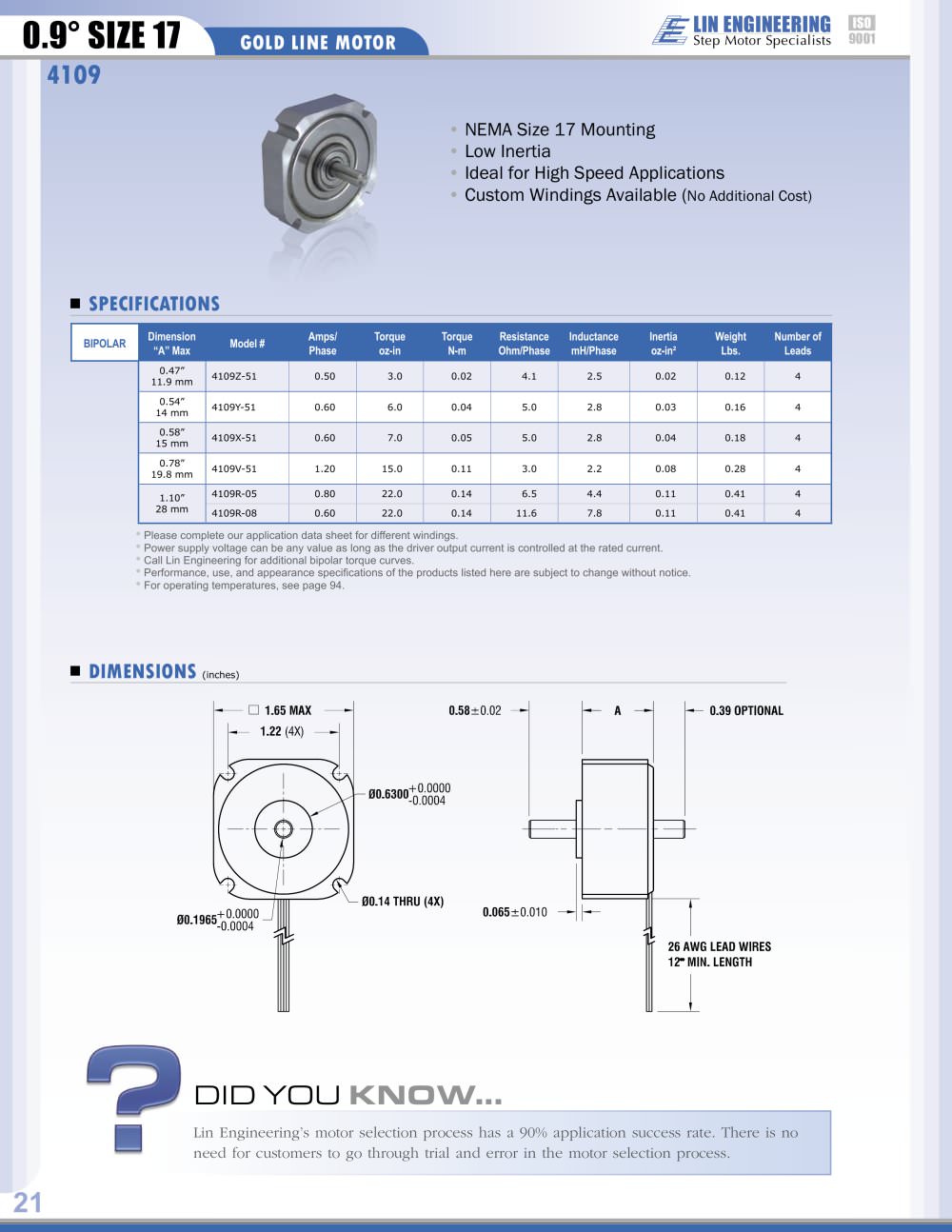

0.9° SIZE 17

GOLD LINE MOTOR

4109

• NEMA Size 17 Mounting

• Low Inertia

• Ideal for High Speed Applications

• Custom Windings Available (No Additional Cost)

■ SPECIFICATIONS


BIPOLAR	Dimension	Model #	Amps/	Torque	Torque	Resistance	Inductance	Inertia	Weight	Number of
BIPOLAR	"A" Max	Model #	Phase	oz-in	N-m	Ohm/Phase	mH/Phase	oz-in²	Lbs.	Leads
	0.47" 11.9 mm	4109Z-51	0.50	3.0	0.02	4.1	2.5	0.02	0.12	4
	0.54" 14 mm	4109Y-51	0.60	6.0	0.04	5.0	2.8	0.03	0.16	4
	0.58" 15 mm	4109X-51	0.60	7.0	0.05	5.0	2.8	0.04	0.18	4
	0.78" 19.8 mm	4109V-51	1.20	15.0	0.11	3.0	2.2	0.08	0.28	4
	1.10"	4109R-05	0.80	22.0	0.14	6.5	4.4	0.11	0.41	4
	28 mm	4109R-08	0.60	22.0	0.14	11.6	7.8	0.11	0.41	4

Please complete our application data sheet for different windings.

Power supply voltage can be any value as long as the driver output current is controlled at the rated current. Call Lin Engineering for additional bipolar torque curves.

Performance, use, and appearance specifications of the products listed here are subject to change without notice. For operating temperatures, see page 94.

DIMENSIONS

(inches)

DID YOU KNOW...

Lin Engineering's motor selection process has a 90% application success rate. There is no need for customers to go through trial and error in the motor selection process.
