LIN ENGINEERINGS!"

Step Motor Specialists 9001

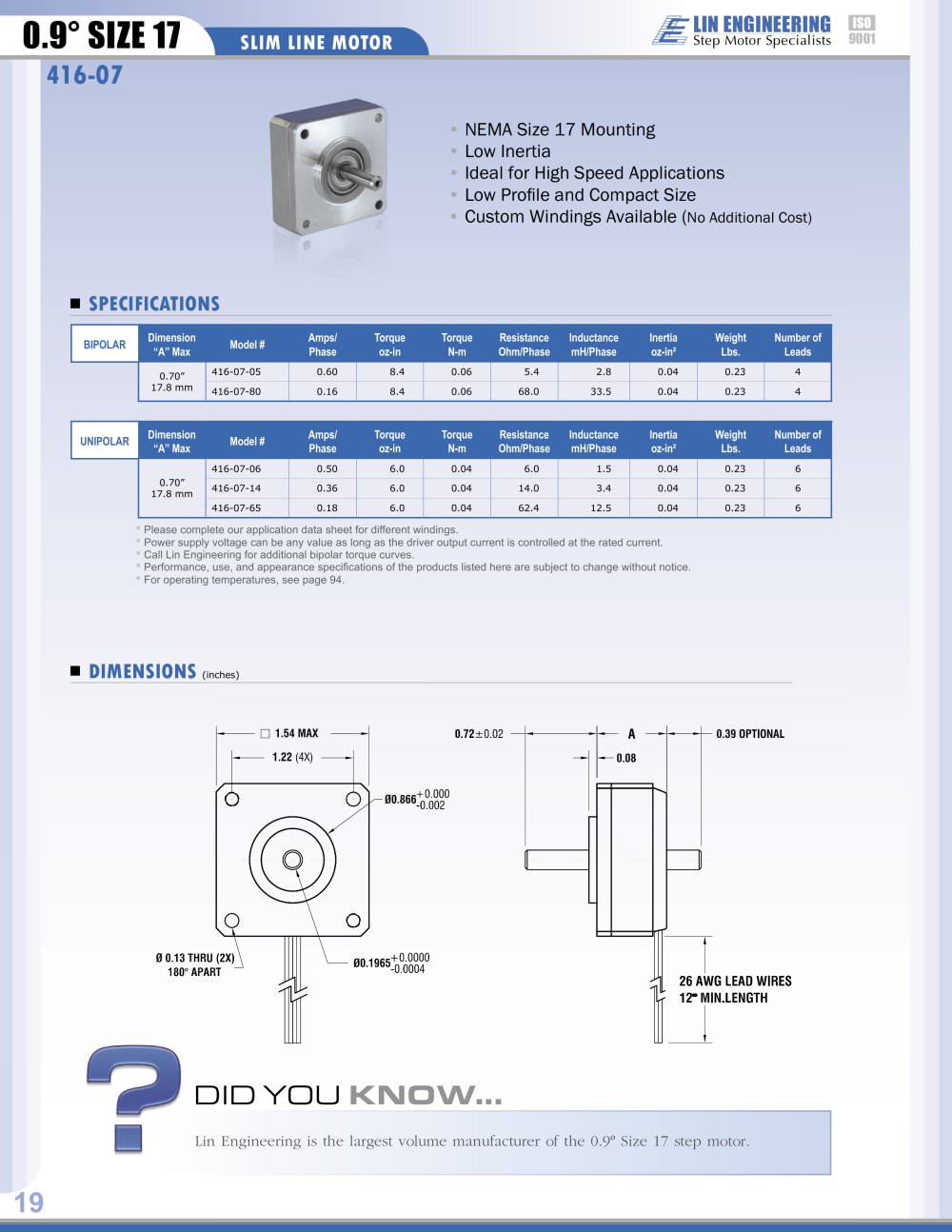

0.9° SIZE 17

SLIM LINE MOTOR

416-07

• NEMA Size 17 Mounting

• Low Inertia

• Ideal for High Speed Applications

• Low Profile and Compact Size

• Custom Windings Available (No Additional Cost)

■ SPECIFICATIONS


BIPOLAR	Dimension "A" Max	Model #	Amps/ Phase	Torque oz-in	Torque N-m	Resistance Ohm/Phase	Inductance mH/Phase	Inertia oz-in²	Weight Lbs.	Number of Leads
	0.70"	416-07-05	0.60	8.4	0.06	5.4	2.8	0.04	0.23	4
	17.8 mm	416-07-80	0.16	8.4	0.06	68.0	33.5	0.04	0.23	4


UNIPOLAR	Dimension	Model #	Amps/	Torque	Torque	Resistance	Inductance	Inertia	Weight	Number of
UNIPOLAR	"A" Max	Model #	Phase	oz-in	N-m	Ohm/Phase	mH/Phase	oz-in2	Lbs.	Leads
		416-07-06	0.50	6.0	0.04	6.0	1.5	0.04	0.23	6
	0.70" 17.8 mm	416-07-14	0.36	6.0	0.04	14.0	3.4	0.04	0.23	6
		416-07-65	0.18	6.0	0.04	62.4	12.5	0.04	0.23	6

Please complete our application data sheet for different windings.

Power supply voltage can be any value as long as the driver output current is controlled at the rated current. Call Lin Engineering for additional bipolar torque curves.

Performance, use, and appearance specifications of the products listed here are subject to change without notice. For operating temperatures, see page 94.

■ DIMENSIONS (inches)
