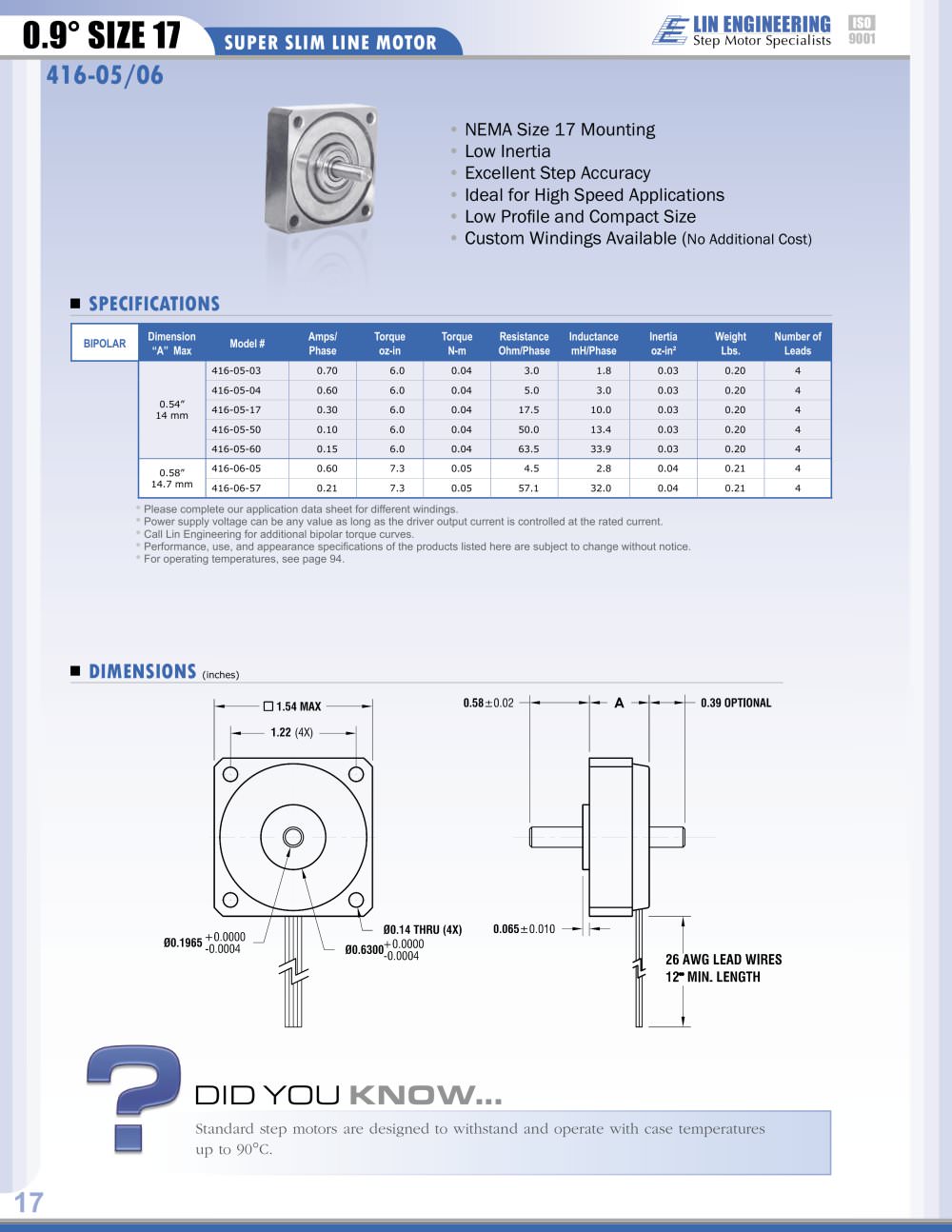

LIN ENGINEERING^

Step Motor Specialists 9001

0.9° SIZE 17

SUPER SLIM LINE MOTOR

416-05/06

• NEMA Size 17 Mounting

• Low Inertia

• Excellent Step Accuracy

• Ideal for High Speed Applications

• Low Profile and Compact Size

• Custom Windings Available (No Additional Cost)

■ SPECIFICATIONS


BIPOLAR	Dimension	Model #	Amps/	Torque	Torque	Resistance	Inductance	Inertia	Weight	Number of
BIPOLAR	"A" Max	Model #	Phase	oz-in	N-m	Ohm/Phase	mH/Phase	oz-in²	Lbs.	Leads
		416-05-03	0.70	6.0	0.04	3.0	1.8	0.03	0.20	4
		416-05-04	0.60	6.0	0.04	5.0	3.0	0.03	0.20	4
	0.54" 14 mm	416-05-17	0.30	6.0	0.04	17.5	10.0	0.03	0.20	4
		416-05-50	0.10	6.0	0.04	50.0	13.4	0.03	0.20	4
		416-05-60	0.15	6.0	0.04	63.5	33.9	0.03	0.20	4
	0.58"	416-06-05	0.60	7.3	0.05	4.5	2.8	0.04	0.21	4
	14.7 mm	416-06-57	0.21	7.3	0.05	57.1	32.0	0.04	0.21	4

Please complete our application data sheet for different windings.

Power supply voltage can be any value as long as the driver output current is controlled at the rated current. Call Lin Engineering for additional bipolar torque curves.

Performance, use, and appearance specifications of the products listed here are subject to change without notice. For operating temperatures, see page 94.

■ DIMENSIONS (inches)

Standard step motors are designed to withstand and operate with case temperatures up to 90°C.

A 7
