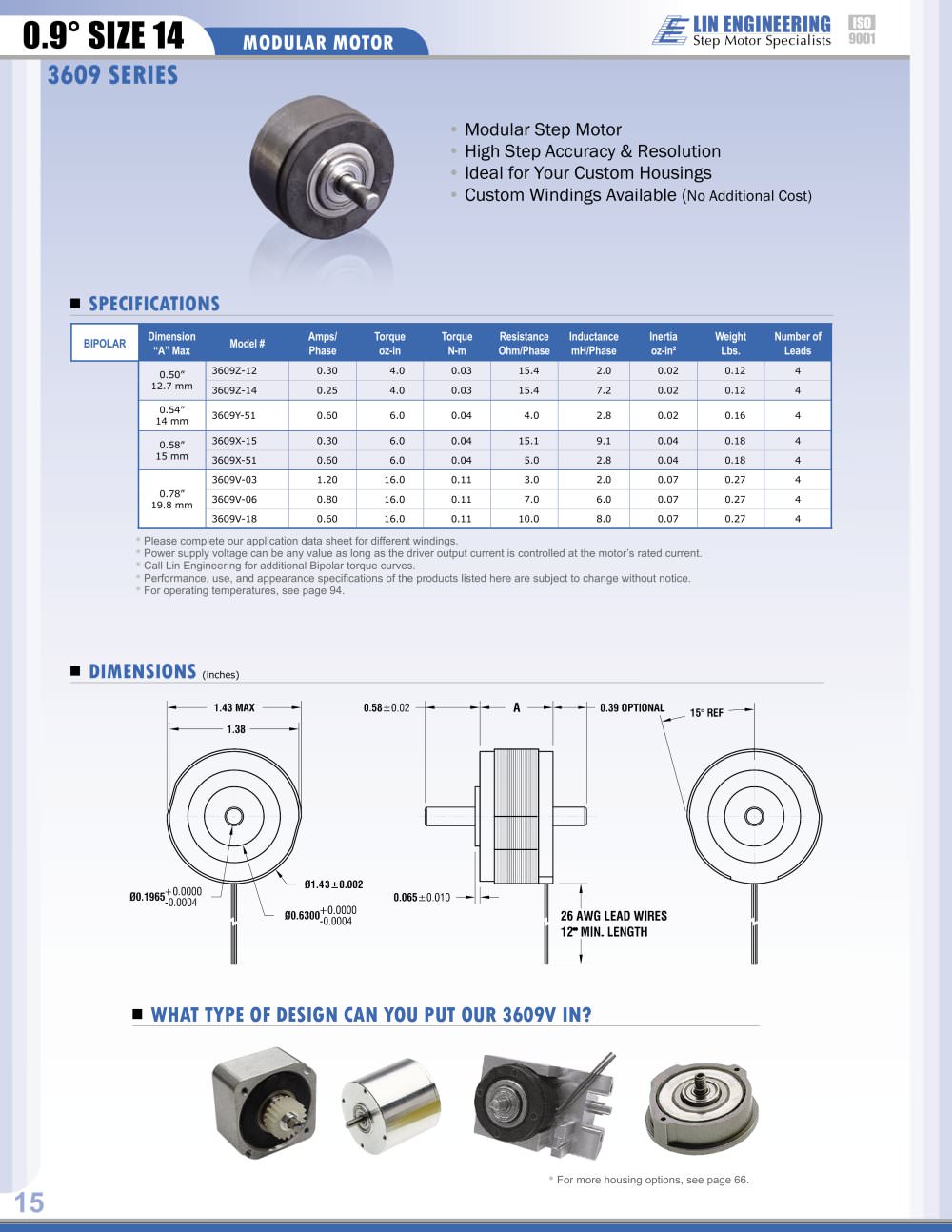

LIN ENGINEERINGS!"

Step Motor Specialists 9001

0.9° SIZE 14

MODULAR MOTOR

3609 SERIES

• Modular Step Motor

• High Step Accuracy & Resolution

• Ideal for Your Custom Housings

• Custom Windings Available (No Additional Cost)

■ SPECIFICATIONS


BIPOLAR	Dimension	Model #	Amps/	Torque	Torque	Resistance	Inductance	Inertia	Weight	Number of
BIPOLAR	"A" Max	Model #	Phase	oz-in	N-m	Ohm/Phase	mH/Phase	oz-in²	Lbs.	Leads
	0.50"	3609Z-12	0.30	4.0	0.03	15.4	2.0	0.02	0.12	4
	12.7 mm	3609Z-14	0.25	4.0	0.03	15.4	7.2	0.02	0.12	4
	0.54" 14 mm	3609Y-51	0.60	6.0	0.04	4.0	2.8	0.02	0.16	4
	0.58"	3609X-15	0.30	6.0	0.04	15.1	9.1	0.04	0.18	4
	15 mm	3609X-51	0.60	6.0	0.04	5.0	2.8	0.04	0.18	4
		3609V-03	1.20	16.0	0.11	3.0	2.0	0.07	0.27	4
	0.78" 19.8 mm	3609V-06	0.80	16.0	0.11	7.0	6.0	0.07	0.27	4
		3609V-18	0.60	16.0	0.11	10.0	8.0	0.07	0.27	4

Please complete our application data sheet for different windings.

Power supply voltage can be any value as long as the driver output current is controlled at the motor's rated current. Call Lin Engineering for additional Bipolar torque curves.

Performance, use, and appearance specifications of the products listed here are subject to change without notice. For operating temperatures, see page 94.
