LIN ENGINEERING^

Step Motor Specialists 9001

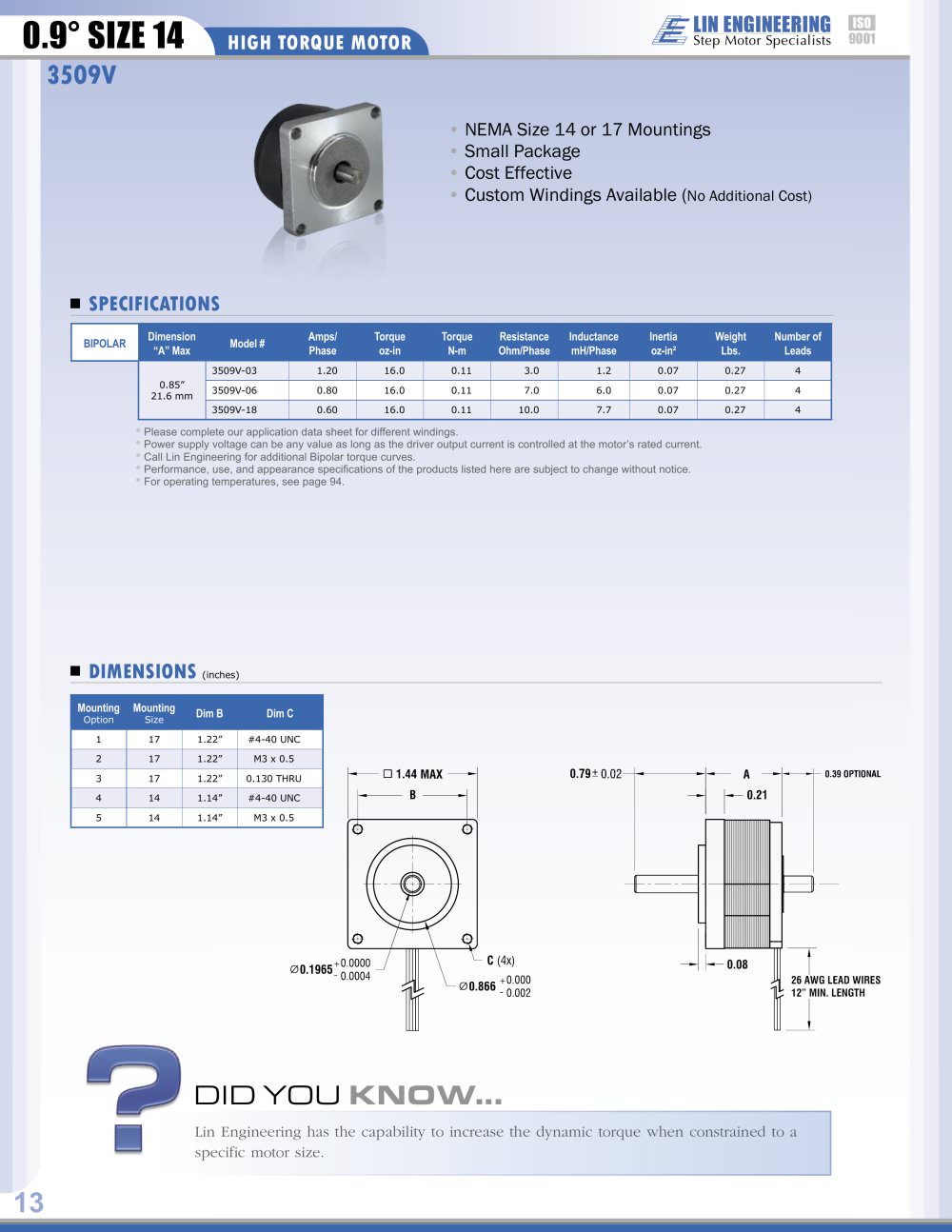

0.9° SIZE 14

HIGH TORQUE MOTOR

3509V

• NEMA Size 14 or 17 Mountings

• Small Package

• Cost Effective

• Custom Windings Available (No Additional Cost)

■ SPECIFICATIONS


BIPOLAR	Dimension	Model #	Amps/	Torque	Torque	Resistance	Inductance	Inertia	Weight	Number of
BIPOLAR	"A" Max	Model #	Phase	oz-in	N-m	Ohm/Phase	mH/Phase	oz-in²	Lbs.	Leads
		3509V-03	1.20	16.0	0.11	3.0	1.2	0.07	0.27	4
	0.85" 21.6 mm	3509V-06	0.80	16.0	0.11	7.0	6.0	0.07	0.27	4
		3509V-18	0.60	16.0	0.11	10.0	7.7	0.07	0.27	4

Please complete our application data sheet for different windings.

Power supply voltage can be any value as long as the driver output current is controlled at the motor's rated current. Call Lin Engineering for additional Bipolar torque curves.

Performance, use, and appearance specifications of the products listed here are subject to change without notice. For operating temperatures, see page 94.

DIMENSIONS

(inches)


Mounting Option	Mounting Size	Dim B	Dim C
1	17	1.22"	#4-40 UNC
2	17	1.22"	M3 x 0.5
3	17	1.22"	0.130 THRU
4	14	1.14"	#4-40 UNC
5	14	1.14"	M3 x 0.5

00.1965

26 AWG LEAD WIRES 12" MIN. LENGTH

DID YOU KNOW...

Lin Engineering has the capability to increase the dynamic torque when constrained to a specific motor size.
