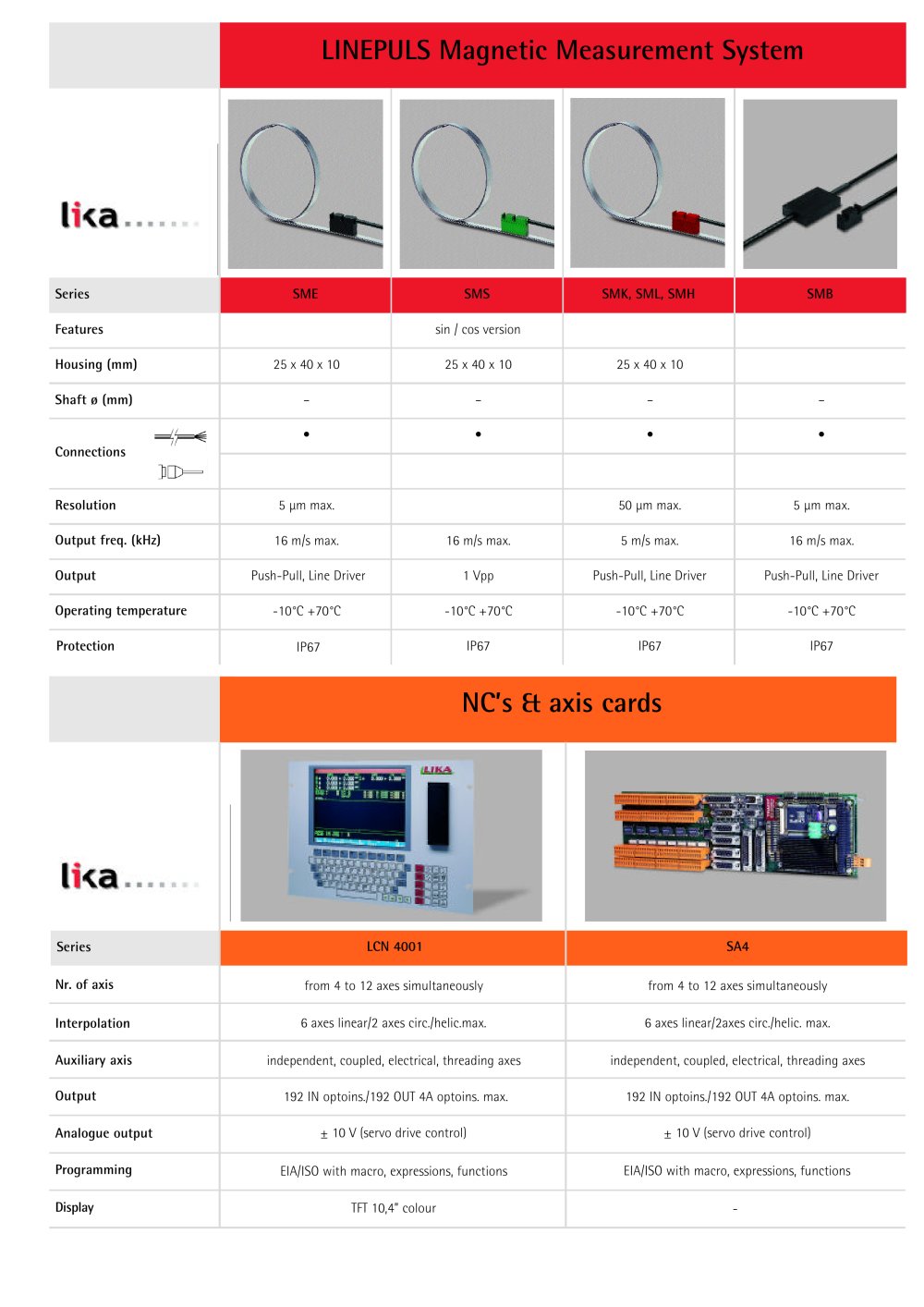

		LINEPULS Magnetic Measurement System
	IRa....		^^^^	I \ ü i
	Series	SME		SMS	SMK, SML, SMH	SMB
	Features			sin / cos version
	Housing (mm)	25 x 40 x 10		25 x 40 x 10	25 x 40 x 10
	Shaft 0 (mm)	-		-	-	-
	Connections	•		•	_•	_•
	Connections
	Resolution	5 urn max.			50 um max.	5 urn max.
	Output freq. (kHz)	16 m/s max.		16 m/s max.	5 m/s max.	16 m/s max.
	Output	Push-Pull, Line Driver		1 Vpp	Push-Pull, Line Driver	Push-Pull, Line Driver
	Operating temperature	-10°C +70°C		-10°C +70°C	-10°C +70°C	-10°C +70°C
	Protection	IP67		IP67	IP67	IP67


		NC's & axis cards

	Series	1	LCN 4001	SA4
	Nr. of axis	from 4 to 12 axes simultaneously		from 4 to 12 axes simultaneously
	Interpolation	6 axes linear/2 axes circ./helic.max.		6 axes linear/2axes circ./helic. max.
	Auxiliary axis	independent, coupled, electrical, threading axes		independent, coupled, electrical, threading axes
	Output	192 IN optoins./192 OUT 4A optoins. max.		192 IN optoins./192 OUT 4A optoins. max.
	Analogue output	± 10 V (servo drive control)		± 10 V (servo drive control)
	Programming	EIA/ISO with macro, expressions, functions		EIA/ISO with macro, expressions, functions
	Display	TFT 10,4" colour		-
