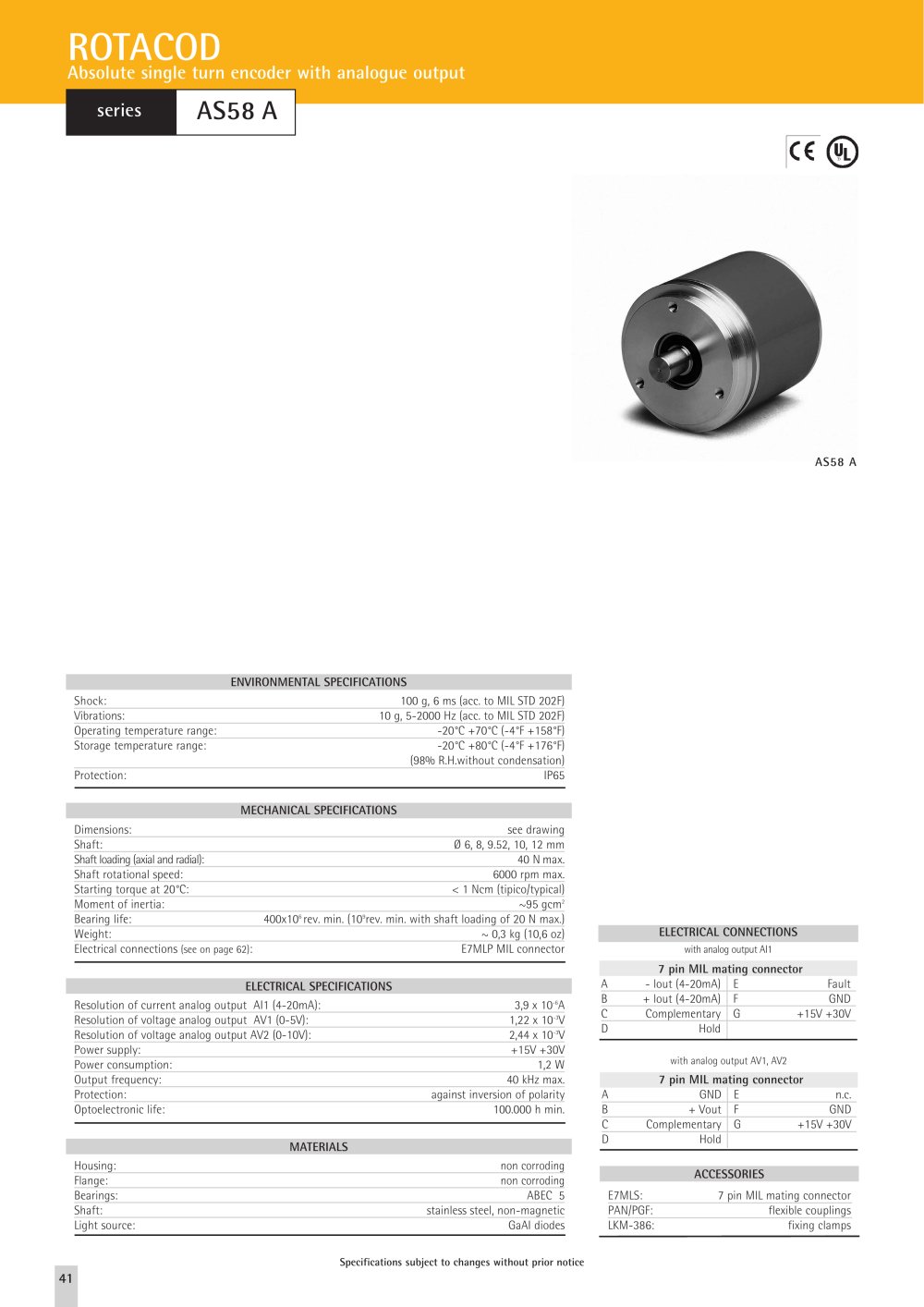

Absolujte single turn encodei
■ with analogue output
[
AS58 A
series
AS58 A
ENVIRONMENTAL SPECIFICATIONS
Shock:
100 g, 6 ms (acc. to MIL STD 202F)
Vibrations:
10 g, 5-2000 Hz (acc. to MIL STD 202F)
Operating temperature range:
-20°C +70°C (-4°F +158°F)
Storage temperature range:
-20°C +80°C (-4°F +176°F)
(98% R.H.without condensation)
Protection: IP65
MECHANICAL SPECIFICATIONS
Dimensions:
see drawing
Shaft:
0 6, 8, 9.52, 10, 12 mm
Shaft loading (axial and radial):
40 N max.
Shaft rotational speed:
6000 rpm max.
Starting torque at 20°C:
< 1 Ncm (tipico/typical)
Moment of inertia:
~95 gcm2
Bearing life: 400x106 rev. min. (10srev. min.
with shaft loading of 20 N max.)
Weight:
~ 0,3 kg (10,6 oz)
Electrical connections (see on page 62):
E7MLP MIL connector
ELECTRICAL SPECIFICATIONS
Resolution of current analog output AI1 (4-20mA):
3,9 x 10-6A
Resolution of voltage analog output AV1 (0-5V):
1,22 x 10-3V
Resolution of voltage analog output AV2 (0-10V):
2,44 x 10-3V
Power supply:
+15V +30V
Power consumption:
1,2 W
Output frequency:
40 kHz max.
Protection:
against inversion of polarity
Optoelectronic life:
100.000 h min.
MATERIALS
Housing:
non corroding
Flange:
non corroding
Bearings:
ABEC 5
Shaft:
stainless steel, non-magnetic
Light source:
GaAl diodes
ELECTRICAL CONNECTIONS
with analog output AI1 7 pin MIL mating connector
B
+ lout (4-20mA)
F
GND
C
Complementary
G
+ 15V +30V
D
Hold
with analog output AV1, AV2 7 pin MIL mating connector
A
GND
E
n.c.
B
+ Vout
F
GND
C
Complementary
G
+ 15V +30V
D
Hold
ACCESSORIES
E7MLS:
7 pin MIL mating connector
PAN/PGF:
LKM-386:
fixing clamps
Specifications subject to changes without prior notice
41
