www.lika.biz

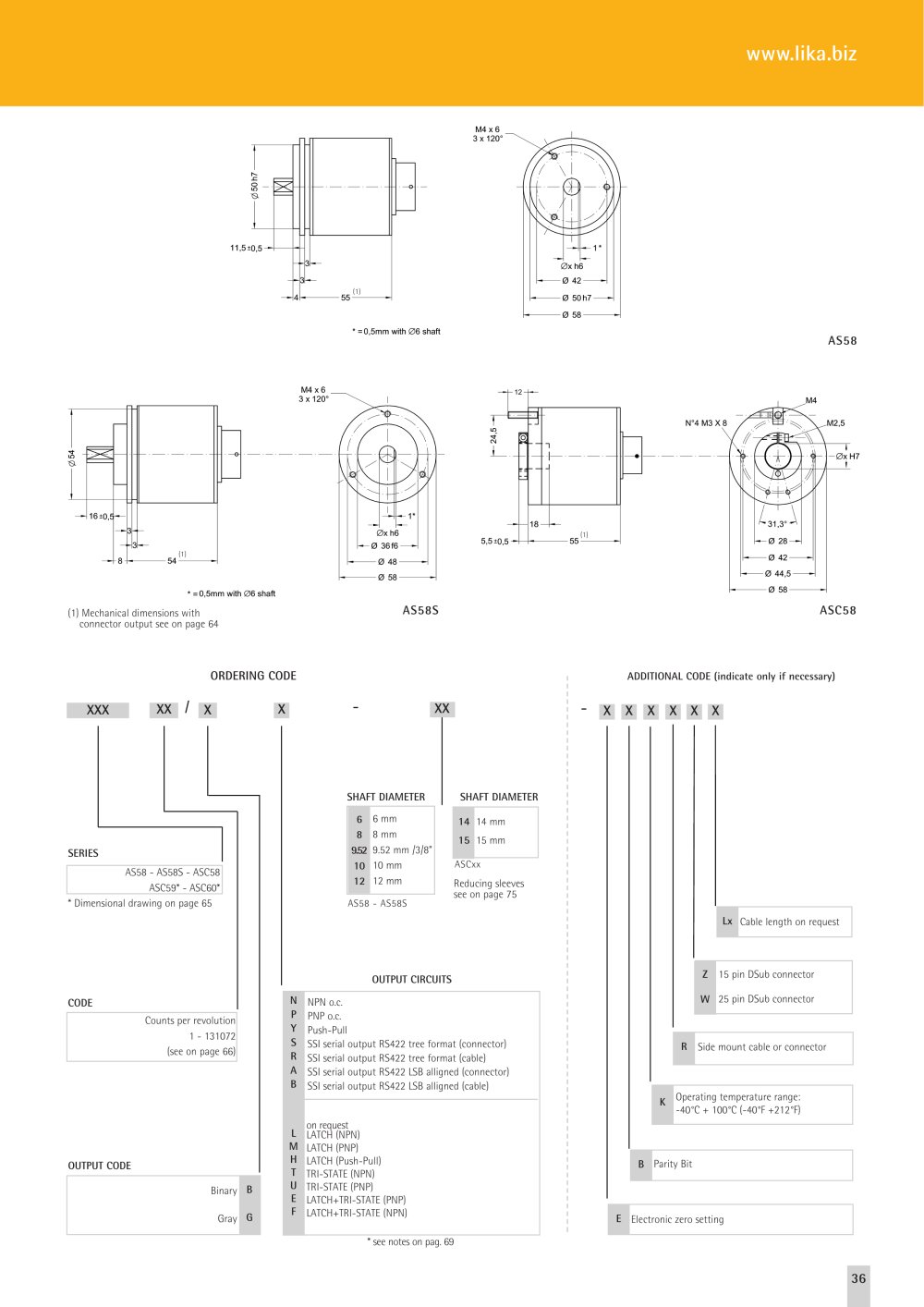

* = 0,5mm with 06 shaft

AS58

M4x6

3x120° \ I

= 0,5mm with 06 shaft

AS58S

ASC58

(1) Mechanical dimensions with connector output see on page 64

ORDERING CODE XXX XX / X X

ADDITIONAL CODE (indicate only if necessary) X X X X X X

SHAFT DIAMETER


	14	14 mm
	15	15 mm


	6	6 mm
	8	8 mm
	9.52	9.52 mm /3/8"
	10	10 mm
	12	12 mm
	AS58	- AS58S

SERIES

ASCxx

Reducing sleeves see on page 75

AS58 - AS58S - ASC58 ASC59* - ASC60* * Dimensional drawing on page 65

Lx Cable length on request

Z 15 pin Dsub connector W 25 pin DSub connector

OUTPUT CIRCUITS

NPN o.c. PNP o.c. Push-Pull

SSI serial output RS422 tree format (connector) SSI serial output RS422 tree format (cable) SSI serial output RS422 LSB alligned (connector) SSI serial output RS422 LSB alligned (cable)

CODE

Counts per revolution 1 - 131072 (see on page 66)

R Side mount cable or connector

K Operating temperature range: -40°C + 100°C (-40°F +212°F)

on request LATCH (NPN) LATCH (PNP)

LATCH (Push-Pull)

TRI-STATE (NPN) TRI-STATE (PNP) LATCH+TRI-STATE (PNP) LATCH+TRI-STATE (NPN)

B Parity Bit

OUTPUT CODE

Binary B Gray G

E Electronic zero setting

* see notes on pag. 69
