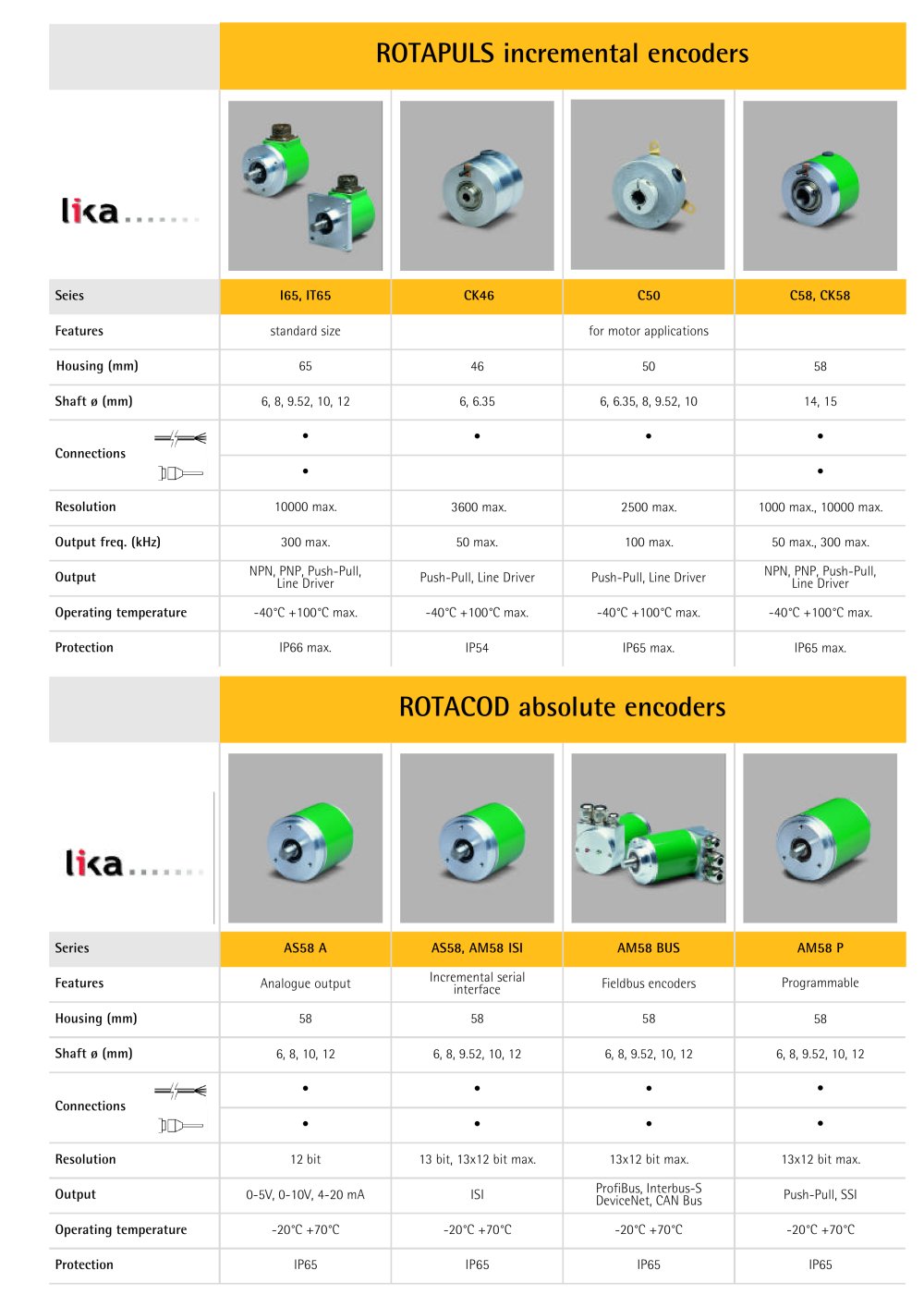

ROTAPULS incremental encoders


	Ika.....					*
	Seies	165, IT65		CK46	C50	C58, CK58
	Features	standard size			for motor applications
	Housing (mm)	65		46	50	58
	Shaft 0 (mm)	6, 8, 9.52, 10, 12		6, 6.35	6, 6.35, 8, 9.52, 10	14, 15
	Connections	•		_•	_•	_•
	Connections	•				_•
	Resolution	10000 max.		3600 max.	2500 max.	1000 max., 10000 max.
	Output freq. (kHz)	300 max.		50 max.	100 max.	50 max., 300 max.
	Output	NPN, PNP, Push-Pull, Line Driver		Push-Pull, Line Driver	Push-Pull, Line Driver	NPN, PNP, Push-Pull, Line Driver
	Operating temperature	-40°C +100°C max.		-40°C +100°C max.	-40°C + 100°C max.	-40°C +100°C max.
	Protection	IP66 max.		IP54	IP65 max.	IP65 max.

ROTACOD absolute encoders


	Series	AS58 A	AS58, AM58 ISI	AM58 BUS	AM58 P
	Features	Analogue output	Incremental serial interface	Fieldbus encoders	Programmable
	Housing (mm)	58	58	58	58
	Shaft 0 (mm)	6, 8, 10, 12	6, 8, 9.52, 10, 12	6, 8, 9.52, 10, 12	6, 8, 9.52, 10, 12
	Connections	_•	_•	•	_•
	Connections	_•	_•	•	_•
	Resolution	12 bit	13 bit, 13x1 2 bit max.	13x12 bit max.	13x12 bit max.
	Output	0-5V, 0-10V, 4-20 mA	ISI	ProfiBus, Interbus-S DeviceNet, CAN Bus	Push-Pull, SSI
	Operating temperature	-20°C +70°C	-20°C +70°C	-20°C +70°C	-20°C +70°C
	Protection	IP65	IP65	IP65	IP65
