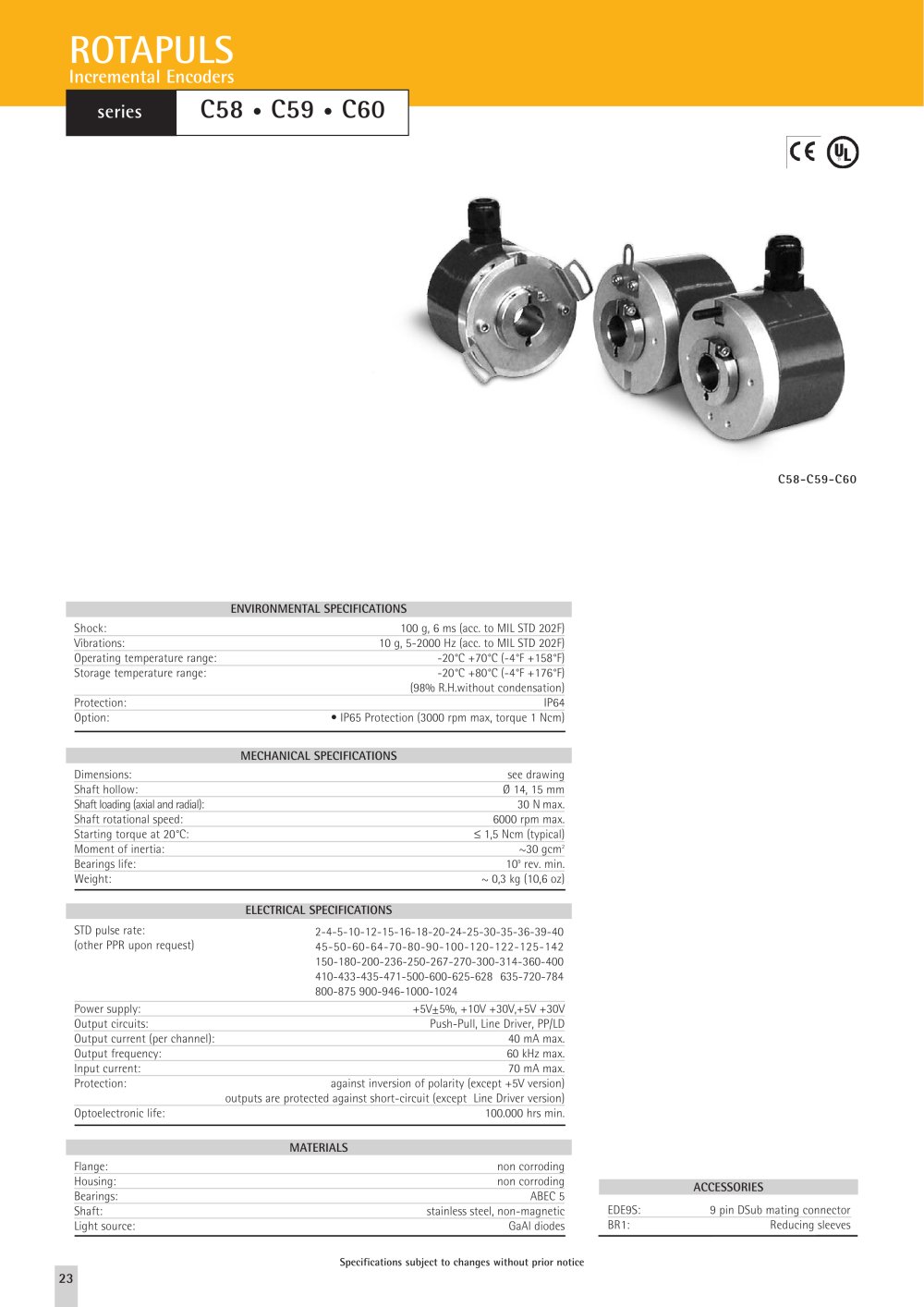

| | | C58-C59-C60 | | |
| | | |
| | | ENVIRONMENTAL SPECIFICATIONS | | |
| | | |
| | | | | | | | | | Shock: | 100 g, 6 ms (acc. to MIL STD 202F) | | | | Vibrations: | 10 g, 5-2000 Hz (acc. to MIL STD 202F) | | | | Operating temperature range: | -20°C +70°C (-4°F +158°F) | | | | Storage temperature range: | -20°C +80°C (-4°F +176°F) | | | | | (98% R.H.without condensation) | | | | Protection: | IP64 | | | | | | | | | |
| | | |
| | | Option: • IP65 Protection (3000 rpm max, torque 1 Ncm) | | |
| | | |
| | | MECHANICAL SPECIFICATIONS | | |
| | | | | | | | | | Dimensions: | see drawing | | | | Shaft hollow: | 0 14, 15 mm | | | | Shaft loading (axial and radial): | 30 N max. | | | | Shaft rotational speed: | 6000 rpm max. | | | | Starting torque at 20°C: | < 1,5 Ncm (typical) | | | | Moment of inertia: | ~30 gcm2 | | | | Bearings life: | 109 rev. min. | | | | | | | | | |
| | | |
| | | Weight: ~ 0,3 kg (10,6 oz) | | |
| | | |
| | | | | | | | | | ELECTRICAL SPECIFICATIONS | | | | STD pulse rate: | 2-4-5-10-12-15-16-18-20-24-25-30-35-36-39-40 | | | | (other PPR upon request) | 45-50-60-64-70-80-90-100-120-122-125-142 | | | | | 150-180-200-236-250-267-270-300-314-360-400 | | | | | 410-433-435-471-500-600-625-628 635-720-784 | | | | | 800-875 900-946-1000-1024 | | | | Power supply: | +5V±5%, +10V +30V,+5V +30V | | | | Output circuits: | Push-Pull, Line Driver, PP/LD | | | | Output current (per channel): | 40 mA max. | | | | Output frequency: | 60 kHz max. | | | | Input current: | 70 mA max. | | | | Protection: | against inversion of polarity (except +5V version) | | | | | outputs are protected against short-circuit (except Line Driver version) | | | | | | | | | |
| | | |
| | | Optoelectronic life: 100.000 hrs min. | | |
| | | |
| | | MATERIALS | | |
| | | |
| | | | | | | | | | | | Flange: | non corroding | | | | | | Housing: | non corroding | | ACCESSORIES | | | | Bearings: | ABEC 5 | | | | | | Shaft: | stainless steel, non-magnetic | EDE9S: | 9 pin DSub mating connector | | | | Light source: | GaAl diodes | BR1: | Reducing sleeves | | | | | | | | | | | |
| | | |
| | | Specifications subject to changes without prior notice | | |
| | | |
