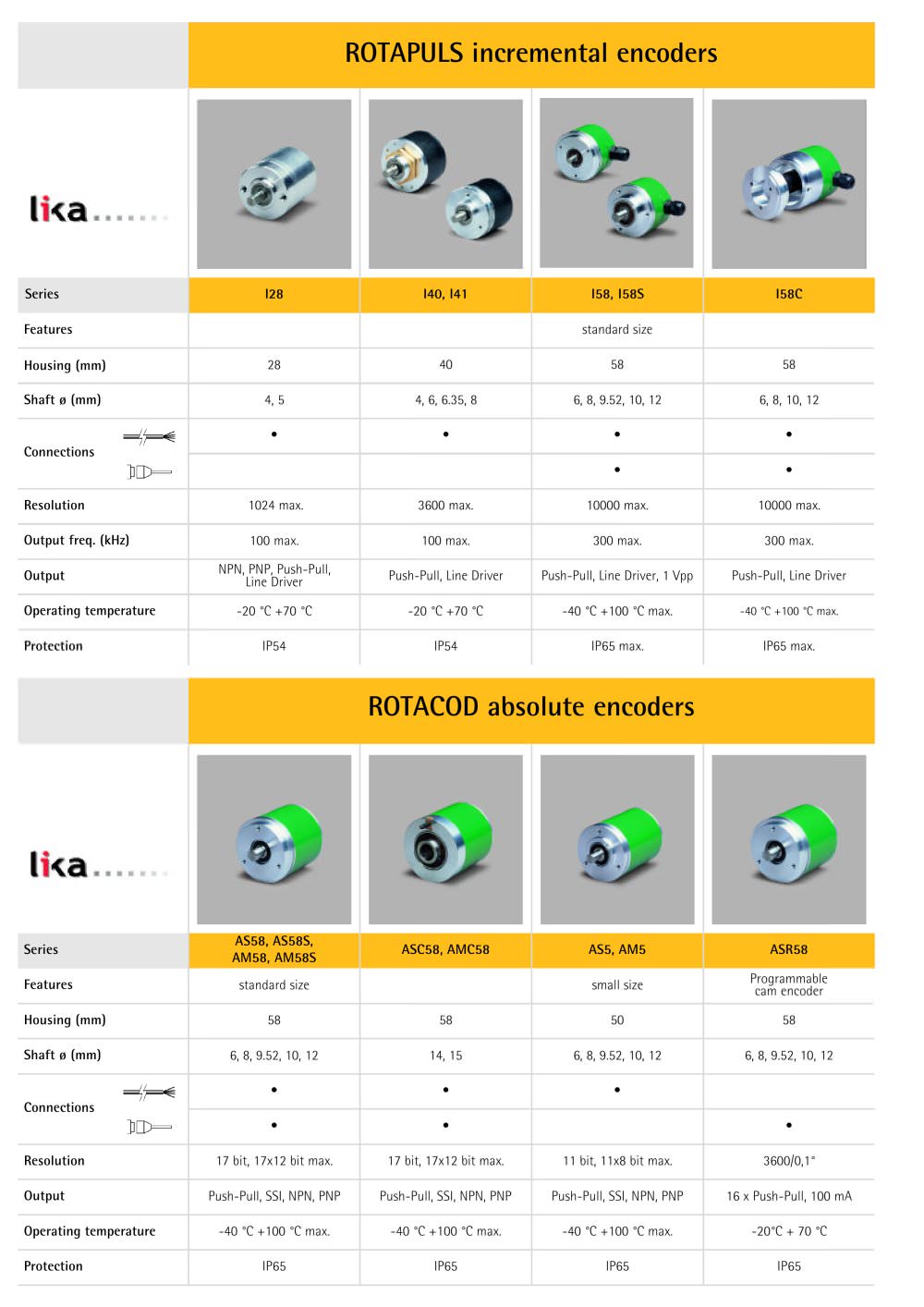

		ROTAPULS incremental encoders
	Ika......			*TT TT*	^!>*
	Series		I40, I41	I58, I58S	I58C
	Features			standard size
	Housing (mm)	28	40	58	58
	Shaft 0 (mm)	4, 5	4, 6, 6.35, 8	6, 8, 9.52, 10, 12	6, 8, 10, 12
	Connections	•	_•	_•	_•
	Connections			_•	_•
	Resolution	1024 max.	3600 max.	10000 max.	10000 max.
	Output freq. (kHz)	100 max.	100 max.	300 max.	300 max.
	Output	NPN, PNP, Push-Pull, Line Driver	Push-Pull, Line Driver	Push-Pull, Line Driver, 1 Vpp	Push-Pull, Line Driver
	Operating temperature	-20 °C +70 °C	-20 °C +70 °C	-40 °C +100 °C max.	-40 °C +100 °C max.
	Protection	IP54	IP54	IP65 max.	IP65 max.

ROTACOD absolute encoders


	Series	AS58, AS58S, AM58, AM58S	ASC58, AMC58	AS5, AM5	ASR58
	Features	standard size		small size	Programmable cam encoder
	Housing (mm)	58	58	50	58
	Shaft 0 (mm)	6, 8, 9.52, 10, 12	14, 15	6, 8, 9.52, 10, 12	6, 8, 9.52, 10, 12
	Connections	_•	_•	_•
	Connections	_•	_•		_•
	Resolution	17 bit, 17x12 bit max.	17 bit, 17x12 bit max.	11 bit, 11x8 bit max.	3600/0,1°
	Output	Push-Pull, SSI, NPN, PNP	Push-Pull, SSI, NPN, PNP	Push-Pull, SSI, NPN, PNP	16 x Push-Pull, 100 mA
	Operating temperature	-40 °C +100 °C max.	-40 °C +100 °C max.	-40 °C +100 °C max.	-20°C + 70 °C
	Protection	IP65	IP65	IP65	IP65
