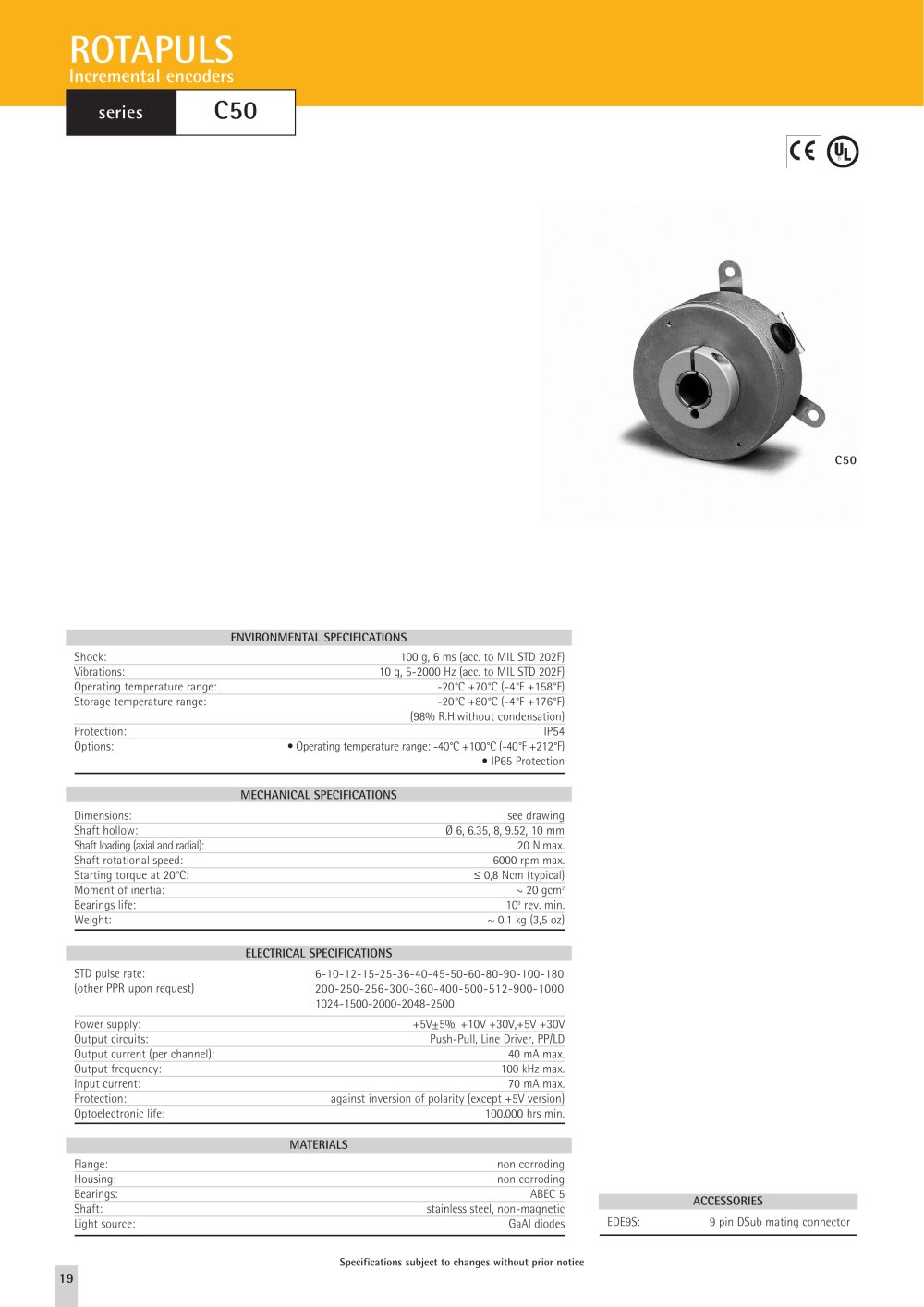

ROTAPU LS

ce®

ENVIRONMENTAL SPECIFICATIONS


	Shock:	100 g, 6 ms (acc. to MIL STD 202F)
	Vibrations:	10 g, 5-2000 Hz (acc. to MIL STD 202F)
	Operating temperature range:	-20°C +70°C (-4°F + 158°F)
	Storage temperature range:	-20°C +80°C (-4°F +176°F)
		(98% R.H.without condensation)
	Protection:	IP54
	Options:	• Operating temperature range: -40°C +100°C (-40°F +212°F)
		• IP65 Protection

MECHANICAL SPECIFICATIONS


	Dimensions:	see drawing
	Shaft hollow:	0 6, 6.35, 8, 9.52, 10 mm
	Shaft loading (axial and radial):	20 N max.
	Shaft rotational speed:	6000 rpm max.
	Starting torque at 20°C:	< 0,8 Ncm (typical)
	Moment of inertia:	~20 gcm²
	Bearings life:	10⁹ rev. min.
	Weight:	~ 0,1 kg (3,5 oz)

ELECTRICAL SPECIFICATIONS

STD pulse rate: 6-10-12-15-25-36-40-45-50-60-80-90-100-180

(other PPR upon request) 200-250-256-300-360-400-500-512-900-1000

1024-1500-2000-2048-2500


	Power supply:	+5V±5%, +10V +30V,+5V +30V
	Output circuits:	Push-Pull, Line Driver, PP/LD
	Output current (per channel):	40 mA max.
	Output frequency:	100 kHz max.
	Input current:	70 mA max.
	Protection:	against inversion of polarity (except +5V version)

Optoelectronic life: 100.000 hrs min.

MATERIALS


	Flange:	non corroding
	Housing:	non corroding
	Bearings:	ABEC 5
	Shaft:	stainless steel, non-magnetic
	Light source:	GaAl diodes

ACCESSORIES

9 pin DSub mating connector

EDE9S:

Specifications subject to changes without prior notice
