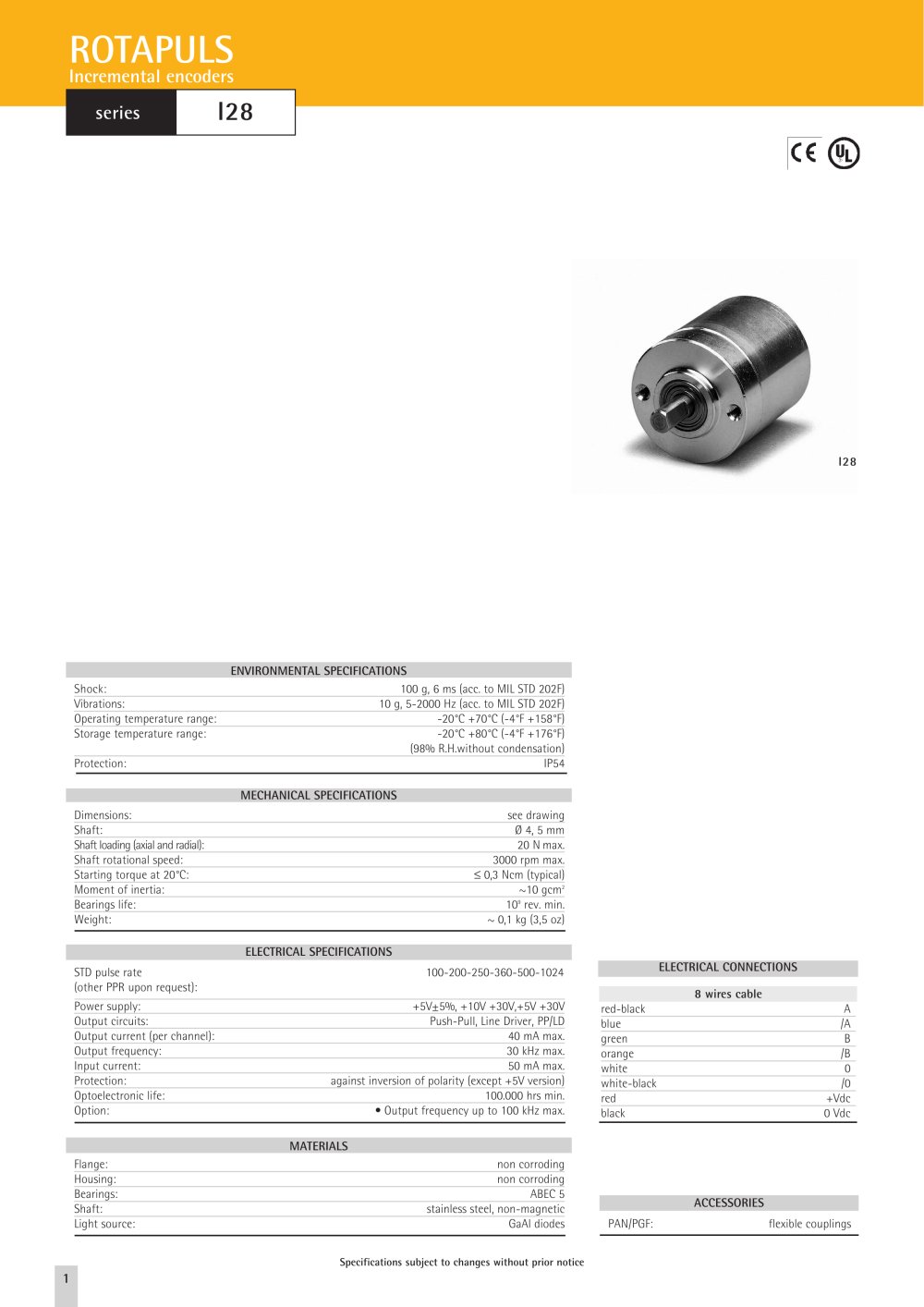

ROTAPU LS

[

I28

series

Ci ffi

ENVIRONMENTAL SPECIFICATIONS


	Shock:	100 g, 6 ms (acc. to MIL STD 202F)
	Vibrations:	10 g, 5-2000 Hz (acc. to MIL STD 202F)
	Operating temperature range:	-20°C +70°C (-4°F +158°F)
	Storage temperature range:	-20°C +80°C (-4°F +176°f)
		(98% R.H.without condensation)

Protection: IP54

MECHANICAL SPECIFICATIONS


	Dimensions:	see drawing
	Shaft:	0 4, 5 mm
	Shaft loading (axial and radial):	20 N max.
	Shaft rotational speed:	3000 rpm max.
	Starting torque at 20°C:	< 0,3 Ncm (typical)
	Moment of inertia:	~10gcm²
	Bearings life:	10^s rev. min.

Weight: ~ 0,1 kg (3,5 oz)

ELECTRICAL SPECIFICATIONS


STD pulse rate	100-200-250-360-500-1024	ELECTRICAL CONNECTIONS
(other PPR upon request):
(other PPR upon request):		8 wires cable
Power supply:	+5V±5%, +10V +30V,+5V +30V	red-black	A
Output circuits:	Push-Pull, Line Driver, PP/LD	blue	/A
Output current (per channel):	40 mA max.	green	B
Output frequency:	30 kHz max.	orange	/B
Input current:	50 mA max.	white	0
Protection:	against inversion of polarity (except +5V version)	white-black	/0
Optoelectronic life:	100.000 hrs min.	red	+Vdc

Option: • Output frequency up to 100 kHz max. bl_ack 0 Vd_c

MATERIALS


Flange:	non corroding
Housing:	non corroding
Bearings:	ABEC 5
Bearings:	ABEC 5		ACCESSORIES
Shaft:	stainless steel, non-magnetic		ACCESSORIES
Light source:	GaAl diodes	PAN/PGF:	flexible couplings

Specifications subject to changes without prior notice
