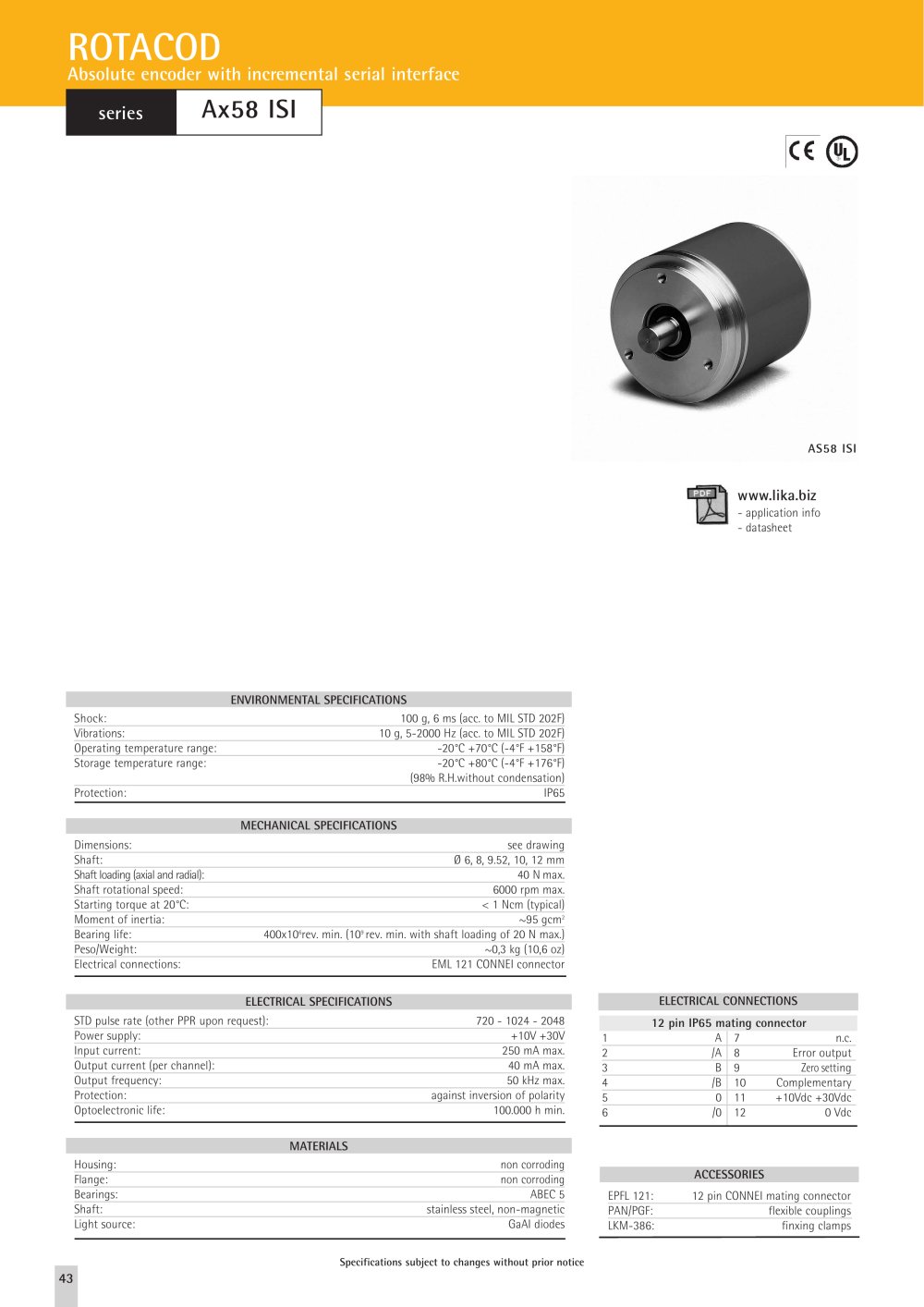

incremental serial interface

AS58 ISI

www.lika.biz

application info datasheet

ENVIRONMENTAL SPECIFICATIONS


	Shock:	100 g, 6 ms (acc. to MIL STD 202F)
	Vibrations:	10 g, 5-2000 Hz (acc. to MIL STD 202F)
	Operating temperature range:	-20°C +70°C (-4°F + 158°F)
	Storage temperature range:	-20°C +80°C (-4°F + 176°F)
		(98% R.H.without condensation)

Protection: IP65

MECHANICAL SPECIFICATIONS


	Dimensions:	see drawing
	Shaft:	0 6, 8, 9.52, 10, 12 mm
	Shaft loading (axial and radial):	40 N max.
	Shaft rotational speed:	6000 rpm max.
	Starting torque at 20°C:	< 1 Ncm (typical)
	Moment of inertia:	~95 gcm²
	Bearing life:	400x10⁶rev. min. (10⁹ rev. min. with shaft loading of 20 N max.)
	Peso/Weight:	~0,3 kg (10,6 oz)

Electrical connections: EML 121 CONNEI connector

ELECTRICAL SPECIFICATIONS ELECTRICAL CONNECTIONS

STD pulse rate (other PPR upon request): 720 - 1024 - 2048 12 pin IP65 mating connector


Power supply:	+10V +30V	1	A	7	n.c.
Input current:	250 mA max.	2	/A	8	Error output
Output current (per channel):	40 mA max.	3	B	9	Zero setting
Output frequency:	50 kHz max.	4	/B	10	Complementary
Protection:	against inversion of polarity	5	0	11	+ 10Vdc +30Vdc
Optoelectronic life:	100.000 h min.	6	/0	12	0 Vdc

MATERIALS


Housing:	non corroding
Flange:	non corroding		ACCESSORIES
Bearings:	ABEC 5	EPFL121:	12 pin CONNEI mating connector
Shaft:	stainless steel, non-magnetic	PAN/PGF:	flexible couplings
Light source:	GaAl diodes	LKM-386:	finxing clamps

Specifications subject to changes without prior notice
