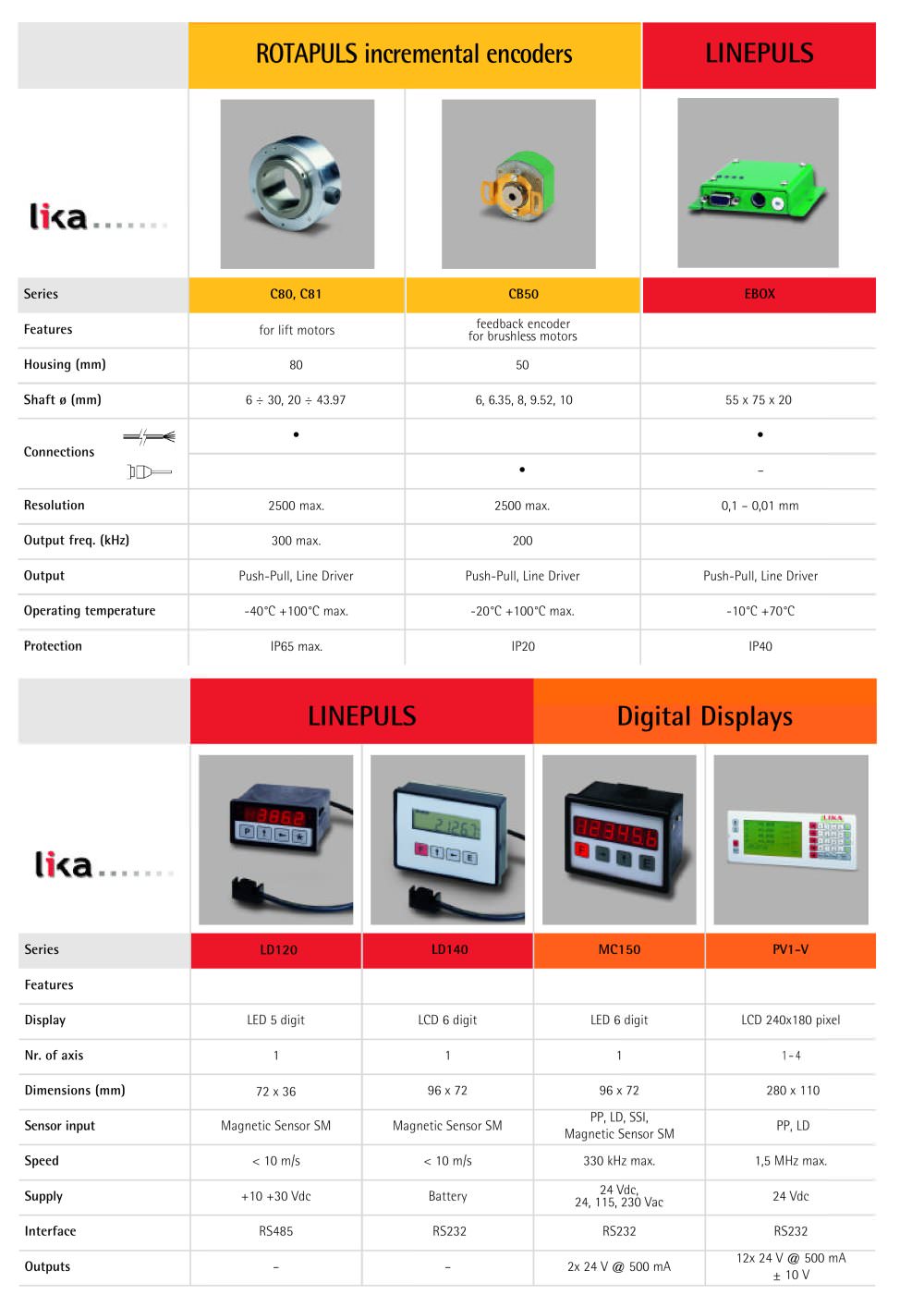

LINEPULS

ROTAPULS incremental encoders



	Series	C80, C81	CB50	EBOX
	Features	for lift motors	feedback encoder for brushless motors
	Housing (mm)	80	50
	Shaft 0 (mm)	6 - 30, 20 - 43.97	6, 6.35, 8, 9.52, 10	55 x 75 x 20
	Connections	•		•
	Connections		•	-
	Resolution	2500 max.	2500 max.	0,1 - 0,01 mm
	Output freq. (kHz)	300 max.	200
	Output	Push-Pull, Line Driver	Push-Pull, Line Driver	Push-Pull, Line Driver
	Operating temperature	-40°C +100°C max.	-20°C +100°C max.	-10°C +70°C
	Protection	IP65 max.	IP20	IP40

LINEPULS Digital Displays


	Ika.....	^^^^^^				I 1
	Series	LD120	LD140	MC150			^PV1-V
	Features
	Display	LED 5 digit	LCD 6 digit	LED 6 digit			LCD 240x180 pixel
	Nr. of axis	1	1	1			1 - 4
	Dimensions (mm)	72 x 36	96 x 72	96 x 72			280x 110
	Sensor input	Magnetic Sensor SM	Magnetic Sensor SM	PP, LD, SSI, Magnetic Sensor SM			PP, LD
	Speed	< 10 m/s	< 10 m/s	330 kHz max.			1,5 MHz max.
	Supply	+ 10 +30 Vdc	Battery	24 Vdc, 24, 115, 230 Vac			24 Vdc
	Interface	RS485	RS232	RS232			RS232
	Outputs	^-	^-	2x 24 V @ 500 mA			12x 24 V @ 500 mA ± 10 V
