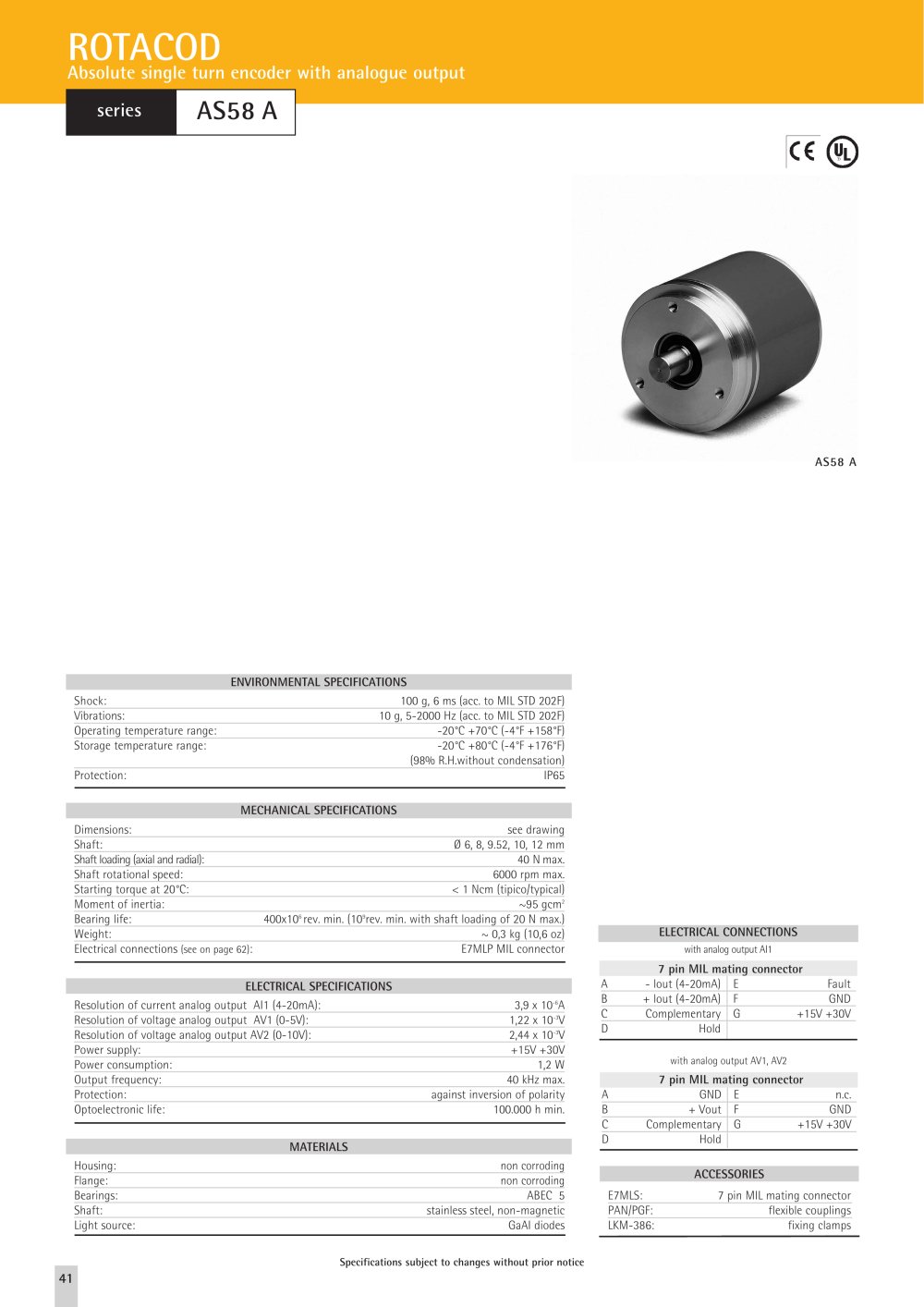

Absolujte single turn encodei

■ with analogue output

[

AS58 A

series

AS58 A

ENVIRONMENTAL SPECIFICATIONS


	Shock:	100 g, 6 ms (acc. to MIL STD 202F)
	Vibrations:	10 g, 5-2000 Hz (acc. to MIL STD 202F)
	Operating temperature range:	-20°C +70°C (-4°F +158°F)
	Storage temperature range:	-20°C +80°C (-4°F +176°F)
		(98% R.H.without condensation)

Protection: IP65

MECHANICAL SPECIFICATIONS

Dimensions:

see drawing


	Shaft:	0 6, 8, 9.52, 10, 12 mm
	Shaft loading (axial and radial):	40 N max.
	Shaft rotational speed:	6000 rpm max.
	Starting torque at 20°C:	< 1 Ncm (tipico/typical)
	Moment of inertia:	~95 gcm²
	Bearing life: 400x10⁶ rev. min. (10^srev. min.	with shaft loading of 20 N max.)
	Weight:	~ 0,3 kg (10,6 oz)
	Electrical connections (see on page 62):	E7MLP MIL connector

	ELECTRICAL SPECIFICATIONS
	Resolution of current analog output AI1 (4-20mA):	3,9 x 10^-6A
	Resolution of voltage analog output AV1 (0-5V):	1,22 x 10^-3V
	Resolution of voltage analog output AV2 (0-10V):	2,44 x 10^-3V
	Power supply:	+15V +30V
	Power consumption:	1,2 W
	Output frequency:	40 kHz max.
	Protection:	against inversion of polarity
	Optoelectronic life:	100.000 h min.

	MATERIALS
	Housing:	non corroding
	Flange:	non corroding
	Bearings:	ABEC 5
	Shaft:	stainless steel, non-magnetic
	Light source:	GaAl diodes

ELECTRICAL CONNECTIONS

with analog output AI1 7 pin MIL mating connector

with analog output AV1, AV2 7 pin MIL mating connector

PAN/PGF:

flexible couplings

LKM-386:

fixing clamps

Specifications subject to changes without prior notice
