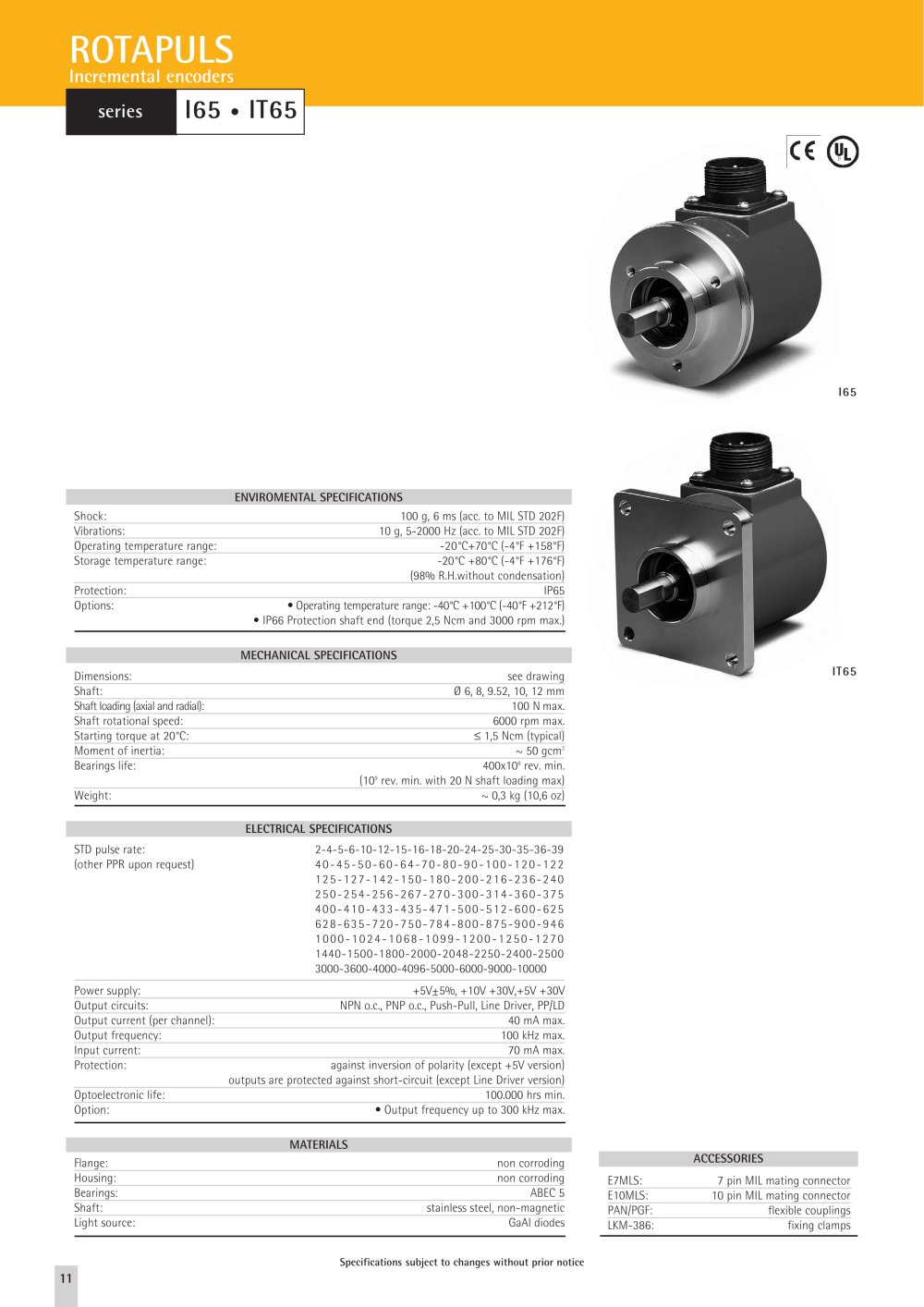

CAT ROTAPULS-ROTACOD E - LIKA - #19

Shock:

100 g, 6 ms (acc. to MIL STD 202F)

Vibrations:

10 g, 5-2000 Hz (acc. to MIL STD 202F)

Operating temperature range:

-20°C+70°C (-4°F +158°F)

Storage temperature range:

-20°C +80°C (-4°F +176°F) (98% R.H.without condensation)

Protection:

IP65

Options:

• Operating temperature range: -40°C +100°C (-40°F +212°F) • IP66 Protection shaft end (torque 2,5 Ncm and 3000 rpm max.)

Dimensions:

see drawing

Shaft:

0 6, 8, 9.52, 10, 12 mm

Shaft loading (axial and radial):

100 N max.

Shaft rotational speed:

6000 rpm max.

Starting torque at 20°C:

< 1,5 Ncm (typical)

Moment of inertia:

~50 gcm²

Bearings life:

400x10⁶ rev. min. (10⁹ rev. min. with 20 N shaft loading max)

Weight:

~ 0,3 kg (10,6 oz)

STD pulse rate:

(other PPR upon request)

2-4-5-6-10-12-15-16-18-20-24-25-30-35-36-39 40-45-50-60-64-70-80-90-100-12 0-122 125-127-142-150-180-2 00-2 16-23 6-2 40 250-25 4-256-267-270-3 00-3 1 4-3 60-375 400-410-433-43 5-471-500-512-600-62 5 628-63 5-720-750-78 4-800-875-900-9 46 1000-102 4-1068-1099-12 00-1250-1270

1440-1500-1800-2000-2048-2250-2400-2500 3000-3600-4000-4096-5000-6000-9000-10000

Power supply:

+5V±5%, +10V +30V,+5V +30V

Output circuits:

NPN o.c., PNP o.c., Push-Pull, Line Driver, PP/LD

Output current (per channel):

40 mA max.

Output frequency:

100 kHz max.

Input current:

70 mA max.

Protection:

against inversion of polarity (except +5V version) outputs are protected against short-circuit (except Line Driver version)

Optoelectronic life:

100.000 hrs min.

Option:

• Output frequency up to 300 kHz max.

Flange:

non corroding

Housing:

non corroding

E7MLS:

7 pin MIL mating connector

Bearings:

ABEC 5

E10MLS:

10 pin MIL mating connector

Shaft:

stainless steel, non-magnetic

PAN/PGF:

flexible couplings

Light source:

GaAl diodes

LKM-386:

fixing clamps
