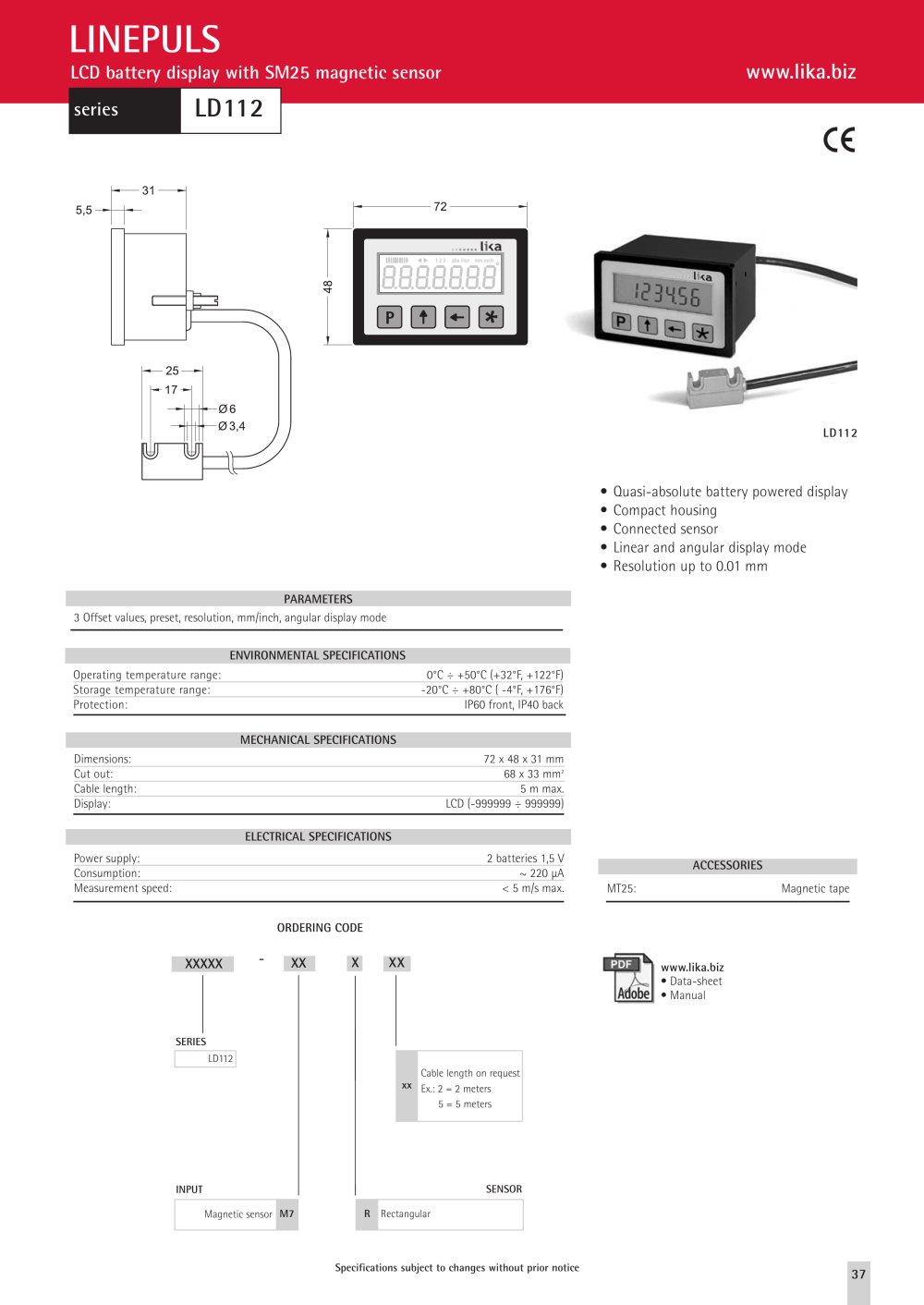

LINEPULS
LCD battery display with SM25 magnetic sensor
www.lika.biz
series
LD112
LD112•Quasi-absolute battery powered display•Compact housing •Connected sensor •Linear and angular display mode •Resolution up to 0.01 mm
PARAMETERS 3 Offset values, preset, resolution, mm/inch,angular display mode ENVIRONMENTAL SPECIFICATIONS Operating temperature range:0°C ÷+50°C (+32°F, +122°F) Storage temperature range:-20°C ÷+80°C ( -4°F, +176°F)Protection:IP60 front, IP40 back MECHANICAL SPECIFICATIONS Dimensions:72 x 48 x 31 mm Cut out:68 x 33 mm2 Cable length:5 m max.Display:LCD (-999999 ÷999999) ELECTRICAL SPECIFICATIONSORDERING CODE Power supply:2 batteries 1,5 V Consumption:~ 220 µAMeasurement speed:
XXXXX - XX X XX
www.lika.biz • Data-sheet • ManualSERIES LD112 Cable length on requestEx.: 2 = 2 meters5 = 5 meters xx Magnetic sensor M7INPUT RSENSOR Rectangular Specifications subject to changes without prior notice
