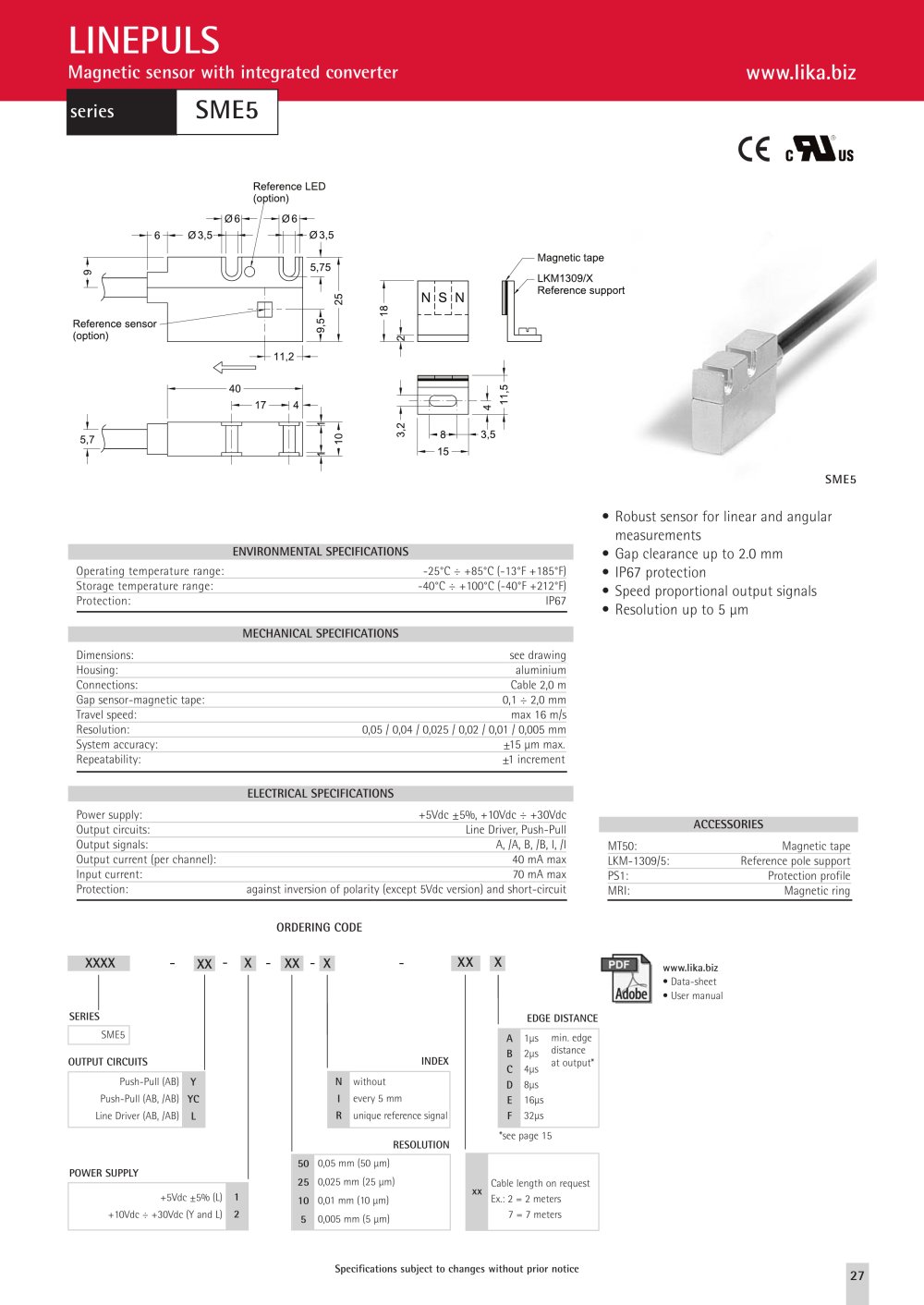

LINEPULS

Magnetic sensor with integrated converter

www.lika.biz

series

SME5

SME5

•Robust sensor for linear and angular measurements• Gap clearance up to 2.0 mm •IP67 protection •Speed proportional output signals •Resolution up to 5 µm

ENVIRONMENTAL SPECIFICATIONS Operating temperature range:-25°C ÷+85°C (-13°F +185°F) Storage temperature range:-40°C ÷+100°C (-40°F +212°F) Protection:IP67 MECHANICAL SPECIFICATIONS Dimensions:see drawing Housing:aluminium Connections:Cable 2,0 m Gap sensor-magnetic tape:0,1 ÷2,0 mm Travel speed:max 16 m/s Resolution:0,05 / 0,04 / 0,025 / 0,02 / 0,01 / 0,005 mm System accuracy:±15 µm max. Repeatability:±1 increment ELECTRICAL SPECIFICATIONS Power supply:+5Vdc ±5%, +10Vdc ÷+30Vdc Output circuits:Line Driver, Push-Pull ACCESSORIES Output signals:A, /A, B, /B, I, /I MT50:Magnetic tape Output current (per channel):40 mA max LKM-1309/5:Reference pole support Input current:70 mA maxProtection:against inversion of polarity (except 5Vdc version) and short-circuit PS1:Protection profileMRI:Magnetic ring ORDERING CODE

XXXX ----- XX X XX X XX X

www.lika.biz • Data-sheet • User manual EDGE DISTANCE AB CDEF 1µs 2µs4µs8µs 16µs 32µs min. edge distance at output* Push-Pull (AB)Push-Pull (AB, /AB)Line Driver (AB, /AB)SME5 YYCL Specifications subject to changes without prior notice NIRINDEX withoutevery 5 mm unique reference signal *see page 15 50 25105RESOLUTION 0,05 mm (50 µm)0,025 mm (25 µm) 0,01 mm (10 µm) 0,005 mm (5 µm) 12 SERIESOUTPUT CIRCUITS POWER SUPPLY xx Cable length on request Ex.: 2 = 2 meters7 = 7 meters +5Vdc ±5% (L)+10Vdc ÷+30Vdc (Y and L)
