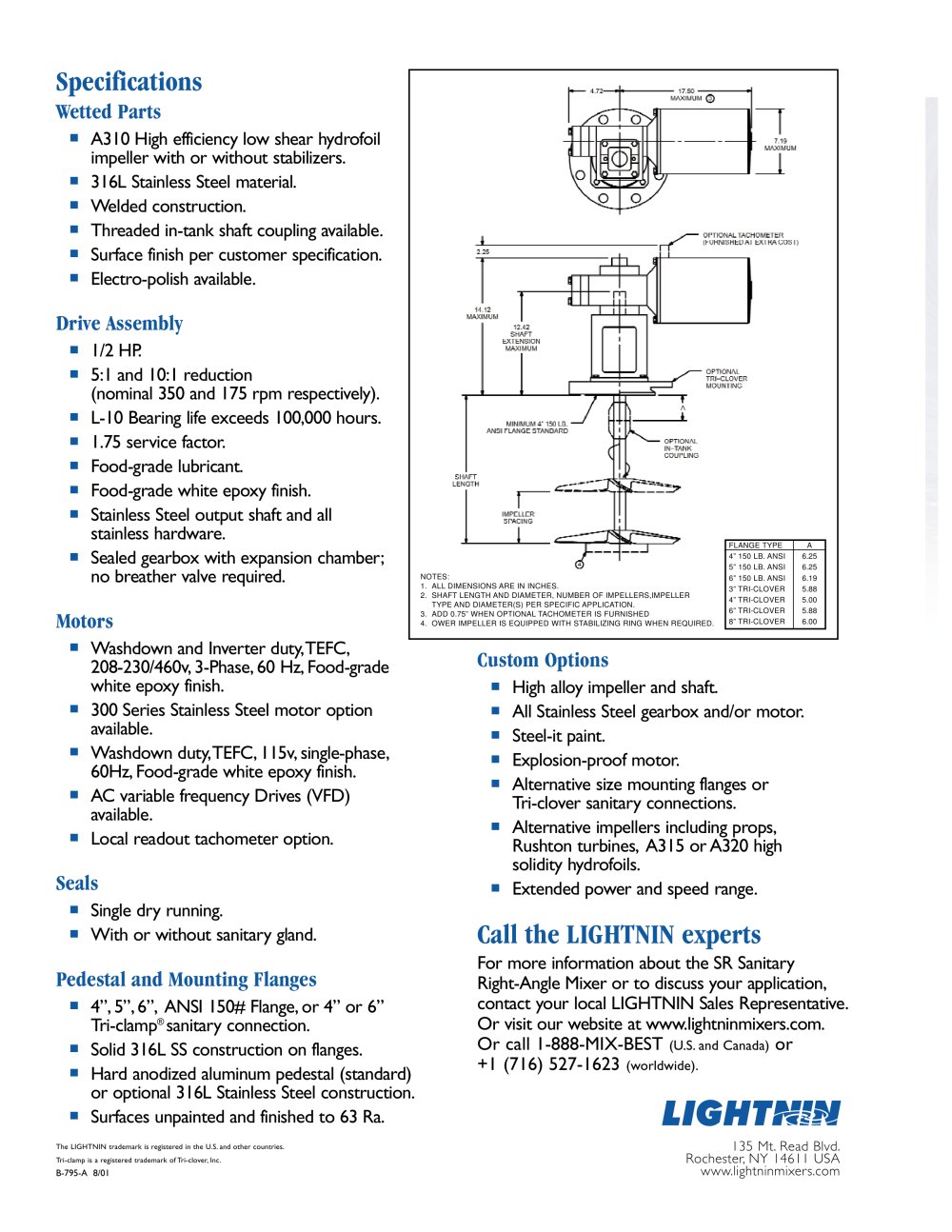

| Specifications Wetted Parts ■ A3I0 High efficiency low shear hydrofoil impeller with or without stabilizers. ^ 3I6L Stainless Steel material. ^ Welded construction. ^ Threaded in-tank shaft coupling available. ■ Surface finish per customer specification. ^ Electro-polish available. Drive Assembly ■ 1/2 HP ^ 5:1 and 10:1 reduction (nominal 350 and 175 rpm respectively). ^ L-10 Bearing life exceeds 100,000 hours. ■ I.75 service factor. ^ Food-grade lubricant. ^ Food-grade white epoxy finish. ■ Stainless Steel output shaft and all stainless hardware. ^ Sealed gearbox with expansion chamber; no breather valve required. Motors ^ Washdown and Inverter duty,TEFC, 208-230/460v, 3-Phase, 60 Hz, Food-grade white epoxy finish. ■ 300 Series Stainless Steel motor option available. ^ Washdown duty,TEFC, II5v, single-phase, 60Hz, Food-grade white epoxy finish. ^ AC variable frequency Drives (VFD) available. ■ Local readout tachometer option. Seals ■ Single dry running. ^ With or without sanitary gland. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MAXIMUM © | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■2. SHAFT tXltNSION MAXIMUM | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CFT ON.M TRI-CLOVER MQU N I INC | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| NOTES: 1. ALL DIMENSIONS ARE IN INCHES. 2. SHAFT LENGTH AND DIAMETER, NUMBER OF IMPELLERS,IMPELLER TYPE AND DIAMETER(S) PER SPECIFIC APPLICATION. 3. ADD 0.75" WHEN OPTIONALTACHOMETER IS FURNISHED 4. OWER IMPELLER IS EQUIPPED WITH STABILIZING RING WHEN REQUIRED. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Custom Options ■ High alloy impeller and shaft. ■ All Stainless Steel gearbox and/or motor. ■ Steel-it paint. ■ Explosion-proof motor. ■ Alternative size mounting flanges or Tri-clover sanitary connections. ■ Alternative impellers including props, Rushton turbines, A3I5 or A320 high solidity hydrofoils. ■ Extended power and speed range. Call the LIGHTNIN experts For more information about the SR Sanitary Right-Angle Mixer or to discuss your application, contact your local LIGHTNIN Sales Representative. Or visit our website at www.lightninmixers.com. Or call I-888-MIX-BEST (U.S.and Canada) or + I (7I6) 527-I623 (worldwide). LIGHTNIN | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pedestal and Mounting Flanges ■ 4", 5", 6", ANSI I50# Flange, or 4" or 6" Tri-clamp® sanitary connection. ■ Solid 3I6L SS construction on flanges. ■ Hard anodized aluminum pedestal (standard) or optional 3I6L Stainless Steel construction. ^ Surfaces unpainted and finished to 63 Ra. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 135 Mt. Read Blvd. Rochester NY 14611 USA www.lightninmixers.com | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| The LIGHTNIN trademark is registered in the U.S. and other countries. Tri-clamp is a registered trademark of Tri-clover, Inc. B-795-A 8/01 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
