With every agtator purchase, LIGHTNIN customers receive a product that has the built in value of years of mixing experience in almost every known fluid mixing application.

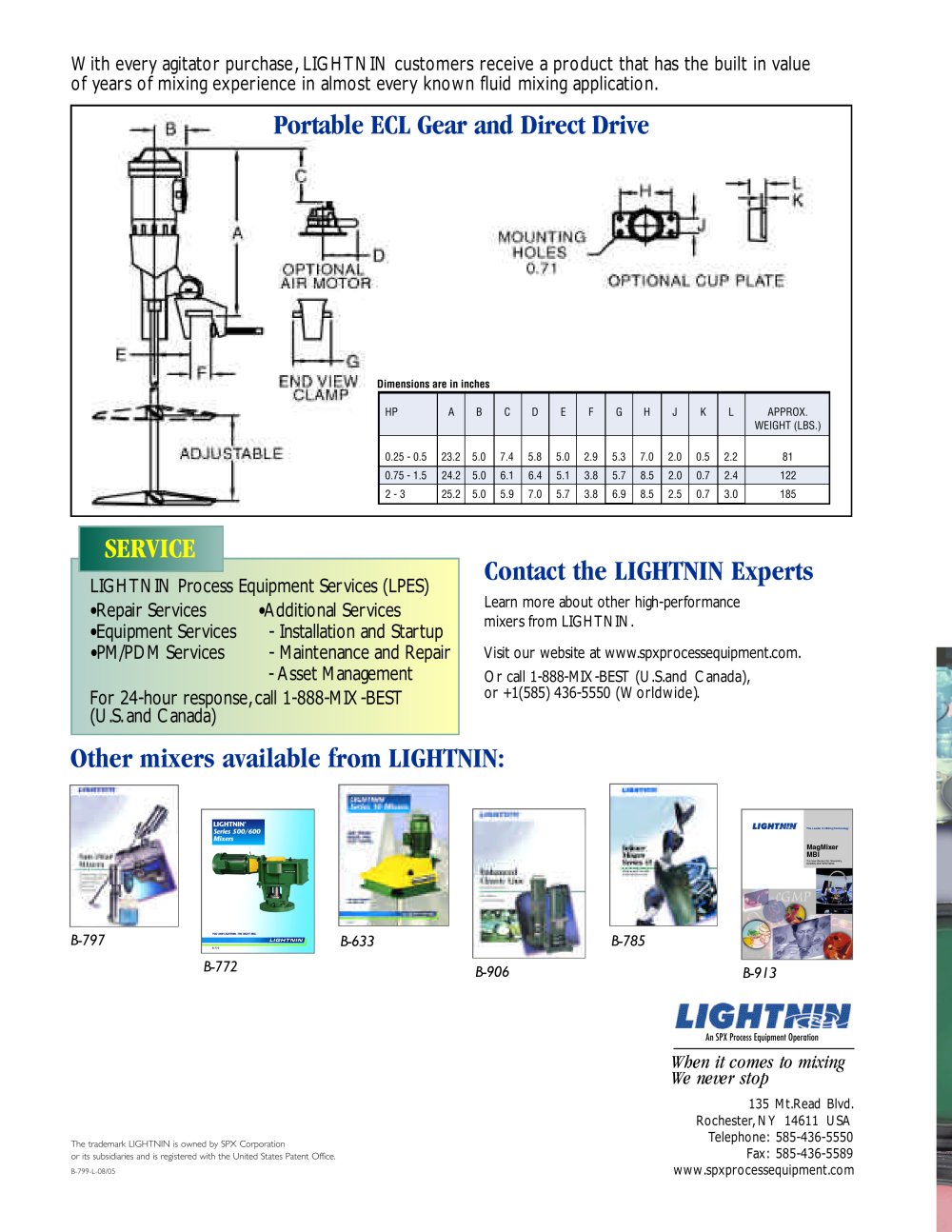

Portable ECL Gear and Direct Drive T

MOUNTING HOLES 0.71

QPTfQNAL AIR MOTOR

OPTIONAL С Li J* PLATE

Dimensions are in inches

CLAMP


HP	A	В	С	D	E	F	G	H	J	К	L	APPROX. WEIGHT (LBS.)
0.25-0.5	23.2	5.0	7.4	5.8	5.0	2.9	5.3	7.0	2.0	0.5	2.2	81
0.75-1.5	24.2	5.0	6.1	6.4	5.1	3.8	5.7	8.5	2.0	0.7	2.4	122
2-3	25.2	5.0	5.9	7.0	5.7	3.8	6.9	8.5	2.5	0.7	3.0	185

ADJUSTABLE

Contact the LIGHTNIN Experts

Learn more about other high-performance mixers from UGHTN IN.

Visit our website at www.sxprocessecMpment.com.

Or call 1-888-MIX-BEST (U.Sand Canada), or +1(585) 436-5550 (Worldwide).

LIGHTNIN FVocess Equipment Services (LPES)

•Repair Services •Addtiona Services

•Equipment Services - Installation and Startup

•FM/FDM Services - Maintenance and Repair

- Asset Management

For 24-hour response, call 1-888-MIX-BEST (U.Sand Canada)

Other mixers available from LIGHTNIN:

B-772

B-906

B-913

LIGHTNIN

An SPX Process Equipment Operation

When it comes to mixing We never stop

135 Mt.Read Bvd Rochester, NY 14611 USA Telephone: 585-436-5550 Fax: 585-436-5589 www.spxprocessequipment.com

The trademark LIGHTNIN is owned by SPX Corporation

or its subsidiaries and is registered with the United States Patent Office.

B-799-L-08/05
