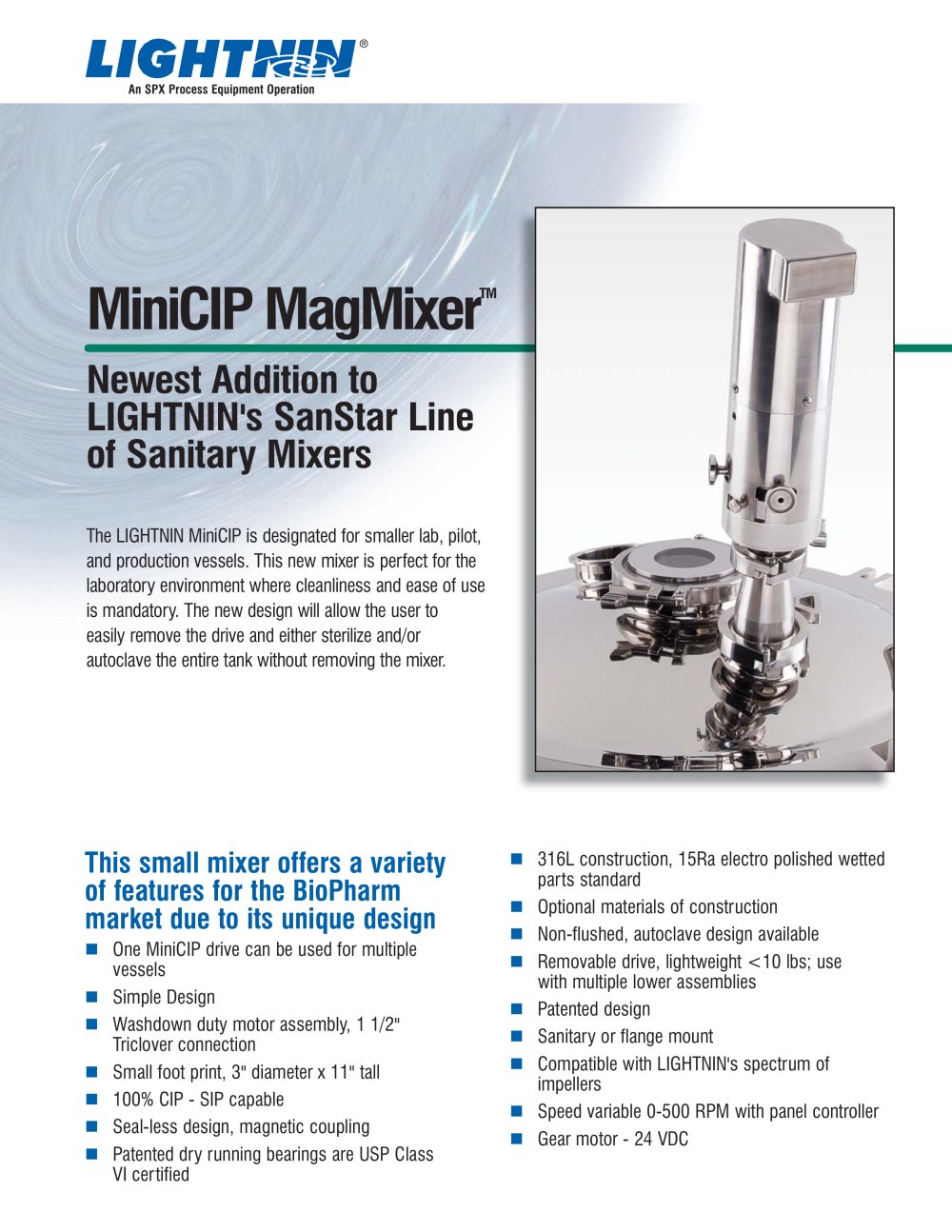

LIGHTNIN MiniCIP Mixer - 24564 MiniCIP MagMixer

TM

Newest Addition to LIGHTNIN's SanStar Line of Sanitary Mixers

The LIGHTNIN MiniCIP is designated for smaller lab, pilot, and production vessels. This new mixer is perfect for the laboratory environment where cleanliness and ease of use is mandatory. The new design will allow the user to easily remove the drive and either sterilize and/or autoclave the entire tank without removing the mixer.

This small mixer offers a variety of features for the BioPharm market due to its unique design

316L construction, 15Ra electro polished wetted parts standard Optional materials of construction Non-flushed, autoclave design available One MiniCIP drive can be used for multiple vessels Removable drive, lightweight <10 lbs; use with multiple lower assemblies Simple Design Patented design Washdown duty motor assembly, 1 1/2" Triclover connection Sanitary or flange mount Small foot print, 3" diameter x 11" tall Compatible with LIGHTNIN's spectrum of impellers 100% CIP - SIP capable Speed variable 0-500 RPM with panel controller Seal-less design, magnetic coupling Gear motor - 24 VDC Patented dry running bearings are USP Class VI certified
