| R | ||||||||||||||||||||||||||||||||||||

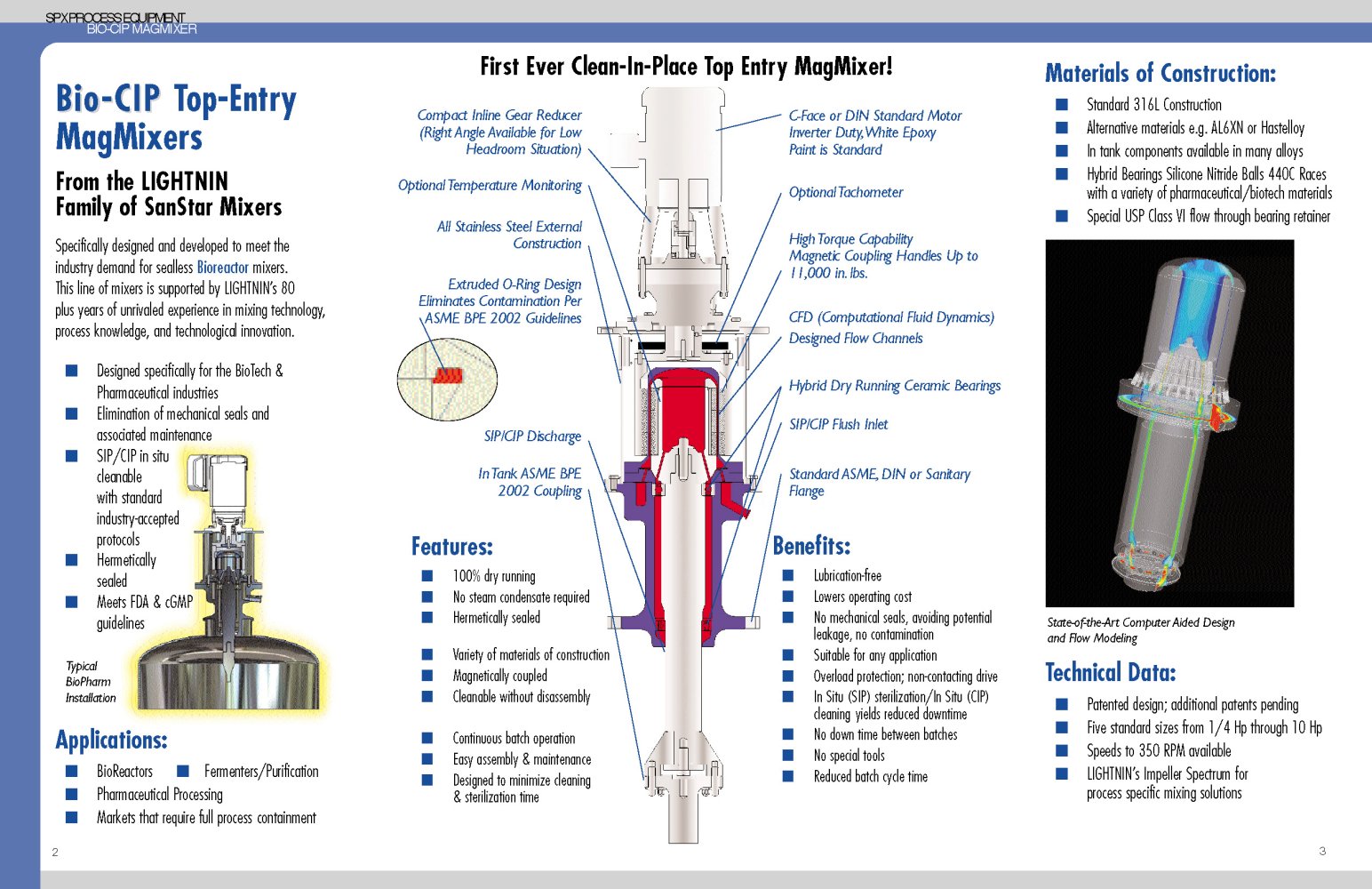

| First Ever (lean-ln-Place Top Entry MagMixer! | ||||||||||||||||||||||||||||||||||||
| Materials of Construction: ■ Standard 316L Construction ■ Alternative materials e.g. AL6XN or Hastelloy ■ In tank components available in many alloys ■ Hybrid Bearings Silicone Nitride Balls 440C Races with a variety of pharmaceuti'cal/biotech materials ■ Special USP Class VI flow through bearing retainer | ||||||||||||||||||||||||||||||||||||
| Bio-CIP Top-Entry MagMixers From the LIGHTNIN Family of SanStar Mixers Specifically designed and developed to meet the industry demand for sealless Bioreactor mixers. This line of mixers is supported by LIGHTNIN's 80 plus years of unrivaled experience in mixing technology, process knowledge, and technological innovation. ■ Designed specifically for the BioTech & Pharmaceutical industries ■ Elimination of mechanical seals and associated maintenance ■ SIP/CIP in situ cleanable with standard industry-accepted protocols ■ Hermetically sealed ■ Meets FDA guidelines | ||||||||||||||||||||||||||||||||||||
| Compact inline Gear Reducer (Right Angle Available for Low Headroom Situation) Optional Temperature Monitoring All Stainless Steel External Construction Extruded O-Ring Design Eliminates Contamination Per kASME SPŁ 2002 Guidelines | ||||||||||||||||||||||||||||||||||||
| C-Face or DIN Standard Motor inverter DuiyWhite Epoxy Paint is Standard | ||||||||||||||||||||||||||||||||||||
| Optional Tachometer | ||||||||||||||||||||||||||||||||||||
| High Torque Capability Magnett Coupling Handles Up to 11,000 in. lbs. | ||||||||||||||||||||||||||||||||||||
| CFD (Computational Fluid Dynamics) Designed Flow Channels Hybrid Dry Running Ceramic Bearings SiPIQP Flush inlet | ||||||||||||||||||||||||||||||||||||
| SiPIQP Discharge In Tank ASME ßPŁ 2002 Coupling | ||||||||||||||||||||||||||||||||||||
| Standard ASME, DIN or Sanitary Flange | ||||||||||||||||||||||||||||||||||||
| Benefits: | ||||||||||||||||||||||||||||||||||||
| Features: | ||||||||||||||||||||||||||||||||||||
| Lubrication-free Lowers operating cost No mechanical seals, avoiding potential leakage, no contamination Suitable for any application Overload protection; non-contacting drive In Situ (SIP) sterilization/In Situ (CIP) cleaning yields reduced downtime No down time between batches No special tools Reduced batch cycle time | ||||||||||||||||||||||||||||||||||||
| 100% dry running No steam condensate required Hermetically sealed | ||||||||||||||||||||||||||||||||||||
| State-of-the-Art Computer Aided Design and Flow Modeling Technical Data: ■ Patented design; additional patents pending ■ Five standard sizes from 1/4 Hp through 10 Hp ■ Speeds to 350 RPM available ■ LIGHTNIN's Impeller Spectrum for process specific mixing solutions | ||||||||||||||||||||||||||||||||||||
| Variety of materials of construction Magnetically coupled Cleanable without disassembly Continuous batch operation Easy assembly & maintenance Designed to minimize cleaning & sterilization time | ||||||||||||||||||||||||||||||||||||
| Typical BioPharm Installation | ||||||||||||||||||||||||||||||||||||
| Applications: ■ BioReactors ■ Ferm enters/Purification ■ Pharmaceutical Processing ■ Markets that require fall process containment | ||||||||||||||||||||||||||||||||||||
