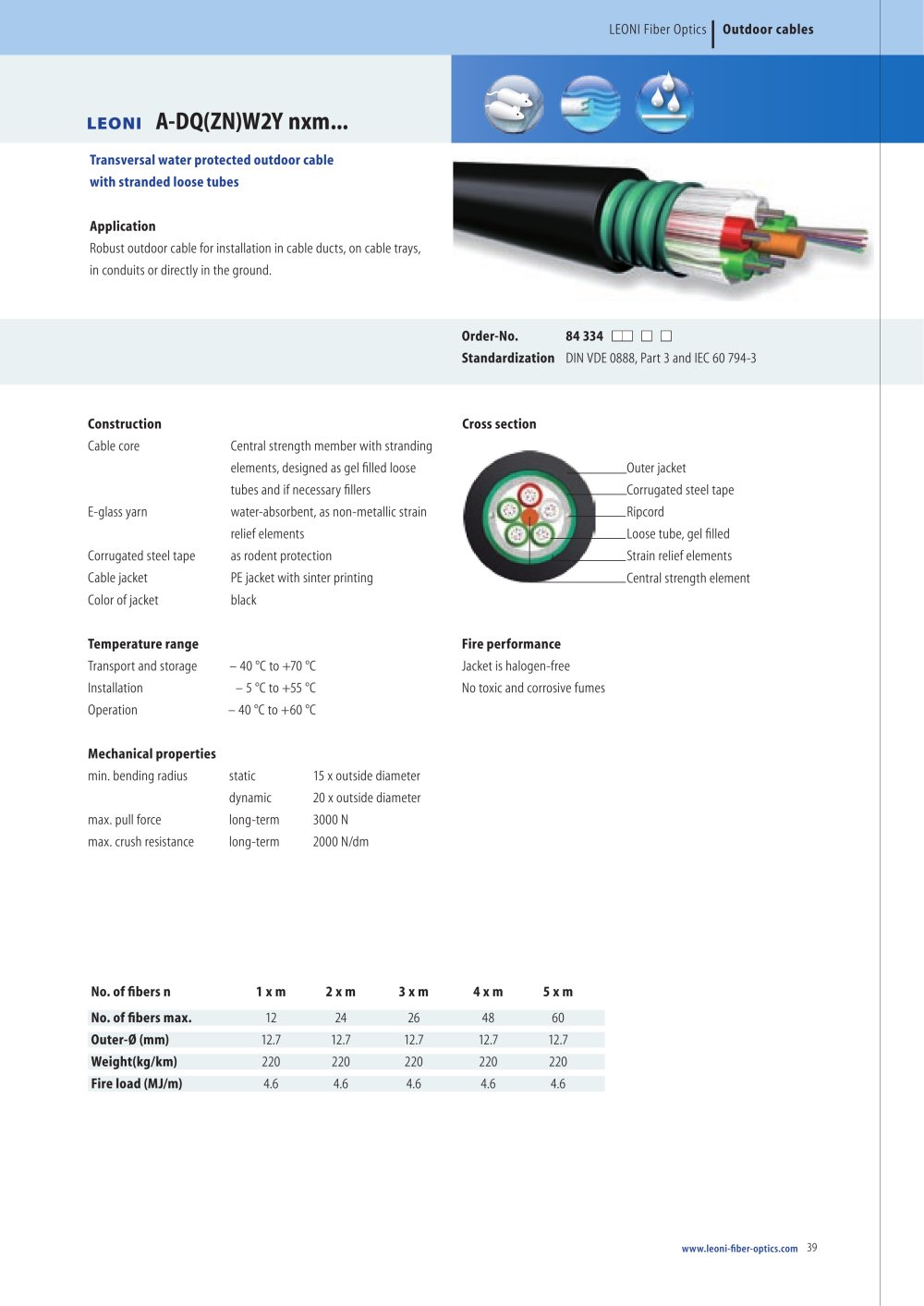

Outdoor cablesA-DQ(ZN)W2Y nxm...
Transversal water protected outdoor cable with stranded loose tubes Cross section Application Robust outdoor cable for installation in cable ducts, on cable trays, in conduits or directly in the ground. Outer jacketCorrugated steel tape Ripcord Loose tube, gel filled Strain relief elements Central strength element Order-No. 84 334â– â– â– â– Standardization DIN VDE 0888, Part 3 and IEC 60 794-3 Construction Cable core Central strength member with stranding elements, designed as gel filled loose tubes and if necessary fillers E-glass yarn water-absorbent, as non-metallic strain relief elements Corrugated steel tape as rodent protection Cable jacket PE jacket with sinter printingColor of jacket black Fire performance Jacket is halogen-free No toxic and corrosive fumes LEONI Fiber Optics Temperature range Transport and storage – 40 °C to +70 °C Installation – 5 °C to +55 °C Operation – 40 °C to +60 °C Mechanical properties min. bending radius static 15 x outside diameter dynamic 20 x outside diameter max. pull force long-term 3000 Nmax. crush resistance long-term 2000 N/dm No. of fibers n 1 x m 2 x m 3 x m 4 x m 5 x m No. of fibers max. 12 24 26 48 60 Outer-Ø (mm) 12.7 12.7 12.7 12.7 12.7 Weight(kg/km) 220 220 220 220 220 Fire load (MJ/m) 4.6 4.6 4.6 4.6 4.6
www.leoni-fiber-optics.com 39
