LEONI Fiber Optics
â– â– â– â– Construction Cable core Central strength member with stranding elements, designed as gel filled loose tubes and if necessary fillers E-glass yarn water-absorbent as non-metallic strain relief elements and as rodent protection Aluminium tape for transversal water resistance Cable jacket (yellow) halogen-free and flame-retardant material 15 x outside diameter dynamic 20 x outside diameter max. pull force long-term 3000 Nmax. crush resistance long-term 1500 N/dm No. of tubes n 1 x m 2 x m 3 x m 4 x m 5 x m 6 x m 8 x m 10 x m 12 x m ...Outer-Ø (mm) 12.1 12.1 12.1 12.1 12.1 13.0 14.4 15.9 17.7 Weight (kg/km) 200 200 200 200 200 215 245 270 325
â– â– â– â– Construction Cable core Central strength member with stranding elements, designed as gel filled loose tubes and if necessary fillers E-glass yarn water-absorbent as non-metallic strain relief elements and as rodent protection Corrugated steel tape as rodent protection Cable jacket (yellow) halogen-free and flame-retardant material 15 x outside diameter dynamic 20 x outside diameter max. pull force long-term 3000 Nmax. crush resistance long-term 2000 N/dm No. of tubes n 1 x m 2 x m 3 x m 4 x m 5 x m 6 x m 8 x m 10 x mOuter-Ø (mm) 12.7 12.7 12.7 12.7 12.7 16.5 16.5 16.5 Weight (kg/km) 220 220 220 220 220 305 305 305
www.leoni-fiber-optics.com 29
Fiber Optic Cables - 14158 |

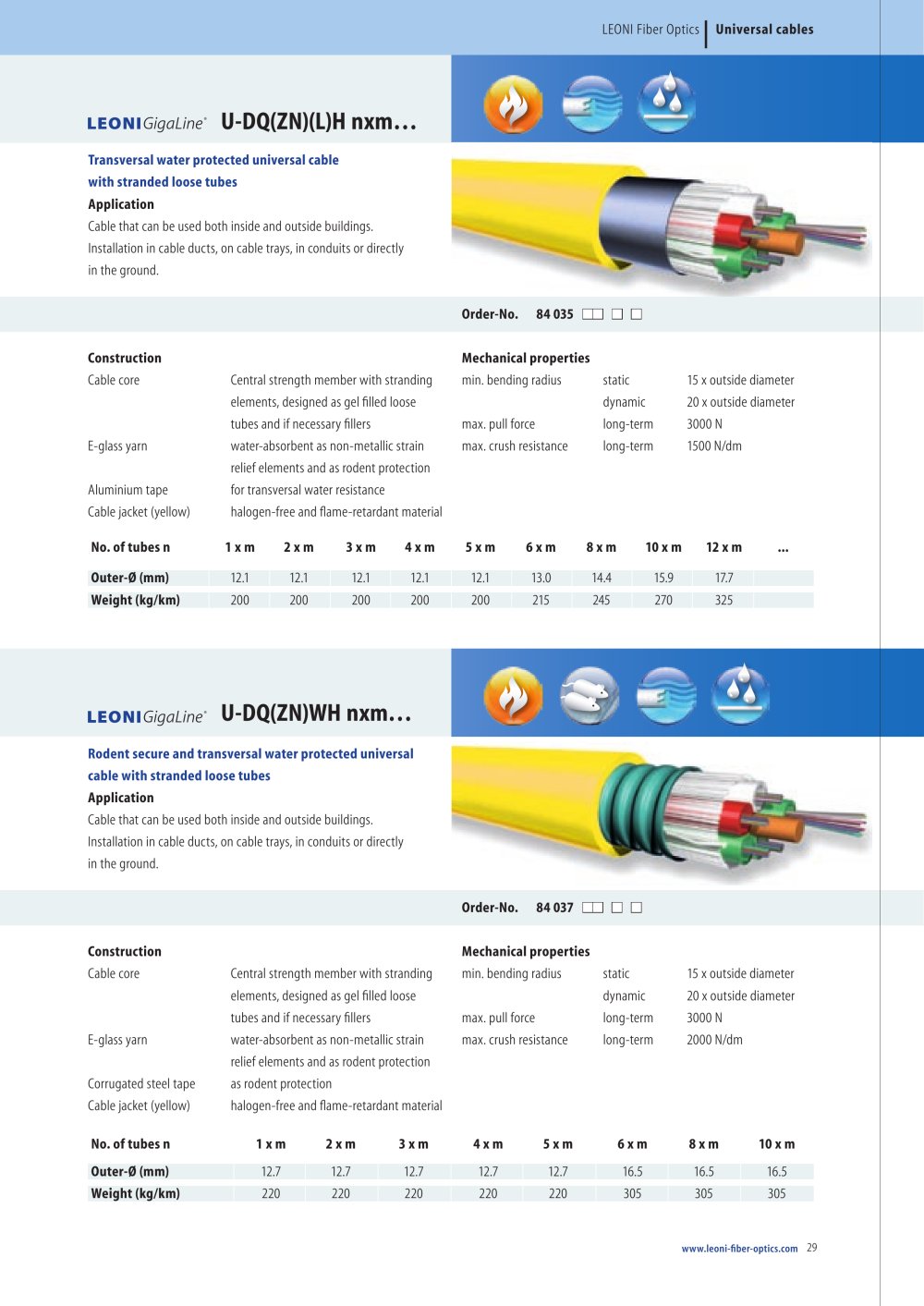

Universal cablesGigaLine
U-DQ(ZN)(L)H nxm…
Mechanical properties Transversal water protected universal cable with stranded loose tubes min. bending radius static Application Cable that can be used both inside and outside buildings. Installation in cable ducts, on cable trays, in conduits or directly in the ground. Order-No. 84 035â– â– â– â– Construction Cable core Central strength member with stranding elements, designed as gel filled loose tubes and if necessary fillers E-glass yarn water-absorbent as non-metallic strain relief elements and as rodent protection Aluminium tape for transversal water resistance Cable jacket (yellow) halogen-free and flame-retardant material 15 x outside diameter dynamic 20 x outside diameter max. pull force long-term 3000 Nmax. crush resistance long-term 1500 N/dm No. of tubes n 1 x m 2 x m 3 x m 4 x m 5 x m 6 x m 8 x m 10 x m 12 x m ...Outer-Ø (mm) 12.1 12.1 12.1 12.1 12.1 13.0 14.4 15.9 17.7 Weight (kg/km) 200 200 200 200 200 215 245 270 325
GigaLine
U-DQ(ZN)WH nxm…
Mechanical properties Rodent secure and transversal water protected universal cable with stranded loose tubes min. bending radius static Application Cable that can be used both inside and outside buildings. Installation in cable ducts, on cable trays, in conduits or directly in the ground. Order-No. 84 037â– â– â– â– Construction Cable core Central strength member with stranding elements, designed as gel filled loose tubes and if necessary fillers E-glass yarn water-absorbent as non-metallic strain relief elements and as rodent protection Corrugated steel tape as rodent protection Cable jacket (yellow) halogen-free and flame-retardant material 15 x outside diameter dynamic 20 x outside diameter max. pull force long-term 3000 Nmax. crush resistance long-term 2000 N/dm No. of tubes n 1 x m 2 x m 3 x m 4 x m 5 x m 6 x m 8 x m 10 x mOuter-Ø (mm) 12.7 12.7 12.7 12.7 12.7 16.5 16.5 16.5 Weight (kg/km) 220 220 220 220 220 305 305 305
www.leoni-fiber-optics.com 29
