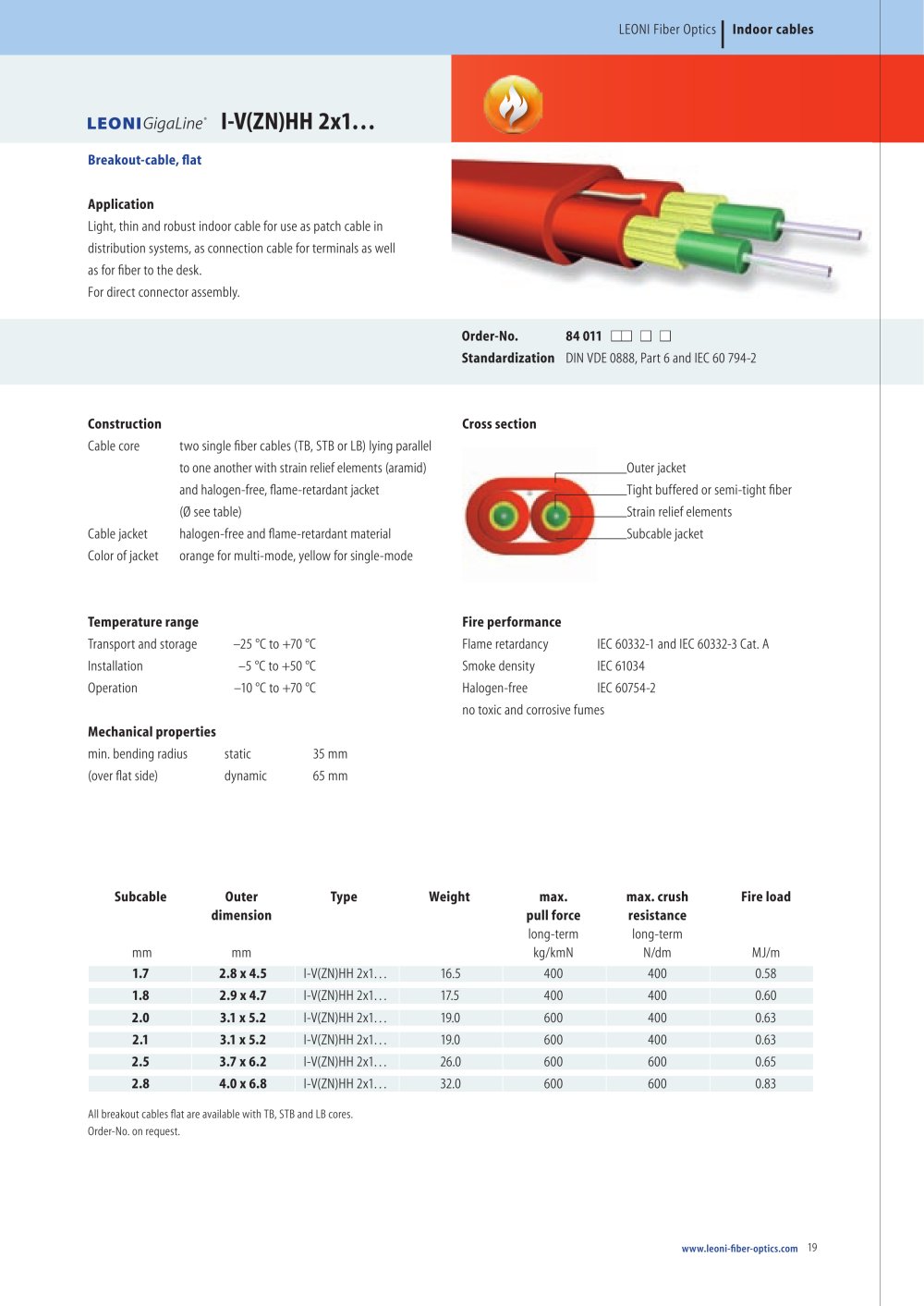

Cross section LEONI Fiber Optics
â– â– â– â– Temperature range Standardization DIN VDE 0888, Part 6 and IEC 60 794-2 Transport and storage –25 °C to +70 °C Installation –5 °C to +50 °C Operation –10 °C to +70 °C Construction Cable core two single fiber cables (TB, STB or LB) lying parallel to one another with strain relief elements (aramid) and halogen-free, flame-retardant jacket (Ø see table) Cable jacket halogen-free and flame-retardant material Color of jacket orange for multi-mode, yellow for single-mode Outer jacketTight buffered or semi-tight fiber Strain relief elements Subcable jacket Mechanical properties min. bending radius static 35 mm (over flat side) dynamic 65 mm Subcable Outer Type Weight max. max. crush Fire load dimension pull force resistance long-term long-term mm mm kg/kmN N/dm MJ/m 1.7 2.8 x 4.5 I-V(ZN)HH 2x1… 16.5 400 400 0.58 1.8 2.9 x 4.7 I-V(ZN)HH 2x1… 17.5 400 400 0.60 2.0 3.1 x 5.2 I-V(ZN)HH 2x1… 19.0 600 400 0.63 2.1 3.1 x 5.2 I-V(ZN)HH 2x1… 19.0 600 400 0.63 2.5 3.7 x 6.2 I-V(ZN)HH 2x1… 26.0 600 600 0.65 2.8 4.0 x 6.8 I-V(ZN)HH 2x1… 32.0 600 600 0.83
All breakout cables flat are available with TB, STB and LB cores. Order-No. on request. www.leoni-fiber-optics.com 19
Fiber Optic Cables - 14158 |
Indoor cablesGigaLine
I-V(ZN)HH 2x1…
Breakout-cable, flat Application Order-No. 84 011 Light, thin and robust indoor cable for use as patch cable in distribution systems, as connection cable for terminals as well as for fiber to the desk. For direct connector assembly. Fire performance Flame retardancy IEC 60332-1 and IEC 60332-3 Cat. A Smoke density IEC 61034 Halogen-free IEC 60754-2 no toxic and corrosive fumesâ– â– â– â– Temperature range Standardization DIN VDE 0888, Part 6 and IEC 60 794-2 Transport and storage –25 °C to +70 °C Installation –5 °C to +50 °C Operation –10 °C to +70 °C Construction Cable core two single fiber cables (TB, STB or LB) lying parallel to one another with strain relief elements (aramid) and halogen-free, flame-retardant jacket (Ø see table) Cable jacket halogen-free and flame-retardant material Color of jacket orange for multi-mode, yellow for single-mode Outer jacketTight buffered or semi-tight fiber Strain relief elements Subcable jacket Mechanical properties min. bending radius static 35 mm (over flat side) dynamic 65 mm Subcable Outer Type Weight max. max. crush Fire load dimension pull force resistance long-term long-term mm mm kg/kmN N/dm MJ/m 1.7 2.8 x 4.5 I-V(ZN)HH 2x1… 16.5 400 400 0.58 1.8 2.9 x 4.7 I-V(ZN)HH 2x1… 17.5 400 400 0.60 2.0 3.1 x 5.2 I-V(ZN)HH 2x1… 19.0 600 400 0.63 2.1 3.1 x 5.2 I-V(ZN)HH 2x1… 19.0 600 400 0.63 2.5 3.7 x 6.2 I-V(ZN)HH 2x1… 26.0 600 600 0.65 2.8 4.0 x 6.8 I-V(ZN)HH 2x1… 32.0 600 600 0.83
