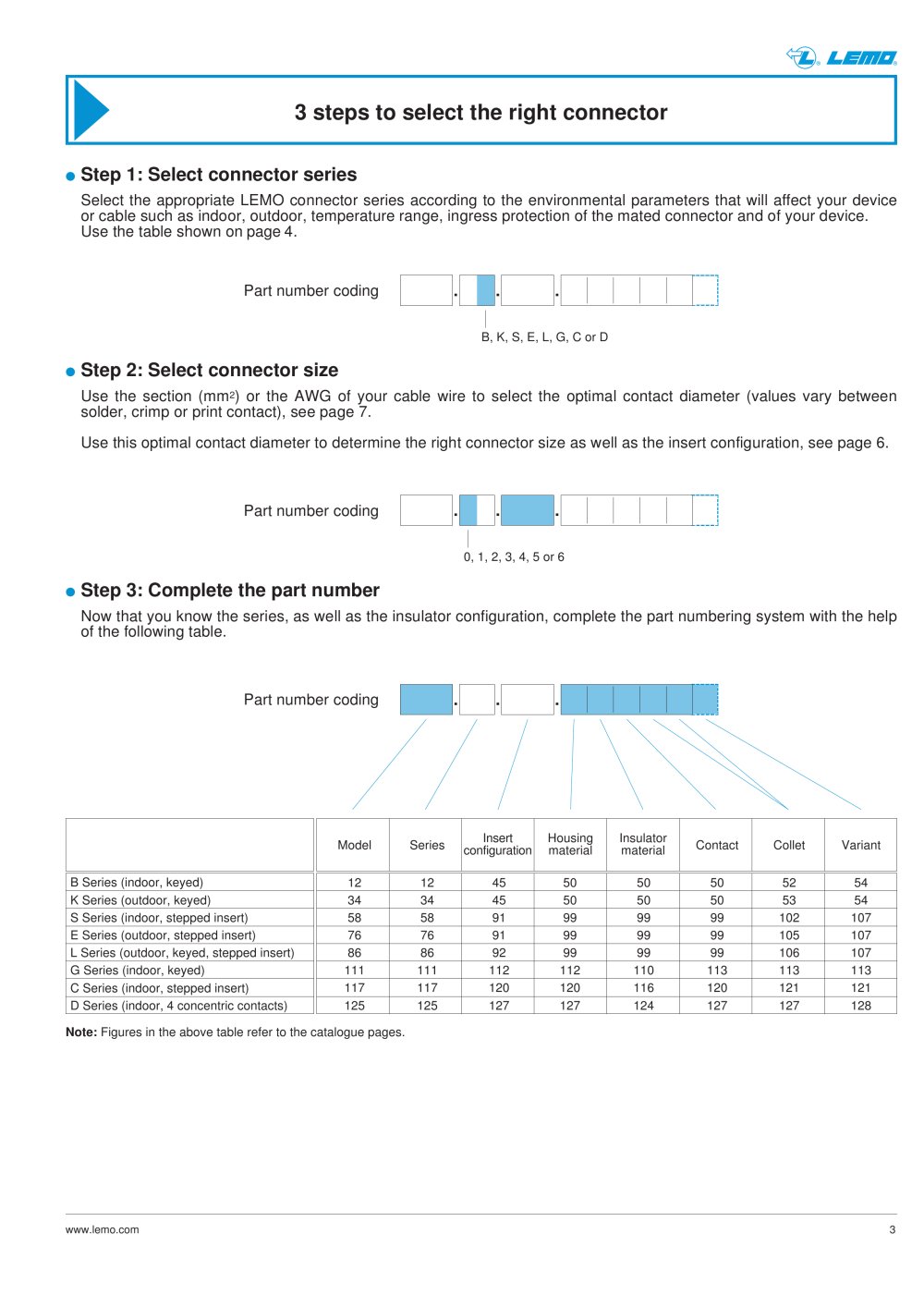

. . . . . . . . . www.lemo.com 3 ® ® l Step 1: Select connector series Select the appropriate LEMO connector series according to the environmental parameters that will affect your device or cable such as indoor, outdoor, temperature range, ingress protection of the mated connector and of your device. Use the table shown on page 4. Part number coding B, K, S, E, L, G, C or D l Step 2: Select connector size Use the section (mm2) or the AWG of your cable wire to select the optimal contact diameter (values vary between solder, crimp or print contact), see page 7. Use this optimal contact diameter to determine the right connector size as well as the insert configuration, see page 6. 0, 1, 2, 3, 4, 5 or 6 l Step 3: Complete the part number Now that you know the series, as well as the insulator configuration, complete the part numbering system with the help of the following table. Model Series Housing Contact Collet Variant material Insert configuration Insulator material 12 12 45 50 50 50 52 54 34 34 45 50 50 50 53 54 58 58 91 99 99 99 102 107 76 76 91 99 99 99 105 107 86 86 92 99 99 99 106 107 111 111 112 112 110 113 113 113 117 117 120 120 116 120 121 121 125 125 127 127 124 127 127 128 B Series (indoor, keyed) K Series (outdoor, keyed) S Series (indoor, stepped insert) E Series (outdoor, stepped insert) L Series (outdoor, keyed, stepped insert) G Series (indoor, keyed) C Series (indoor, stepped insert) D Series (indoor, 4 concentric contacts) 3 steps to select the right connector Note: Figures in the above table refer to the catalogue pages. Part number coding Part number coding
