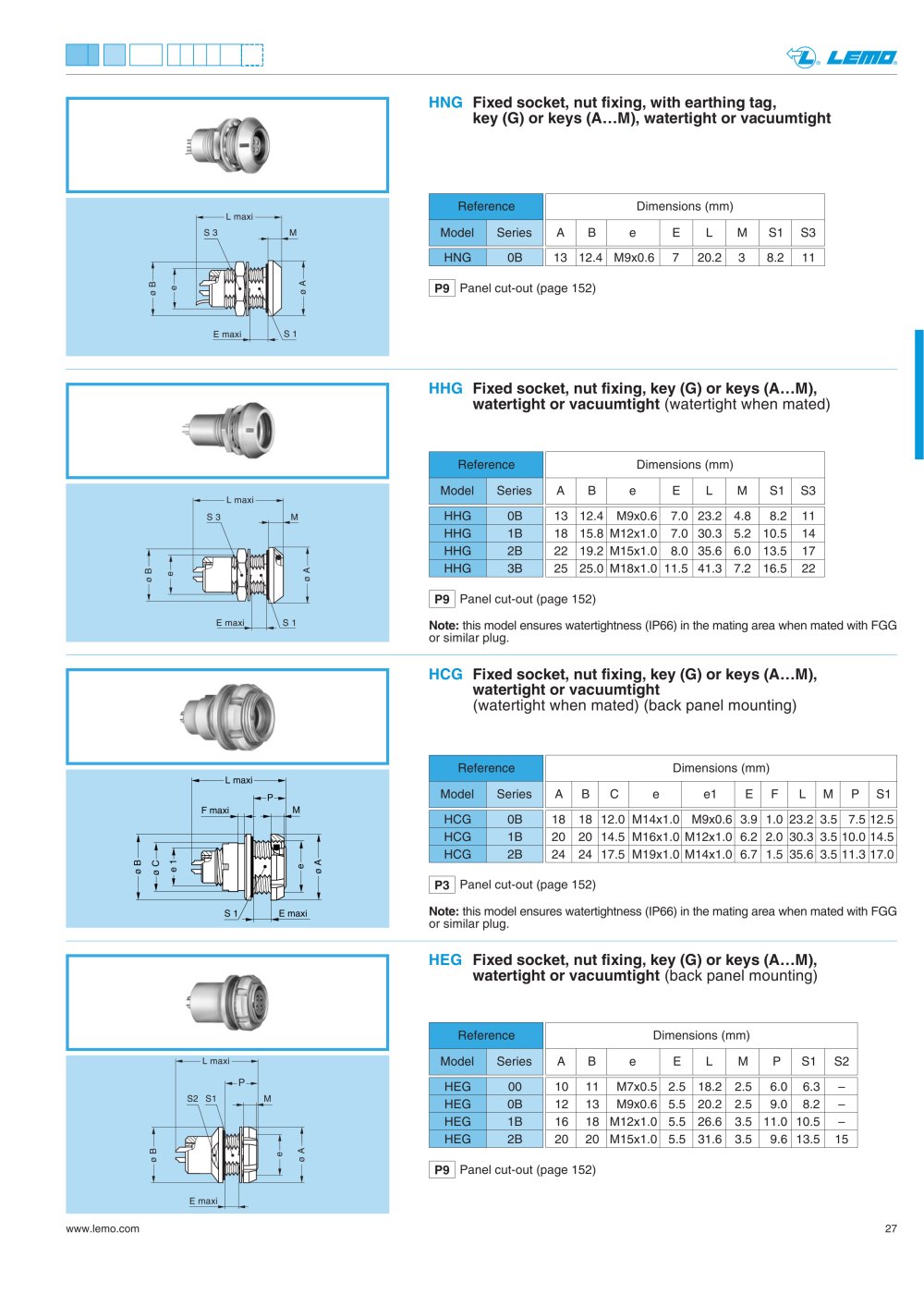

www.lemo.com 27 ® ® e ø B S 3 S 1 L maxi M E maxi ø A HNG Fixed socket, nut fixing, with earthing tag, key (G) or keys (A…M), watertight or vacuumtight Reference Model Series HNG 0B 13 12.4 M9x0.6 7 20.2 3 8.2 11 Dimensions (mm) A B e E L M S1 S3 P9 Panel cut-out (page 152) ø A e ø B S 3 S 1 L maxi M E maxi HHG Fixed socket, nut fixing, key (G) or keys (A…M), watertight or vacuumtight (watertight when mated) Reference Model Series HHG 0B HHG 1B HHG 2B HHG 3B 13 12.4 M9x0.6 7.0 23.2 4.8 8.2 11 18 15.8 M12x1.0 7.0 30.3 5.2 10.5 14 22 19.2 M15x1.0 8.0 35.6 6.0 13.5 17 25 25.0 M18x1.0 11.5 41.3 7.2 16.5 22 Dimensions (mm) A B e E L M S1 S3 ø A e 1 ø B L maxi M P F maxi S 1 E maxi e ø C HCG Fixed socket, nut fixing, key (G) or keys (A…M), watertight or vacuumtight (watertight when mated) (back panel mounting) Reference Model Series HCG 0B HCG 1B HCG 2B 18 18 12.0 M14x1.0 M9x0.6 3.9 1.0 23.2 3.5 7.5 12.5 20 20 14.5 M16x1.0 M12x1.0 6.2 2.0 30.3 3.5 10.0 14.5 24 24 17.5 M19x1.0 M14x1.0 6.7 1.5 35.6 3.5 11.3 17.0 Dimensions (mm) A B C e e1 E F L M P S1 P9 Panel cut-out (page 152) P3 Panel cut-out (page 152) ø A e ø B S2 S1 L maxi M E maxi P HEG Fixed socket, nut fixing, key (G) or keys (A…M), watertight or vacuumtight (back panel mounting) Reference Model Series HEG 00 HEG 0B HEG 1B HEG 2B P9 Panel cut-out (page 152) 10 11 M7x0.5 2.5 18.2 2.5 6.0 6.3 – 12 13 M9x0.6 5.5 20.2 2.5 9.0 8.2 – 16 18 M12x1.0 5.5 26.6 3.5 11.0 10.5 – 20 20 M15x1.0 5.5 31.6 3.5 9.6 13.5 15 Dimensions (mm) A B e E L M P S1 S2 Note: this model ensures watertightness (IP66) in the mating area when mated with FGG or similar plug. Note: this model ensures watertightness (IP66) in the mating area when mated with FGG or similar plug.
