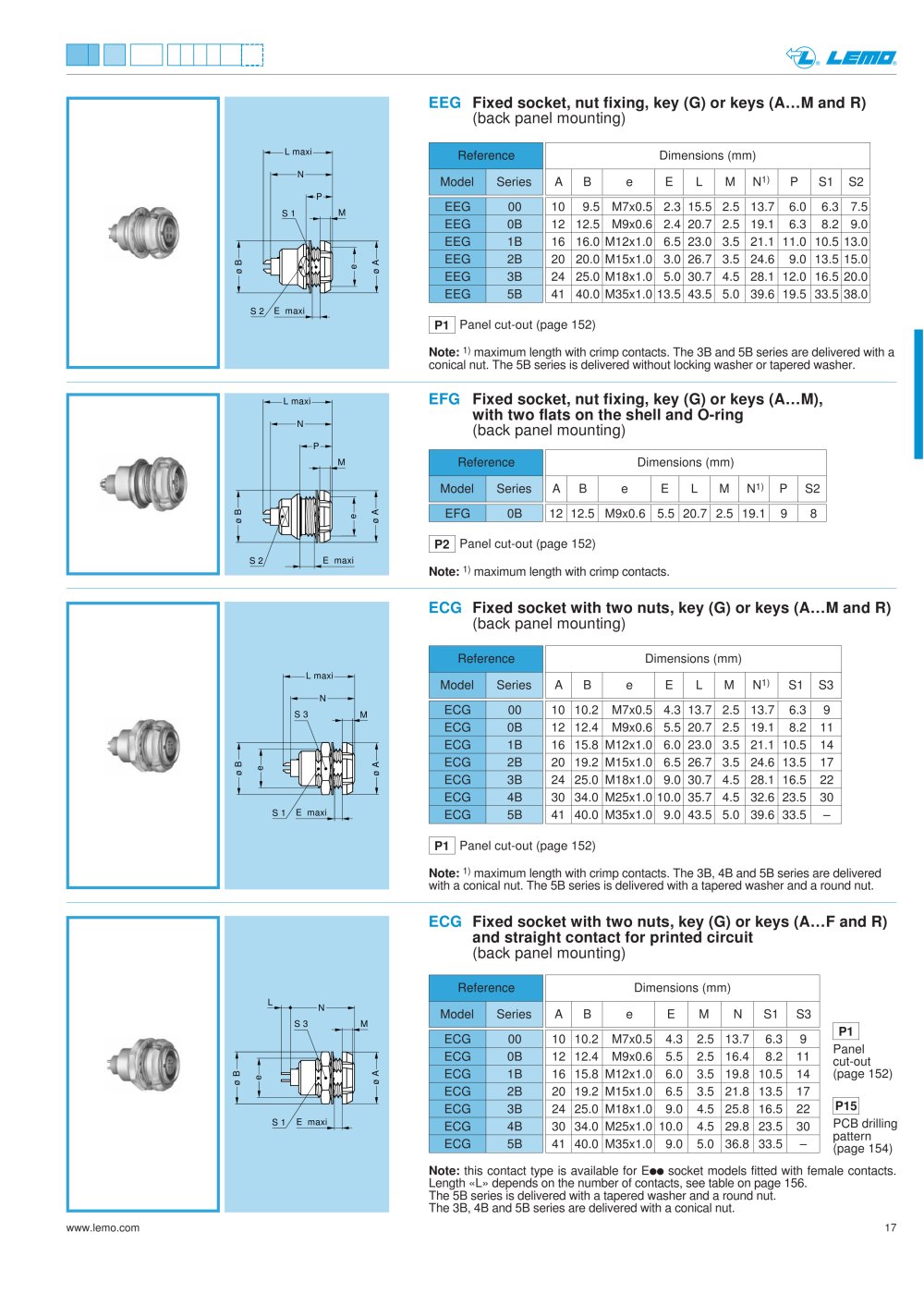

www.lemo.com 17 ® ® ø A e ø B S 1 N P M L maxi S 2 E maxi EEG Fixed socket, nut fixing, key (G) or keys (A…M and R) (back panel mounting) Reference Model Series EEG 00 EEG 0B EEG 1B EEG 2B EEG 3B EEG 5B 10 9.5 M7x0.5 2.3 15.5 2.5 13.7 6.0 6.3 7.5 12 12.5 M9x0.6 2.4 20.7 2.5 19.1 6.3 8.2 9.0 16 16.0 M12x1.0 6.5 23.0 3.5 21.1 11.0 10.5 13.0 20 20.0 M15x1.0 3.0 26.7 3.5 24.6 9.0 13.5 15.0 24 25.0 M18x1.0 5.0 30.7 4.5 28.1 12.0 16.5 20.0 41 40.0 M35x1.0 13.5 43.5 5.0 39.6 19.5 33.5 38.0 Dimensions (mm) A B e E L M N1) P S1 S2 Note: 1) maximum length with crimp contacts. The 3B and 5B series are delivered with a conical nut. The 5B series is delivered without locking washer or tapered washer. P1 Panel cut-out (page 152) Reference Model Series ECG 00 ECG 0B ECG 1B ECG 2B ECG 3B ECG 4B ECG 5B ø A e ø B S 3 N M L maxi S 1 E maxi ECG Fixed socket with two nuts, key (G) or keys (A…M and R) (back panel mounting) 10 10.2 M7x0.5 4.3 13.7 2.5 13.7 6.3 9 12 12.4 M9x0.6 5.5 20.7 2.5 19.1 8.2 11 16 15.8 M12x1.0 6.0 23.0 3.5 21.1 10.5 14 20 19.2 M15x1.0 6.5 26.7 3.5 24.6 13.5 17 24 25.0 M18x1.0 9.0 30.7 4.5 28.1 16.5 22 30 34.0 M25x1.0 10.0 35.7 4.5 32.6 23.5 30 41 40.0 M35x1.0 9.0 43.5 5.0 39.6 33.5 – Dimensions (mm) A B e E L M N1) S1 S3 P15 PCB drilling pattern (page 154) Reference Model Series ECG 00 ECG 0B ECG 1B ECG 2B ECG 3B ECG 4B ECG 5B ø A e ø B S 3 N L M S 1 E maxi ECG Fixed socket with two nuts, key (G) or keys (A…F and R) and straight contact for printed circuit (back panel mounting) 10 10.2 M7x0.5 4.3 2.5 13.7 6.3 9 12 12.4 M9x0.6 5.5 2.5 16.4 8.2 11 16 15.8 M12x1.0 6.0 3.5 19.8 10.5 14 20 19.2 M15x1.0 6.5 3.5 21.8 13.5 17 24 25.0 M18x1.0 9.0 4.5 25.8 16.5 22 30 34.0 M25x1.0 10.0 4.5 29.8 23.5 30 41 40.0 M35x1.0 9.0 5.0 36.8 33.5 – Dimensions (mm) A B e E M N S1 S3 Note: this contact type is available for Ell socket models fitted with female contacts. Length «L» depends on the number of contacts, see table on page 156. The 5B series is delivered with a tapered washer and a round nut. The 3B, 4B and 5B series are delivered with a conical nut. Note: 1) maximum length with crimp contacts. The 3B, 4B and 5B series are delivered with a conical nut. The 5B series is delivered with a tapered washer and a round nut. ø A e ø B N P M L maxi S 2 E maxi EFG Fixed socket, nut fixing, key (G) or keys (A…M), with two flats on the shell and O-ring (back panel mounting) 12 12.5 M9x0.6 5.5 20.7 2.5 19.1 9 8 Reference Model Series EFG 0B Dimensions (mm) A B e E L M N1) P S2 P2 Panel cut-out (page 152) P1 Panel cut-out (page 152) Note: 1) maximum length with crimp contacts. P1 Panel cut-out (page 152)
