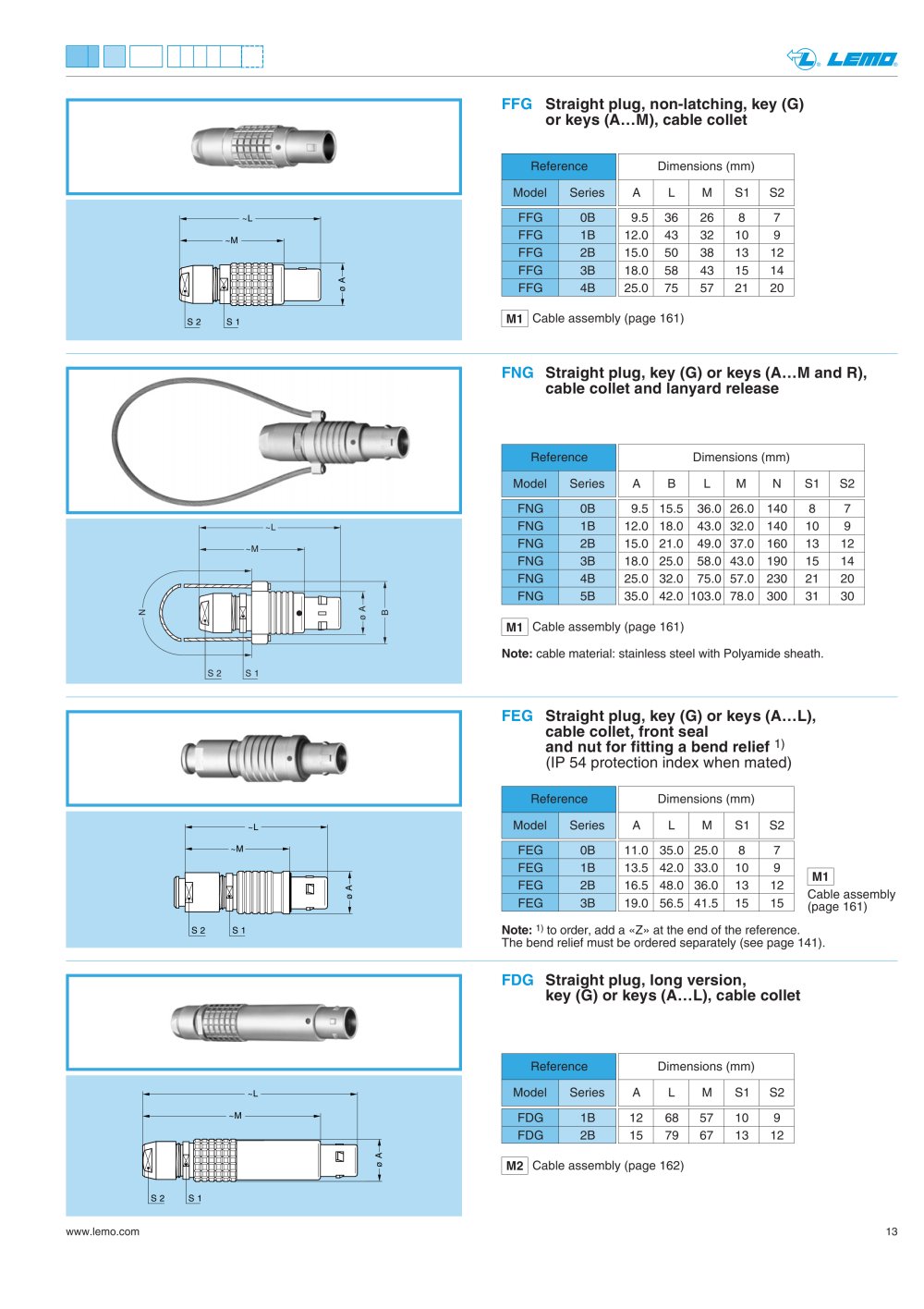

www.lemo.com 13 ® ® ~M ~L ø A S 2 S 1 FFG Straight plug, non-latching, key (G) or keys (A…M), cable collet 9.5 36 26 8 7 12.0 43 32 10 9 15.0 50 38 13 12 18.0 58 43 15 14 25.0 75 57 21 20 Reference Model Series Dimensions (mm) A L M S1 S2 FFG 0B FFG 1B FFG 2B FFG 3B FFG 4B ~M ~L ø A B S 2 S 1 N S 2 ~M ~L S 1 ø A FEG Straight plug, key (G) or keys (A…L), cable collet, front seal and nut for fitting a bend relief 1) (IP 54 protection index when mated) FNG Straight plug, key (G) or keys (A…M and R), cable collet and lanyard release 9.5 15.5 36.0 26.0 140 8 7 12.0 18.0 43.0 32.0 140 10 9 15.0 21.0 49.0 37.0 160 13 12 18.0 25.0 58.0 43.0 190 15 14 25.0 32.0 75.0 57.0 230 21 20 35.0 42.0 103.0 78.0 300 31 30 Reference Model Series Dimensions (mm) A B L M N S1 S2 FNG 0B FNG 1B FNG 2B FNG 3B FNG 4B FNG 5B 11.0 35.0 25.0 8 7 13.5 42.0 33.0 10 9 16.5 48.0 36.0 13 12 19.0 56.5 41.5 15 15 Reference Model Series Dimensions (mm) A L M S1 S2 FEG 0B FEG 1B FEG 2B FEG 3B ~M ~L ø A S 2 S 1 FDG Straight plug, long version, key (G) or keys (A…L), cable collet 12 68 57 10 9 15 79 67 13 12 Reference Model Series Dimensions (mm) A L M S1 S2 FDG 1B FDG 2B Note: cable material: stainless steel with Polyamide sheath. Note: 1) to order, add a «Z» at the end of the reference. The bend relief must be ordered separately (see page 141). M1 Cable assembly (page 161) M1 Cable assembly (page 161) M1 Cable assembly (page 161) M2 Cable assembly (page 162)
