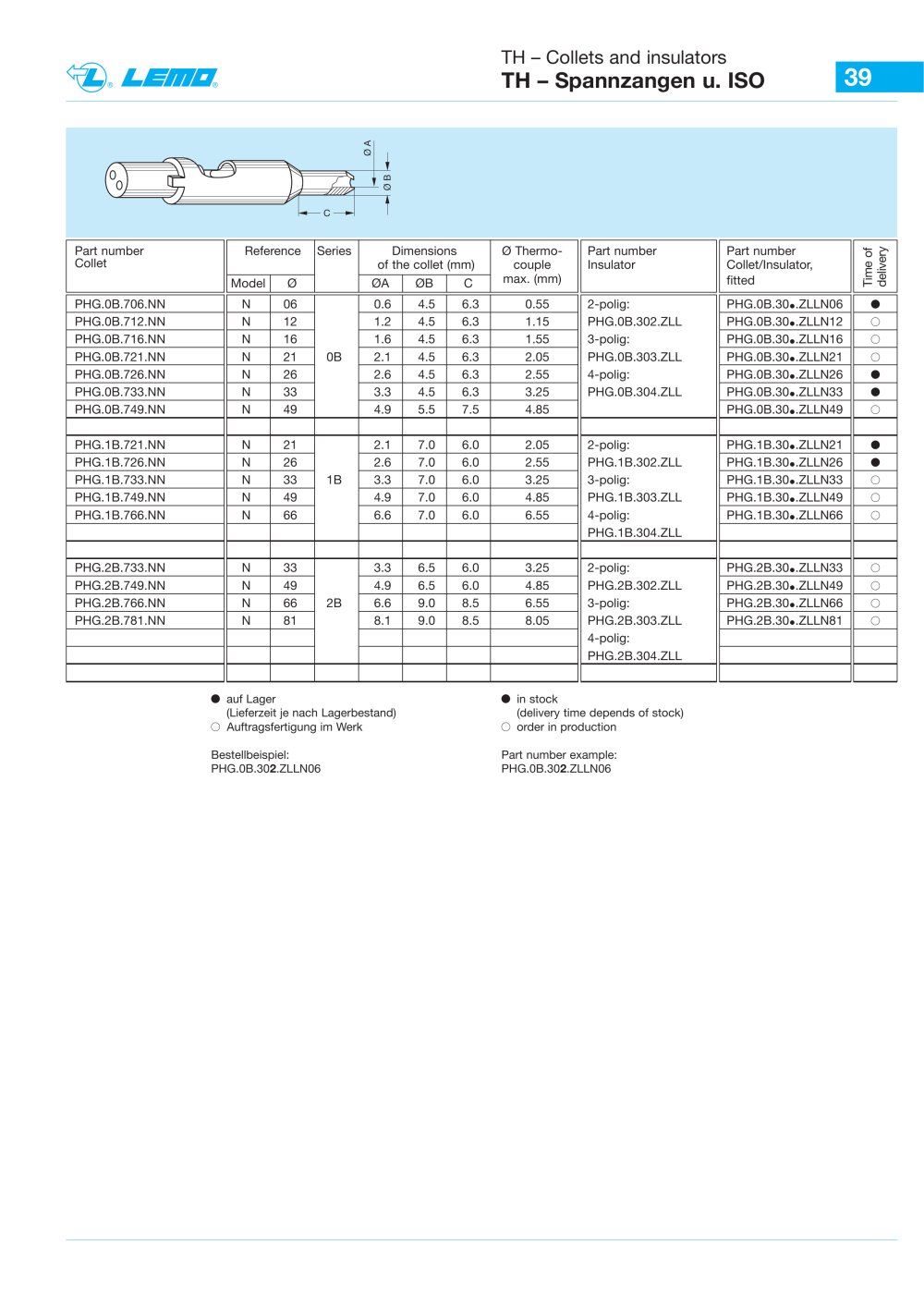

TH - Collets and insulators TH - Spannzangen u. ISO

l LEma


Part number Collet	Reference		Series	Dimensions of the collet (mm)			0 Thermocouple max. (mm)	Part number Insulator	Part number Collet/Insulator, fitted	Time of delivery
Part number Collet	Model 0		Series	0A 0B 1 C			0 Thermocouple max. (mm)	Part number Insulator	Part number Collet/Insulator, fitted	Time of delivery
PHG.0B.706.NN	N	06	0B	0.6	4.5	6.3	0.55	2-polig: PHG.0B.302.ZLL 3-polig: PHG.0B.303.ZLL 4-polig: PHG.0B.304.ZLL	PHG.0B.30..ZLLN06	•
PHG.0B.712.NN	N	12		1.2	4.5	6.3	1.15		PHG.0B.30..ZLLN12	O
PHG.0B.716.NN	N	16		1.6	4.5	6.3	1.55		PHG.0B.30..ZLLN16	O
PHG.0B.721.NN	N	21		2.1	4.5	6.3	2.05		PHG.0B.30..ZLLN21	O
PHG.0B.726.NN	N	26		2.6	4.5	6.3	2.55		PHG.0B.30..ZLLN26	•
PHG.0B.733.NN	N	33		3.3	4.5	6.3	3.25		PHG.0B.30..ZLLN33	•
PHG.0B.749.NN	N	49		4.9	5.5	7.5	4.85		PHG.0B.30..ZLLN49	O

PHG.1B.721.NN	N	21	1B	2.1	7.0	6.0	2.05	2-polig: PHG.1B.302.ZLL 3-polig: PHG.1B.303.ZLL 4-polig: PHG.1B.304.ZLL	PHG.1B.30..ZLLN21	•
PHG.1B.726.NN	N	26		2.6	7.0	6.0	2.55		PHG.1B.30..ZLLN26	•
PHG.1B.733.NN	N	33		3.3	7.0	6.0	3.25		PHG.1B.30..ZLLN33	O
PHG.1B.749.NN	N	49		4.9	7.0	6.0	4.85		PHG.1B.30..ZLLN49	O
PHG.1B.766.NN	N	66		6.6	7.0	6.0	6.55		PHG.1B.30..ZLLN66	O


PHG.2B.733.NN	N	33	2B	3.3	6.5	6.0	3.25	2-polig: PHG.2B.302.ZLL 3-polig: PHG.2B.303.ZLL 4-polig: PHG.2B.304.ZLL	PHG.2B.30..ZLLN33	O
PHG.2B.749.NN	N	49		4.9	6.5	6.0	4.85		PHG.2B.30..ZLLN49	O
PHG.2B.766.NN	N	66		6.6	9.0	8.5	6.55		PHG.2B.30..ZLLN66	O
PHG.2B.781.NN	N	81		8.1	9.0	8.5	8.05		PHG.2B.30..ZLLN81	O

• auf Lager • in stock

(Lieferzeit je nach Lagerbestand) (delivery time depends of stock)

O Auftragsfertigung im Werk O order in production

Bestellbeispiel: PHG.0B.302.ZLLN06

Part number example:

PHG.0B.302.ZLLN06
