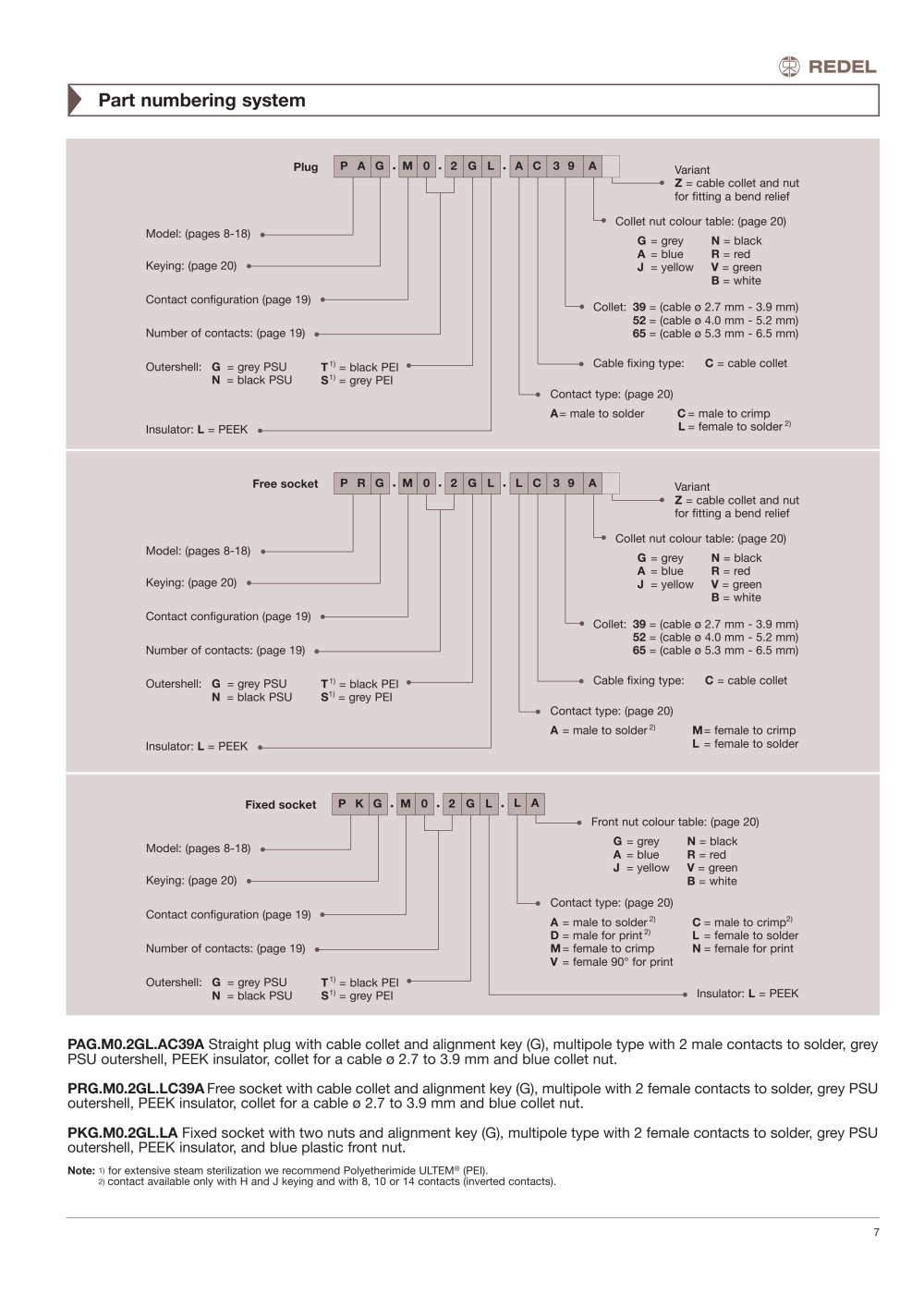

7 Plug P A G M 0 2 G L A C 3 9 A Model: (pages 8-18) Keying: (page 20) Variant Z = cable collet and nut for fitting a bend relief Cable fixing type: C = cable collet Contact type: (page 20) A= male to solder C= male to crimp L = female to solder 2) Collet nut colour table: (page 20) G = grey N = black A = blue R = red J = yellow V = green B = white Insulator: L = PEEK Outershell: Number of contacts: (page 19) Collet: 39 = (cable ø 2.7 mm - 3.9 mm) 52 = (cable ø 4.0 mm - 5.2 mm) 65 = (cable ø 5.3 mm - 6.5 mm) Contact configuration (page 19) Part numbering system PAG.M0.2GL.AC39A Straight plug with cable collet and alignment key (G), multipole type with 2 male contacts to solder, grey PSU outershell, PEEK insulator, collet for a cable ø 2.7 to 3.9 mm and blue collet nut. PRG.M0.2GL.LC39A Free socket with cable collet and alignment key (G), multipole with 2 female contacts to solder, grey PSU outershell, PEEK insulator, collet for a cable ø 2.7 to 3.9 mm and blue collet nut. PKG.M0.2GL.LA Fixed socket with two nuts and alignment key (G), multipole type with 2 female contacts to solder, grey PSU outershell, PEEK insulator, and blue plastic front nut. Note: 1) for extensive steam sterilization we recommend Polyetherimide ULTEM® (PEI). 2) contact available only with H and J keying and with 8, 10 or 14 contacts (inverted contacts). . . . G = grey PSU N = black PSU T1) = black PEI S1) = grey PEI Fixed socket P K G M 0 2 G L L A Model: (pages 8-18) Keying: (page 20) Front nut colour table: (page 20) G = grey N = black A = blue R = red J = yellow V = green B = white Contact type: (page 20) A = male to solder 2) C = male to crimp2) D = male for print 2) L = female to solder M= female to crimp N = female for print V = female 90° for print Insulator: L = PEEK Outershell: Number of contacts: (page 19) Contact configuration (page 19) . . . G = grey PSU N = black PSU T1) = black PEI S1) = grey PEI Free socket P R G M 0 2 G L L C 3 9 A Model: (pages 8-18) Keying: (page 20) Variant Z = cable collet and nut for fitting a bend relief Cable fixing type: C = cable collet Contact type: (page 20) A = male to solder 2) M= female to crimp L = female to solder Collet nut colour table: (page 20) G = grey N = black A = blue R = red J = yellow V = green B = white Insulator: L = PEEK Outershell: Number of contacts: (page 19) Collet: 39 = (cable ø 2.7 mm - 3.9 mm) 52 = (cable ø 4.0 mm - 5.2 mm) 65 = (cable ø 5.3 mm - 6.5 mm) Contact configuration (page 19) . . . G = grey PSU N = black PSU T1) = black PEI S1) = grey PEI
