Text version of the page
1 2 3
4 5 6 7
4 5 6 7
L
T
Crimp
Crimp
Configuration
M02
M03
M04, M05, M06, M07
M08, M10, M12
M16, M19
17.0 5.5
17.0 5.5
15.0 4.0
15.0 4.0
15.0 4.0
Dimensions (mm)
L T
2. Slide the collet nut . and then the collet . onto the cable.
1. Strip the cable according to the lengths given in the
table.
4. Now arrange contact-conductor combinations according to
the insert marking and locate them into the insert .. Check
that all contacts are correctly located and remain in position
when given a gentle pull.
For PSU only:
We recommend ONLY the use of VTCS-6 Clear Vibra-tite or
ThreeBond 1401 to secure the connector backnut. The use of
other materials could result in damage to the connector.
The only recommended chemical cleaner is Isopropyl Alcohol.

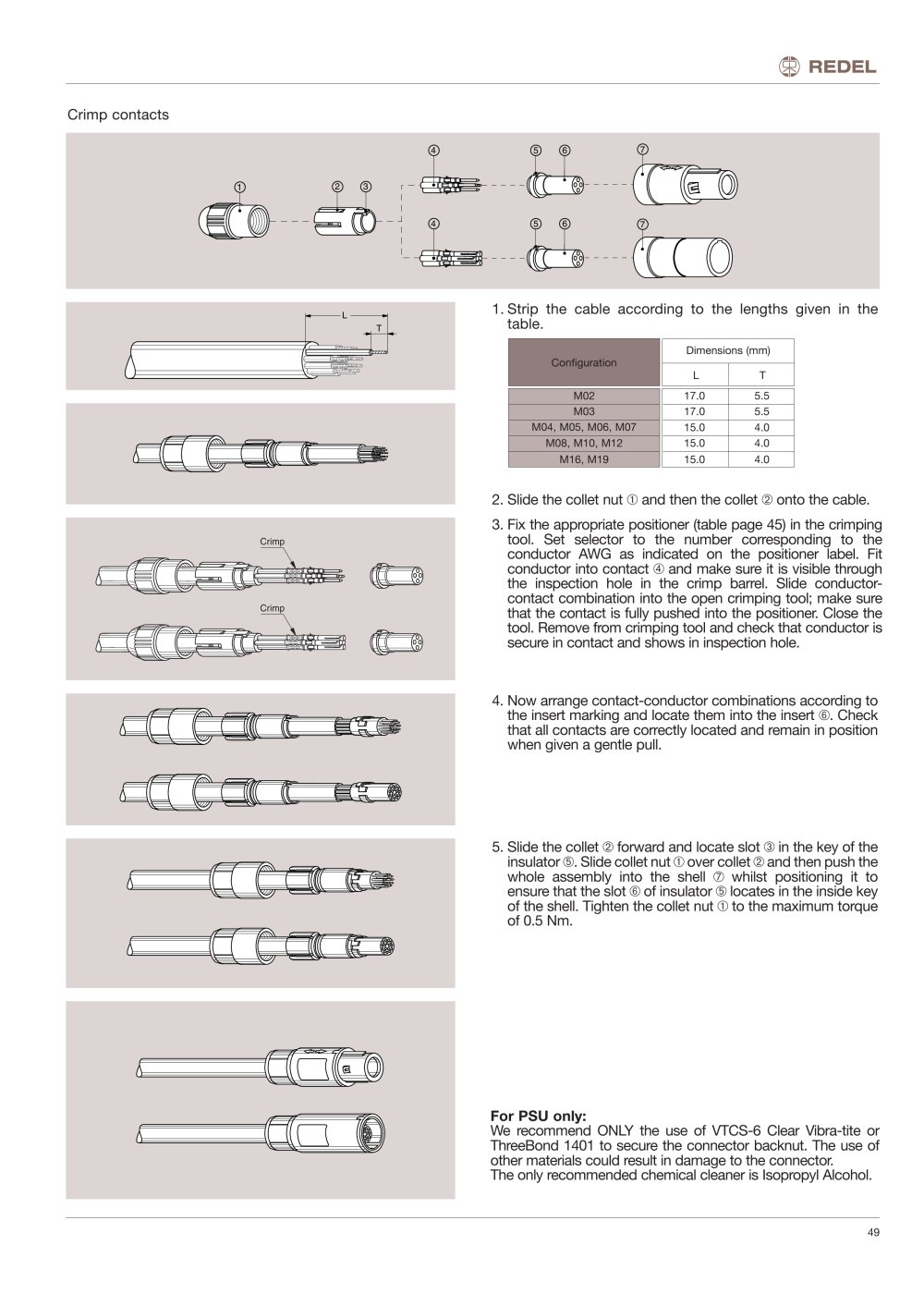

Crimp contacts
3. Fix the appropriate positioner (table page 45) in the crimping
tool. Set selector to the number corresponding to the
conductor AWG as indicated on the positioner label. Fit
conductor into contact . and make sure it is visible through
the inspection hole in the crimp barrel. Slide conductorcontact
combination into the open crimping tool; make sure
that the contact is fully pushed into the positioner. Close the
tool. Remove from crimping tool and check that conductor is
secure in contact and shows in inspection hole.
5. Slide the collet . forward and locate slot . in the key of the
insulator.. Slide collet nut.over collet.and then push the
whole assembly into the shell . whilst positioning it to
ensure that the slot .of insulator .locates in the inside key
of the shell. Tighten the collet nut . to the maximum torque
of 0.5 Nm.
49
