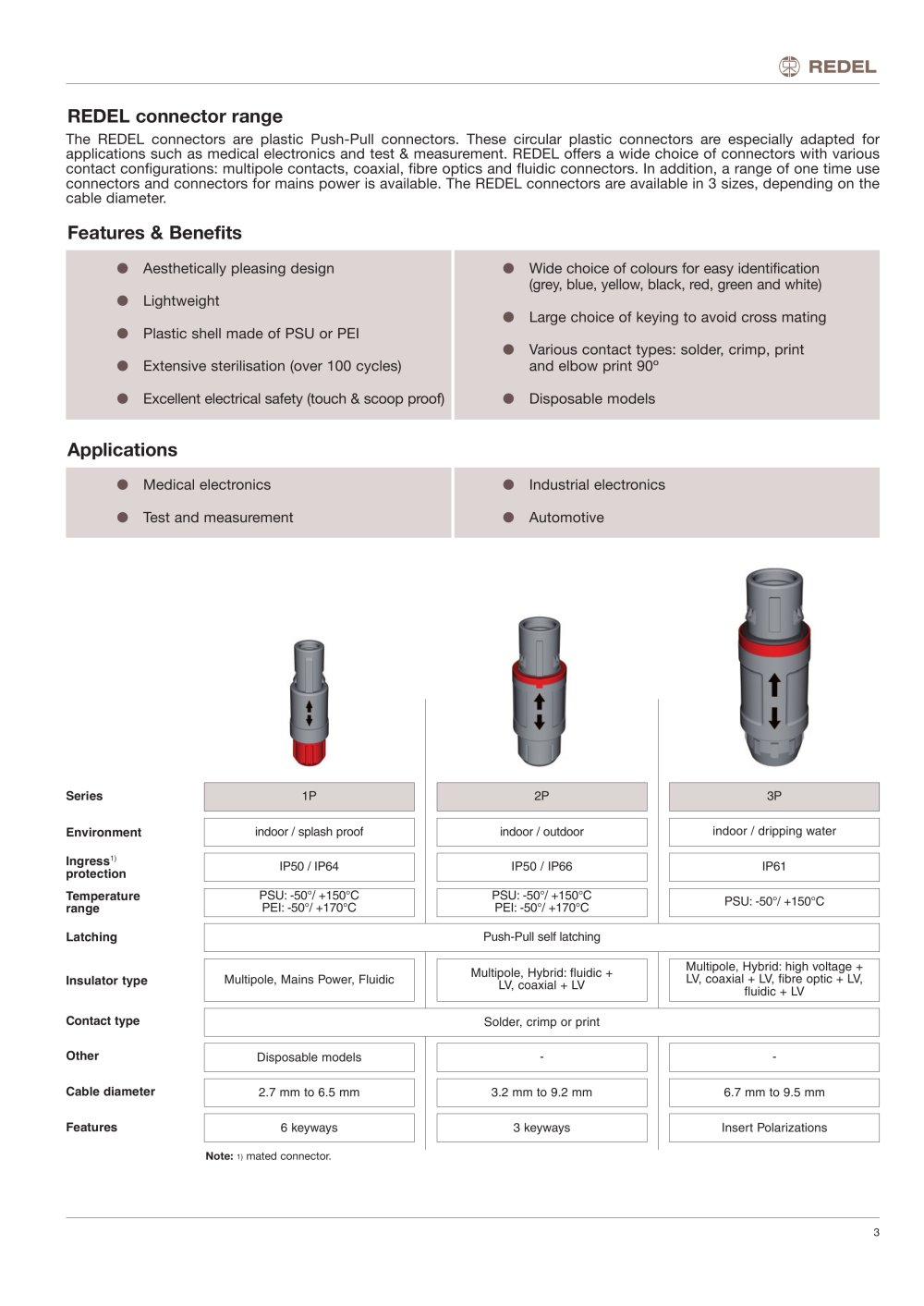

The REDEL connectors are plastic Push-Pull connectors. These circular plastic connectors are especially adapted for applications such as medical electronics and test & measurement. REDEL offers a wide choice of connectors with various contact configurations: multipole contacts, coaxial, fibre optics and fluidic connectors. In addition, a range of one time use connectors and connectors for mains power is available. The REDEL connectors are available in 3 sizes, depending on the cable diameter. �œ Medical electronics �œ Test and measurement �œ Industrial electronics �œ Automotive �œ Aesthetically pleasing design �œ Lightweight �œ Plastic shell made of PSU or PEI �œ Extensive sterilisation (over 100 cycles) �œ Excellent electrical safety (touch & scoop proof) �œ Wide choice of colours for easy identification (grey, blue, yellow, black, red, green and white) �œ Large choice of keying to avoid cross mating �œ Various contact types: solder, crimp, print and elbow print 90º �œ Disposable models 3 REDEL connector range Features & Benefits Applications Series Environment Ingress1) protection Temperature range Latching Insulator type Contact type Other Cable diameter Features 1P 2P 3P Multipole, Mains Power, Fluidic Multipole, Hybrid: fluidic + LV, coaxial + LV Multipole, Hybrid: high voltage + LV, coaxial + LV, fibre optic + LV, fluidic + LV Solder, crimp or print 6 keyways 3 keyways Insert Polarizations indoor / splash proof indoor / dripping water IP50 / IP64 IP50 / IP66 IP61 PSU: -50°/ +150°C PEI: -50°/ +170°C Push-Pull self latching PSU: -50°/ +150°C PEI: -50°/ +170°C PSU: -50°/ +150°C 2.7 mm to 6.5 mm 3.2 mm to 9.2 mm indoor / outdoor Disposable models - - 6.7 mm to 9.5 mm Note: 1) mated connector.
